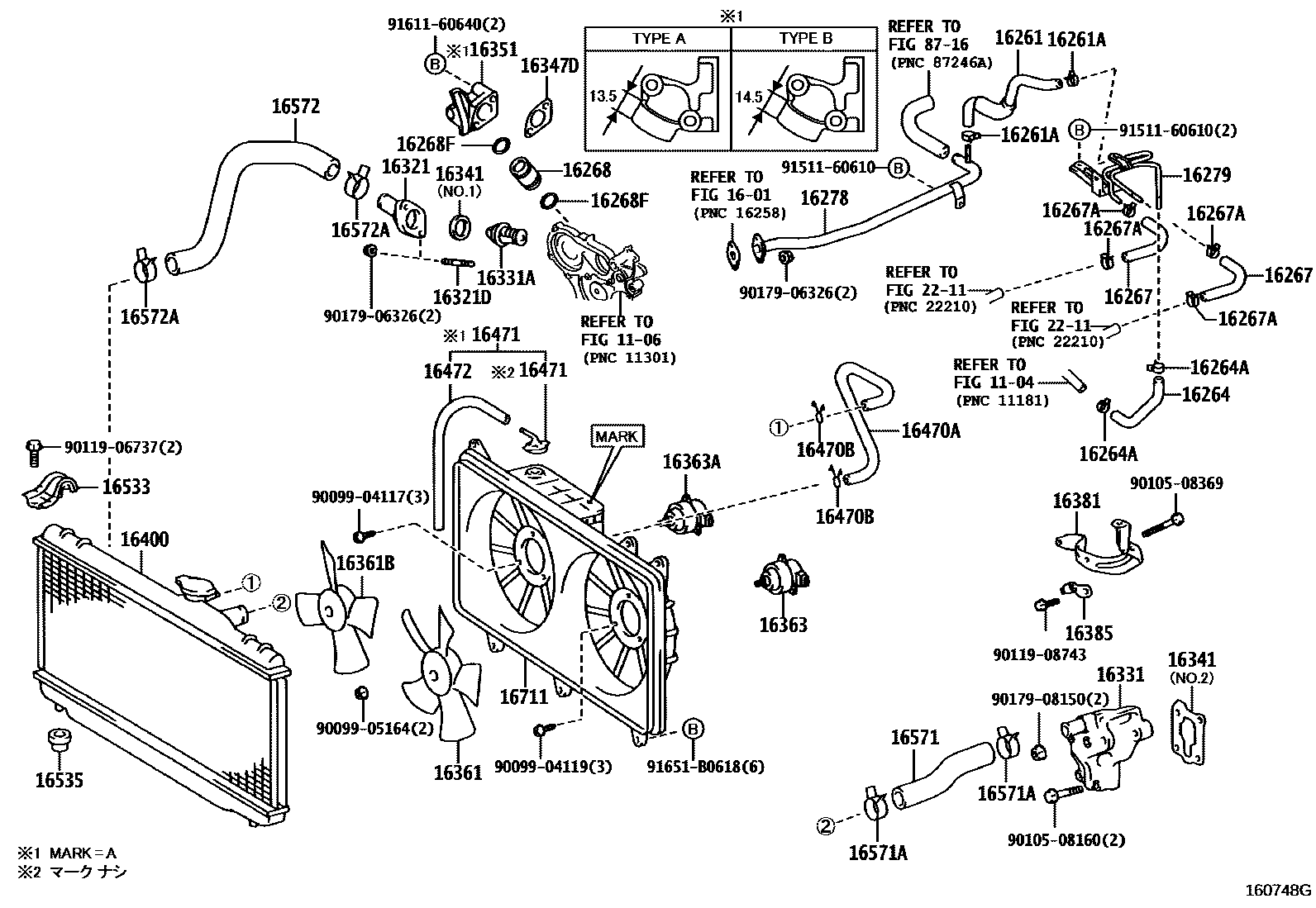

RADIATOR & WATER OUTLET
1104CYLINDER HEAD
1106TIMING GEAR COVER & REAR END PLATE
1601WATER PUMP
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16321INLET, WATER
16321DBOLT, STUD(FOR WATER INLET)
16331OUTLET, WATER
16331ATHERMOSTAT
16341GASKET, WATER OUTLET
16347DGASKET, WATER BY-PASS
16351OUTLET, WATER BY-PASS
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16381BAR, FAN BELT ADJUSTING
16385SLIDER, FAN BELT ADJUSTING
16400RADIATOR ASSY
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16711SHROUD, FAN
2211FUEL INJECTION SYSTEM
8716HEATING & AIR CONDITIONING - WATER PIPING
9009904117
main90099-04117
9009904119
main90099-04119
9009905164
main90099-05164
9010508160
main90105-08160
9010508369
main90105-08369
9011906737
main90119-06737
9011908743
main90119-08743
9017906326
main90179-06326
9017908150
main90179-08150
9151160610
main91511-60610
9161160640
main91611-60640
91651B0618
main91651-B0618
53 parts on this diagram · 9 diagrams in section
