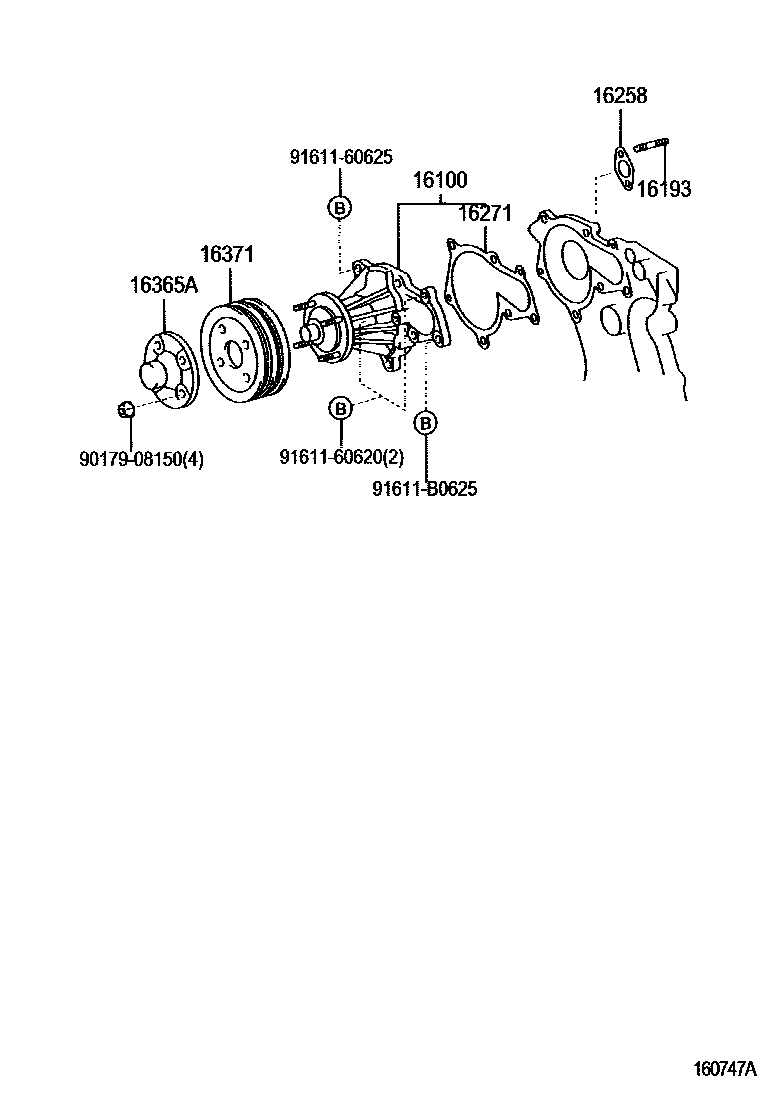

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-49876i2JZGE..JCE1#200106-200507

main16100-79225i3SGE..SXE10200105-200507

main16100-79285i1GFE..GXE1#200105-200507

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010×2i1GFE..GXE10199810-200105

main16193-46030×2i2JZGE..JCE1#200106

main90029-01500×2i3SGE..SXE10200105

16258GASKET(FOR HEATER RETURN)

main16258-70020i1GFE..GXE10199810-200105

main16258-88460i3SGE..SXE10199810-200105

16271GASKET, WATER PUMP

main16124-70041i1GFE..GXE1#199810

16365ASPACER, FAN

main16365-70010i1GFE..GXE10199810-200105

16371PULLEY, FAN

main16371-46040i2JZGE..JCE1#200106

main16371-70060i1GFE..GXE10199810-200105

9017908150

main90179-08150

9161160620

main91611-60620

9161160625

main91611-60625

91611B0625

main91611-B0625

10 parts on this diagram · 3 diagrams in section
