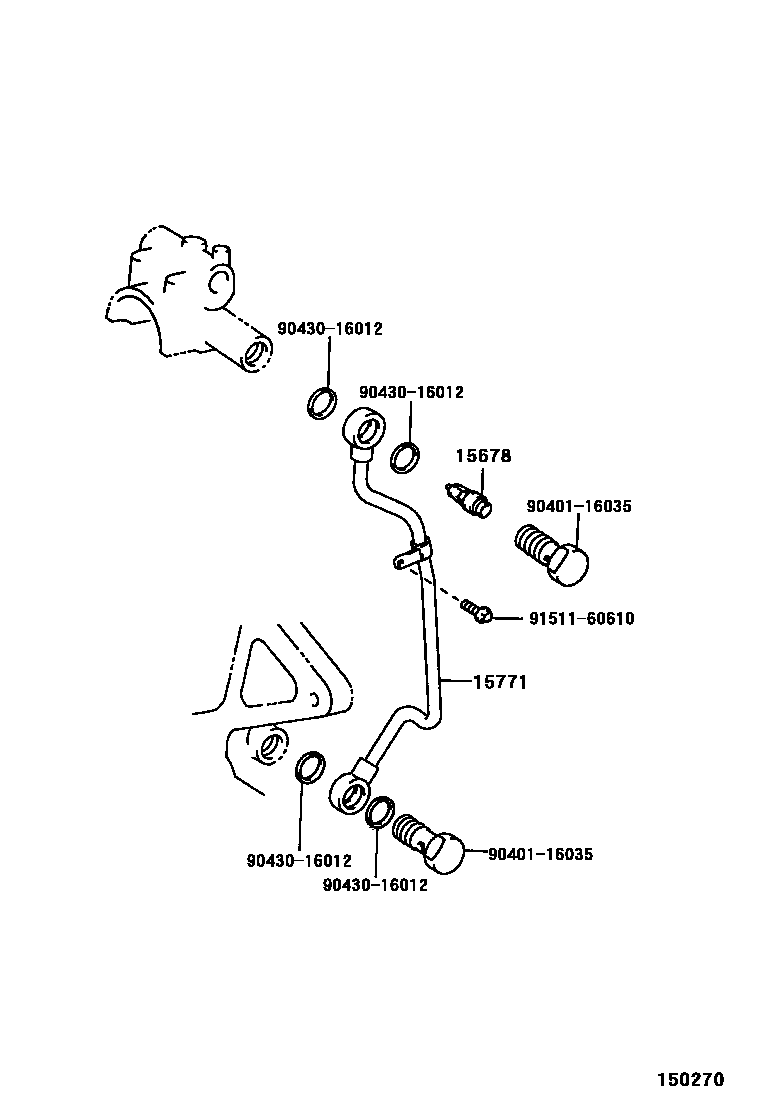

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15678FILTER, OIL CONTROL VALVE

main15678-46010i1GFE..GXE10199810-200004

main15678-46020i1GFE..GXE10200004-200105

15771PIPE, OIL, NO.1

main15771-46010i2JZGE..JCE1#200106

main15771-70010i1GFE..GXE10199810-200105

9040116035

main90401-16035

9043016012

main90430-16012

9151160610

main91511-60610

5 parts on this diagram · 3 diagrams in section
