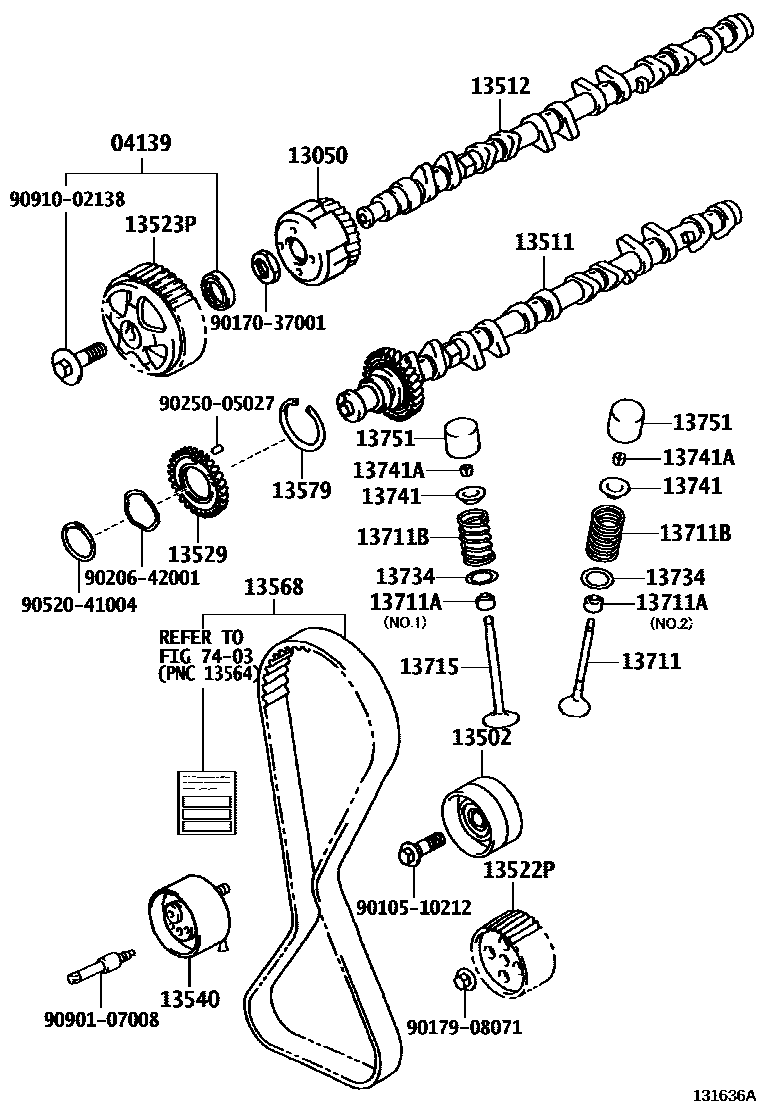

CAMSHAFT & VALVE
04139BOLT KIT, CAMSHAFT TIMING PULLEY
13050GEAR ASSY, CAMSHAFT TIMING
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13511CAMSHAFT
13512CAMSHAFT, NO.2
13522PPULLEY, PUMP DRIVE SHAFT
13523PPULLEY, CAMSHAFT TIMING
13529GEAR, CAMSHAFT SUB
13540TENSIONER ASSY, CHAIN, NO.1
13568BELT, TIMING
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
7403CAUTION PLATE (EXTERIOR & INTERIOR)
9010510212
main90105-10212
9017037001
main90170-37001
9017908071
main90179-08071
9020642001
main90206-42001
9025005027
main90250-05027
9052041004
main90520-41004
9090107008
main90901-07008
9091002138
main90910-02138
28 parts on this diagram · 3 diagrams in section
