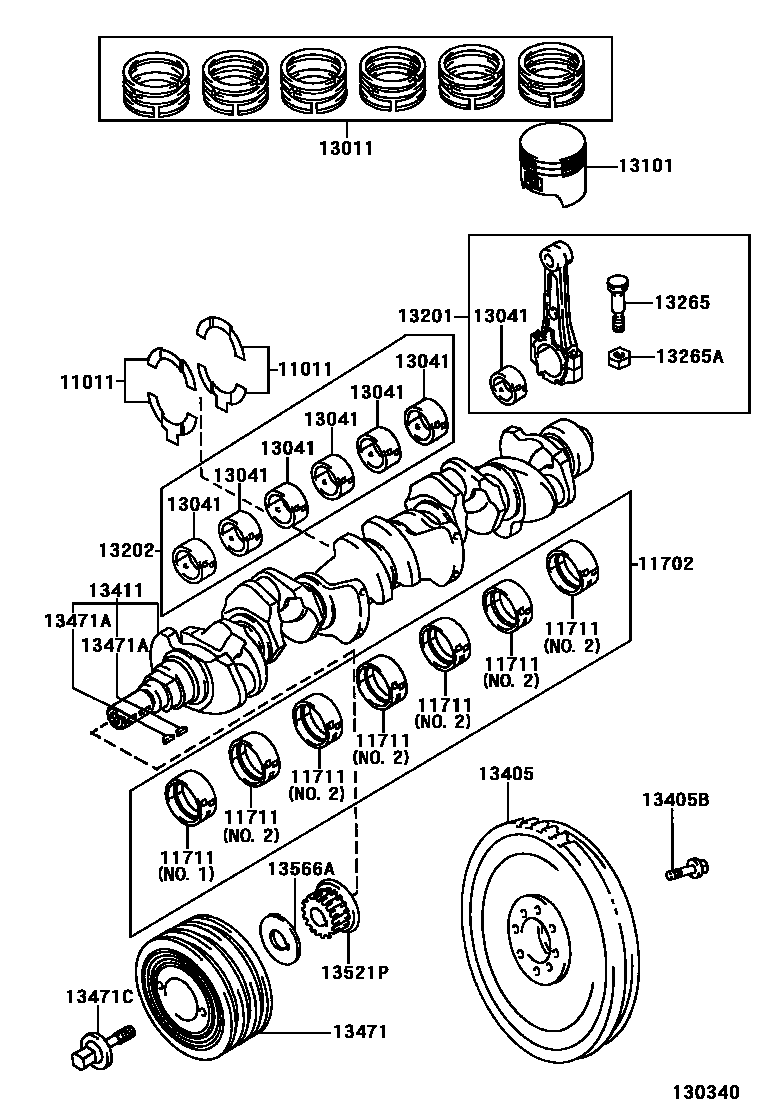

Toyota ALTEZZA/ALTEZZA GITA242 — CRANKSHAFT & PISTON
13101PISTON SUB-ASSY, W/PIN
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
13405BBOLT, FLYWHEEL SETTING
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521PPULLEY, CRANKSHAFT TIMING
13566AGUIDE, TIMING BELT
18 parts on this diagram · 3 diagrams in section
CRANKSHAFT & PISTON for Toyota ALTEZZA/ALTEZZA GITA242
This section contains 22 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota ALTEZZA/ALTEZZA GITA242. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, RING SET, PISTON, BEARING, CONNECTING ROD.
