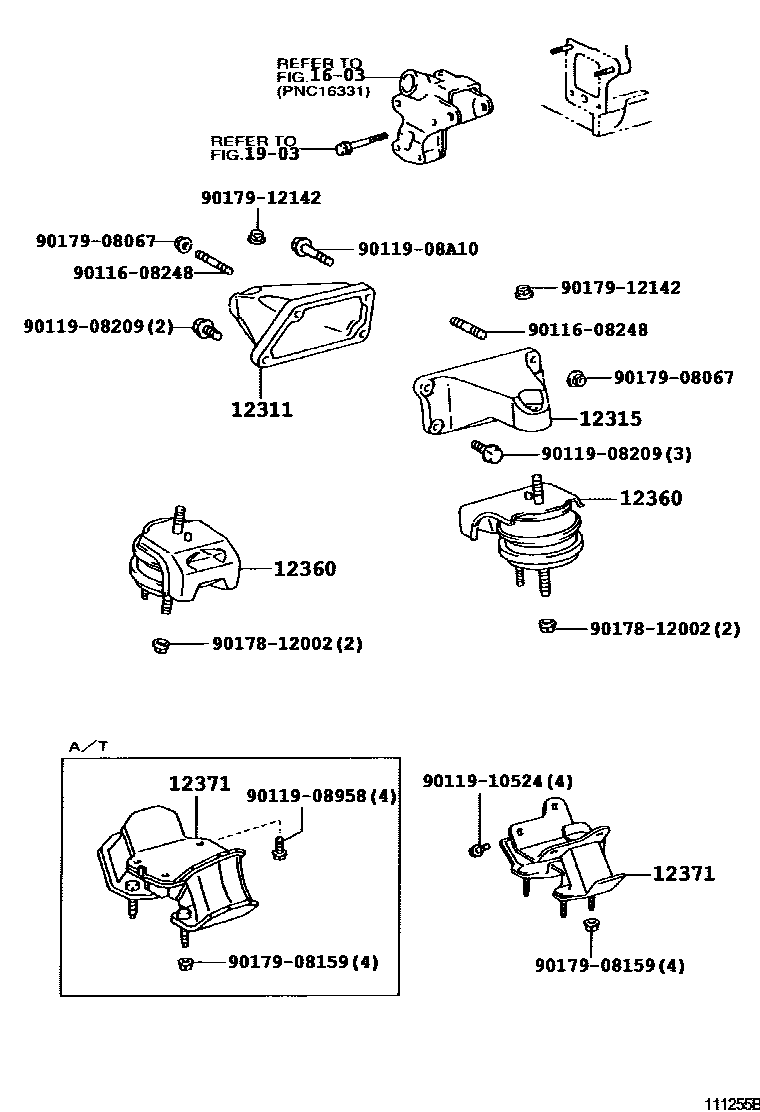

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-46140i2JZGE..JCE10200106

main12311-46150i2JZGE..JCE15200106

main12311-70140i1GFE..GXE15200201

main12311-70150i1GFE..GXE10200105

main12311-74290i3SGE..SXE10200105

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-46120i2JZGE..JCE10200106

main12315-46130i2JZGE..JCE15200106

main12315-70120i1GFE..GXE15200201

main12315-70130i1GFE..GXE10200105

main12315-74210i3SGE..SXE10200105

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12360-46080i1GFE..GXE15200201

main12360-46220i2JZGE..JCE15200106

main12360-70040×2i1GFE..GXE10199810-200105

main12360-74140×2i3SGE..SXE10..ATM200105

main12380-46030i1GFE..GXE15200201

main12380-46060i2JZGE..JCE15200106

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-46050i1GFE..GXE10..ATM199810-200105

main12371-46130i2JZGE..JCE15200106-200111

main12371-46160i2JZGE..JCE10200106

main12371-46240i2JZGE..JCE15200111

main12371-70090i1GFE..GXE10..MTM200105

main12371-74590i3SGE..SXE10..ATM200105

main12371-74600i3SGE..SXE10..MTM199810-200105

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1903ALTERNATOR

→ Go to FIG 19-03

9011608248

main90116-08248

9011908209

main90119-08209

9011908958

main90119-08958

9011908A10

main90119-08A10

9011910524

main90119-10524

9017812002

main90178-12002

9017908067

main90179-08067

9017908159

main90179-08159

9017912142

main90179-12142

15 parts on this diagram · 5 diagrams in section
