TIMING GEAR COVER & REAR END PLATE

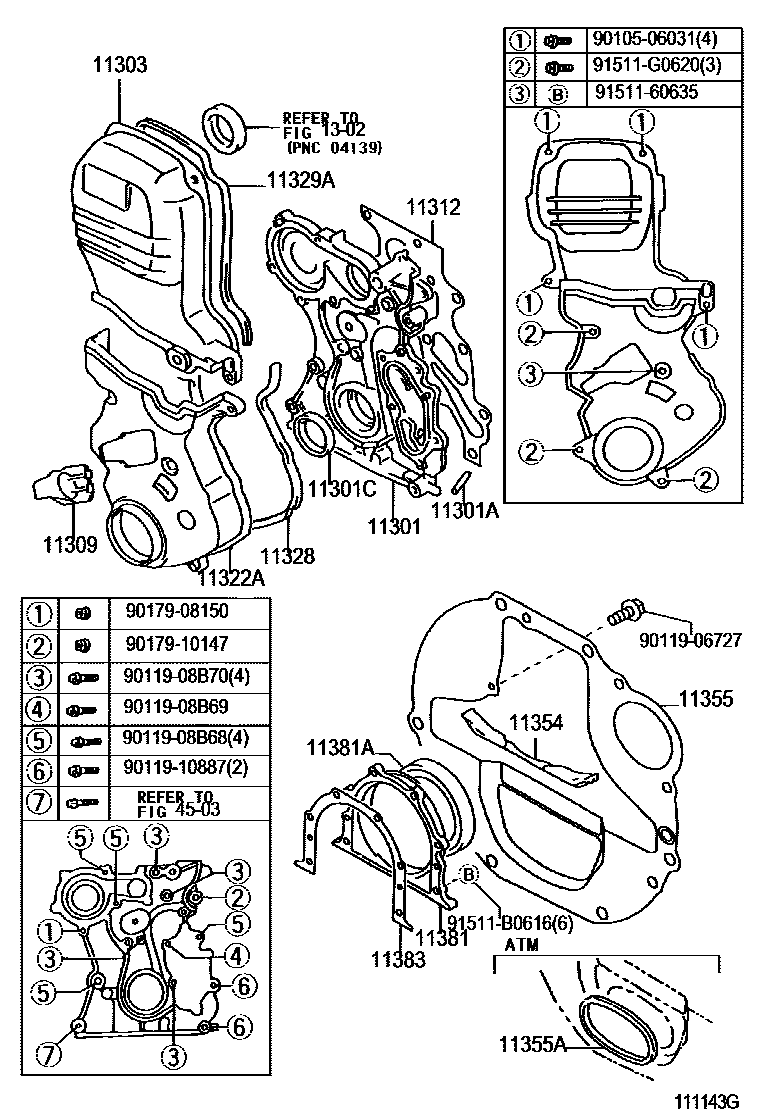

Parts diagram

11301CASE SUB-ASSY, TIMING GEAR

main11311-70060i200105-200207

main11311-70061i200207-200407

main11311-70062i200407-200507

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-06058i199810-200105

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-45015i199810-200105

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-70030i199810-200105

11309COVER SUB-ASSY, TIMING BELT, NO.4

main11325-70020i200105

11312GASKET, FRONT END PLATE

main11312-70020i200105

11322ACOVER, TIMING BELT, NO.1

main11302-46031i200106

main11302-70030i199810-200105

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-70050i199810-200105

main11328-88560×2i199810-200105

11329GASKET, TIMING GEAR REAR COVER

main11329-88560i200105

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-70030i199810-200105

11354SEAL, FLYWHEEL HOUSING DUST

main11354-70010i199810-200105

11355PLATE, REAR END

main11355-70010i200005-200105

main11355-70020i199810-200105

main11355-74050i200105

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01307i200105

11381RETAINER, ENGINE REAR OIL SEAL

main11381-46010i200106

main11381-70010i200105

main11381-74010i200105

11381ASEAL, ENGINE REAR OIL

main90311-75007i200105

main90311-89001i199810-200105

main90311-89003i200205

main90311-90006i200106

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-70011i199810-200105

main11383-88460i199810-200105

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

4503POWER STEERING TUBE

→ Go to FIG 45-03

9010506031

main90105-06031

9011906727

main90119-06727

9011908B68

main90119-08B68

9011908B69

main90119-08B69

9011908B70

main90119-08B70

9011910887

main90119-10887

9017908150

main90179-08150

9017910147

main90179-10147

9151160635

main91511-60635

91511B0616

main91511-B0616

91511G0620

main91511-G0620

29 parts on this diagram · 3 diagrams in section
