ENGINE OVERHAUL GASKET KIT

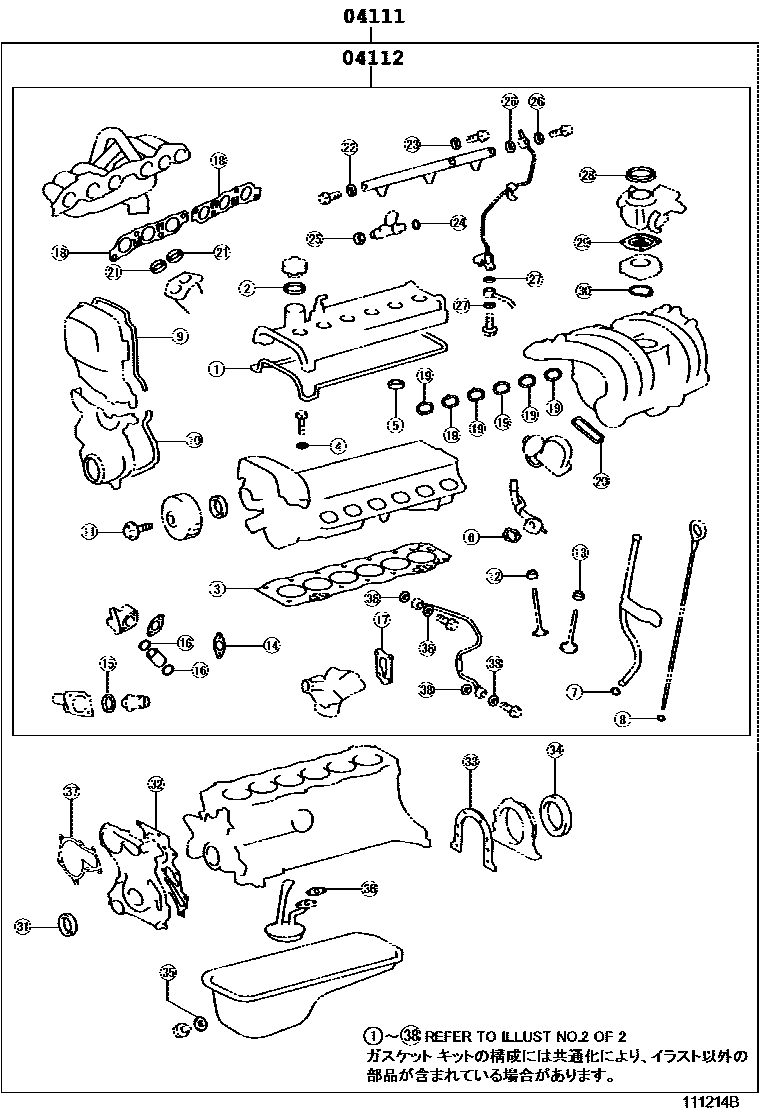

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-46102i200106-200507
main04111-70100i199810-200207
sub04111-70110
main04111-70120i200201-200207
sub04111-70121
main04111-70150i200207-200303
sub04111-70151
main04111-70151i200303-200507
sub04111-70241
main04111-70160i200207-200303
sub04111-70161
main04111-70161i200303-200507
sub04111-70251
main04111-74780i199810-200507
04112GASKET KIT, ENGINE VALVE GRIND
main04112-46102i200106-200507
main04112-70100i199810-200207
sub04112-70110
main04112-70110i200201-200207
sub04112-70111
main04112-70130i200207-200303
sub04112-70131
main04112-70131i200303-200507
sub04112-70221
main04112-74780i199810-200507

2 parts on this diagram · 6 diagrams in section
