STANDARD TOOL

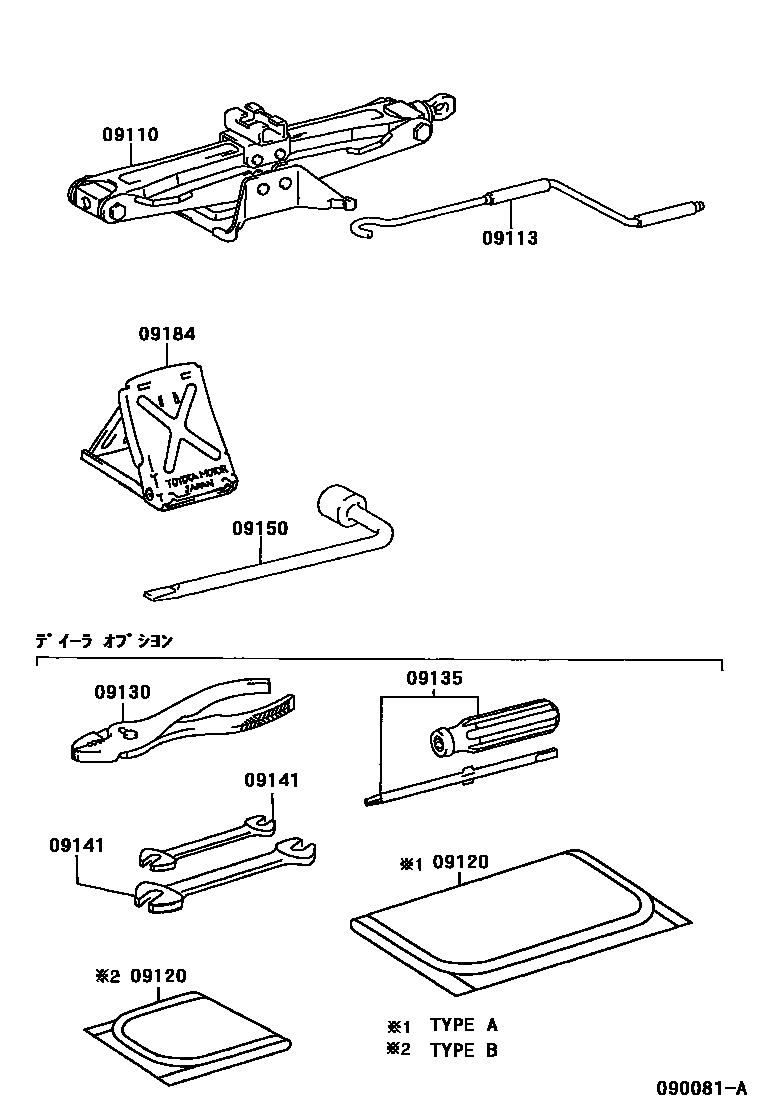

Parts diagram

09110JACK ASSY

main09111-02020i200105-200507

main09111-20110i199810-200105

09113HANDLE, JACK

main09113-13040i199810-200105

main09113-22020i200105-200308

09120BAG, TOOL

main09120-24010i199810-200308

main09120-28040i200105-200308

09130PLIERS

main99913-11500i199810-200308

09135DRIVER, SCREW

main99915-10700i199810-200308

09141SPANNER

main99914-10810i199810-200308

main99914-11214i199810-200308

09150WRENCH, HUB NUT BOX

main09150-40010i199810-200308

09184STOPPER, WHEEL

main09184-00010i199810-200308

8 parts on this diagram · 1 diagram in section
