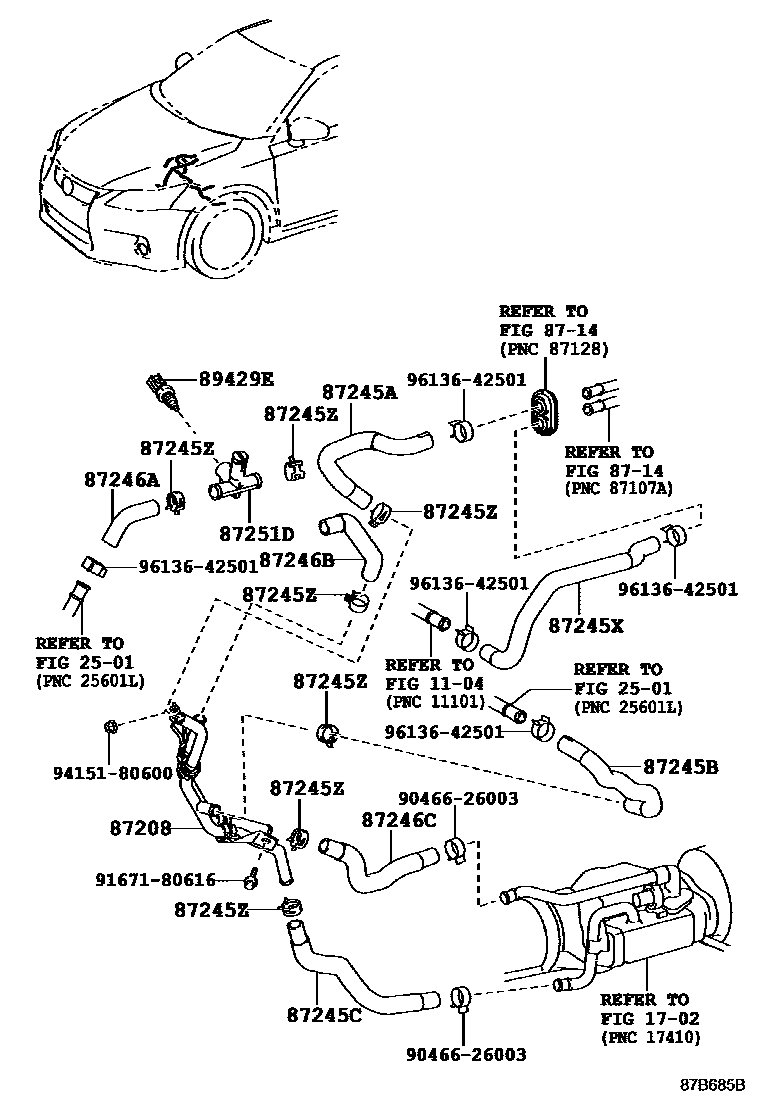

HEATING & AIR CONDITIONING - WATER PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

1702EXHAUST PIPE

→ Go to FIG 17-02

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87208PIPE SUB-ASSY, HEATER WATER

main87208-76010iZWA10201012-201312

87245AHOSE, HEATER WATER, INLET A

main87245-76010iZWA10201012-201312

87245BHOSE, HEATER WATER, INLET B

main87245-47310iZWA10201012-201312

87245CHOSE, HEATER WATER ,INLET C

main87245-47300iZWA10201012-201312

87245XHOSE, HEATER WATER

main87245-47260iZWA10201012-201312

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main90467-22011×7iZWA10201012-201312

87246AHOSE, HEATER WATER, OUTLET A

main87245-47270iZWA10201012-201312

87246BHOSE, HEATER WATER, OUTLET B

main87245-47280iZWA10201012-201312

87246CHOSE, HEATER WATER, OUTLET C

main87245-47290iZWA10201012-201312

87251DJOINT, WATER, NO.1

main87251-47020iZWA10201012-201312

89429ESENSOR, WATER TEMPERATURE

main89429-47010iZWA10201012-201312

9046626003

main90466-26003

9167180616

main91671-80616

9415180600

main94151-80600

9613642501

main96136-42501

19 parts on this diagram · 1 diagram in section
