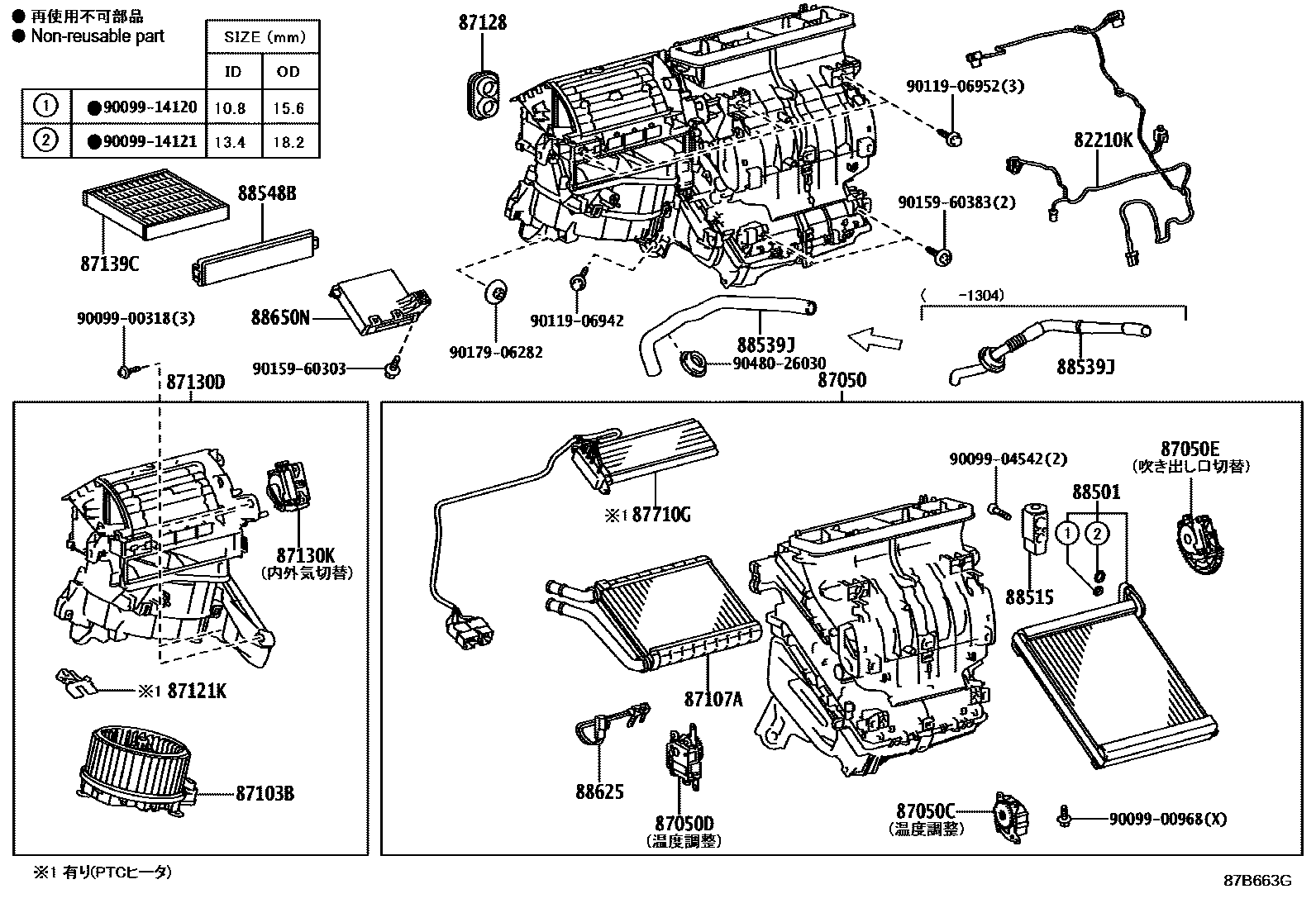

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12040iZWA10201012-201312

87050RADIATOR ASSY, AIR CONDITIONER

main87050-76020supersedes 87050-76031iZWA10201012-201312

main87050-76040supersedes 87050-76031iZWA10201312-201706

main87050-76041supersedes 87050-76031iZWA10201707

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-12170iZWA10201312-201412

main87106-47170iZWA10201501

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-42090iZWA10201012-201312

main87106-75010iZWA10201501

87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3

main87106-42100iZWA10201012-201312

main87106-42190iZWA10201707

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-75011iZWA10201012-201312

main87103-76020iZWA10201312

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-42170iZWA10201012-201312

87121KBRACKET, HEATER

main87452-76020iZWA10201012-201312

87128GROMMET, HEATER

main87128-76010iZWA10201012-201312

87130DBLOWER ASSY

main87130-76020supersedes 87130-76051iZWA10201012-201312

main87130-76060supersedes 87130-76051iZWA10201312-201706

main87130-76061supersedes 87130-76051iZWA10201707

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-42120iZWA10201012-201312

main87106-42150iZWA10201707

87139CFILTER, CLEAN AIR

main87139-30040iZWA10201012-201312

main87139-50060iZWA10201012-201204

main87139-50100iZWA10201205-201312

main87139-76010iZWA10201312

87710GQUICK HEATER ASSY

main87710-12010iZWA10201312

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-75010iZWA10201012-201312

88515VALVE, COOLER EXPANSION

main88515-26070iZWA10201012-201312

main88515-42090iZWA10201312

88539JHOSE, DRAIN COOLER

main88539-12190iZWA10201012-201304

main88539-12210iZWA10201304-201312

88548BCASE, AIR FILTER

main88548-42010iZWA10201012-201312

88625THERMISTOR, COOLER, NO.1

main88625-26090iZWA10201012-201312

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-76030iZWA10; ZWA10..B201012-201208

main88650-76040supersedes 88650-76080iZWA10201012-201208

main88650-76070iZWA10; ZWA10..B201012-201208

main88650-76160supersedes 88650-76180iZWA10201208-201312

main88650-76260supersedes 88650-76280iZWA10201312-201508

main88650-76350supersedes 88650-76370iZWA10201508-201606

main88650-76440supersedes 88650-76460iZWA10201606-201707

main88650-76550supersedes 88650-76570iZWA10201708

9009900318

main90099-00318

9009900968

main90099-00968

9009904542

main90099-04542

9009914120

main90099-14120

9009914121

main90099-14121

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

9048026030

main90480-26030

30 parts on this diagram · 1 diagram in section
