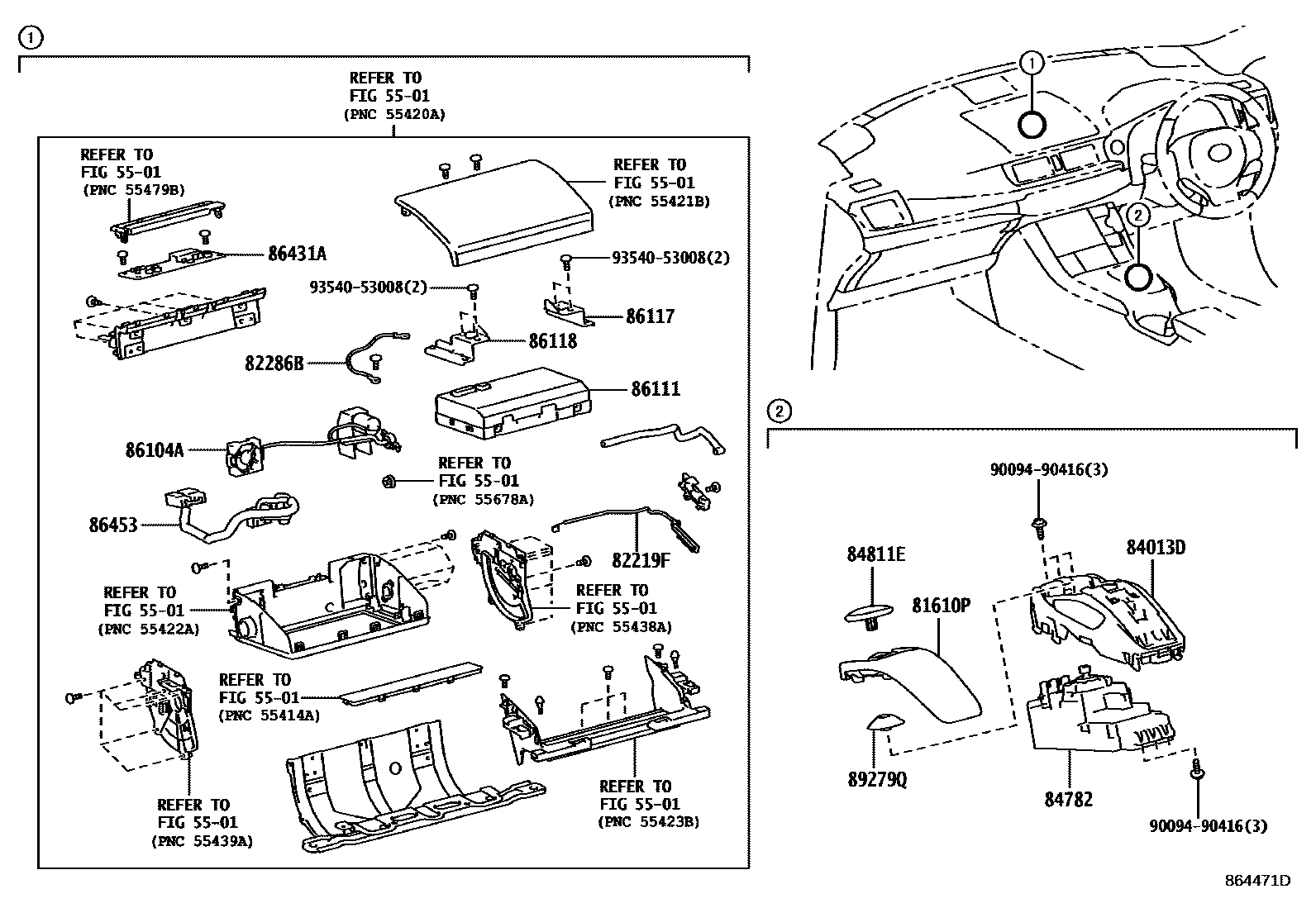

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

81610PCOVER ASSY, RH

main81610-76010-C0iZWA10201208-201312

BLACK,TRIM0#,2#,3#,4#,8#

82219FWIRE, SENSOR

main82219-76010iZWA10201208-201312

82286BWIRE, EARTH, NO.2

main82286-76010iZWA10201208-201312

84013DPANEL SUB-ASSY, INTEGRATION

main84013-76020-C0iZWA10; ZWA10..B201012-201208

main84013-76030-C0iZWA10; ZWA10..B201012-201208

84782BOARD, REMOTE OPERATION

main84782-76010iZWA10201208-201312

main84782-76040iZWA10201312-201508

main84782-76050iZWA10201508

main84782-48010iZWA10; ZWA10..B201012-201208

84811EKNOB, SWITCH

main84811-48010-C1iZWA10201208-201312

BLACK,TRIM0#,2#,3#,4#,8#

main84811-76010iZWA10201312-201508

main84811-76012iZWA10201508

86104ACONTROLLER SUB-ASSY, MULTI-DISPLAY

main86104-76010iZWA10201312-201708

86111MULTI-DISPLAY

main86110-76030iZWA10201708

main86111-76030iZWA10201208-201312

main86111-76050iZWA10201312-201708

main86111-76020iZWA10; ZWA10..B201012-201208

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-76010iZWA10201208-201312

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-76010iZWA10201208-201312

86431ABOARD, DISPLAY MODULE

main86431-76100iZWA10201208-201308

main86431-76101iZWA10201309-201312

86453WIRE, MULTI-MEDIA MODULE

main86453-76020iZWA10201208-201312

main86453-76010iZWA10; ZWA10..B201012-201208

89279QCOVER

main89279-48010-C1iZWA10201208-201312

BLACK,TRIM0#,2#,3#,4#,8#

main89279-76010iZWA10201312

9009490416

main90094-90416

9354053008

main93540-53008

16 parts on this diagram · 7 diagrams in section
