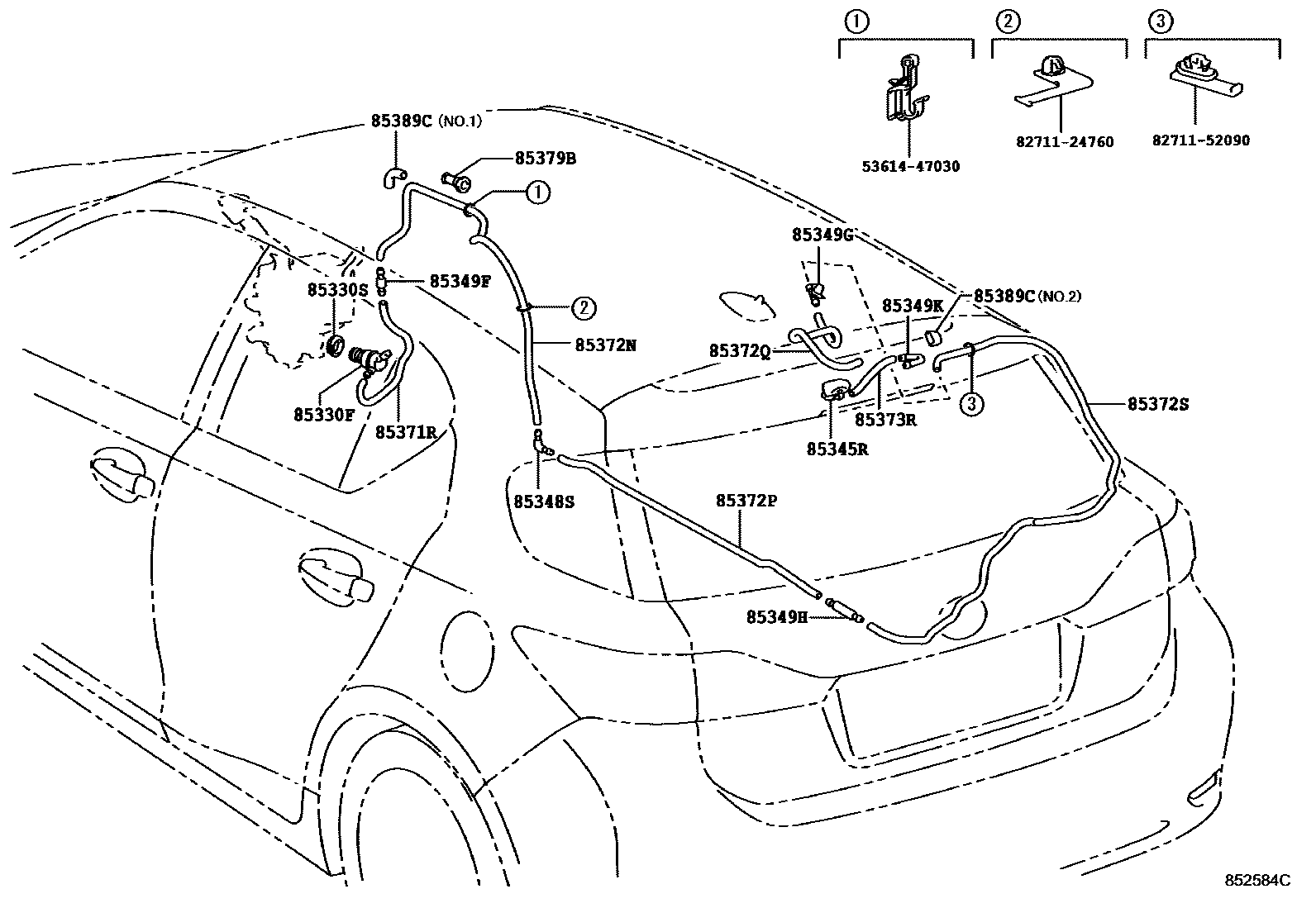

REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60180iZWA10..E201012-201312

85330SBUSH, REAR WASHER JAR

main85336-60300iZWA10..B201012-201312

85345RNOZZLE, REAR WASHER

main85391-76010iZWA10..B201012-201312

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iZWA10..B201012-201312

85349FJOINT, REAR WASHER HOSE, NO.1

main85349-89122iZWA10..B201012-201312

85349GJOINT, REAR WASHER HOSE, NO.2

main85375-20800iZWA10..B201012-201312

85349HJOINT, REAR WASHER HOSE, NO.3

main85349-32150iZWA10..B201012-201312

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-12360iZWA10..B201012-201312

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iZWA10..E201012-201312

main90099-33080iZWA10..B201012-201312

main90099-33080iZWA10201312

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iZWA10..B201012-201312

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iZWA10..B201012-201312

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iZWA10..B201012-201312

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-33589iZWA10..B201012-201312

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iZWA10..B201012-201312

85379BGROMMET, WASHER, A

main85379-12850iZWA10201012-201312

85389CPROTECTOR, WASHER

main85389-76020iZWA10201012-201312

main85389-76030iZWA10201012-201312

5361447030CLAMP, HOOD LOCK CONTROL CABLE

main53614-47030

8271124760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24760

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

19 parts on this diagram · 1 diagram in section
