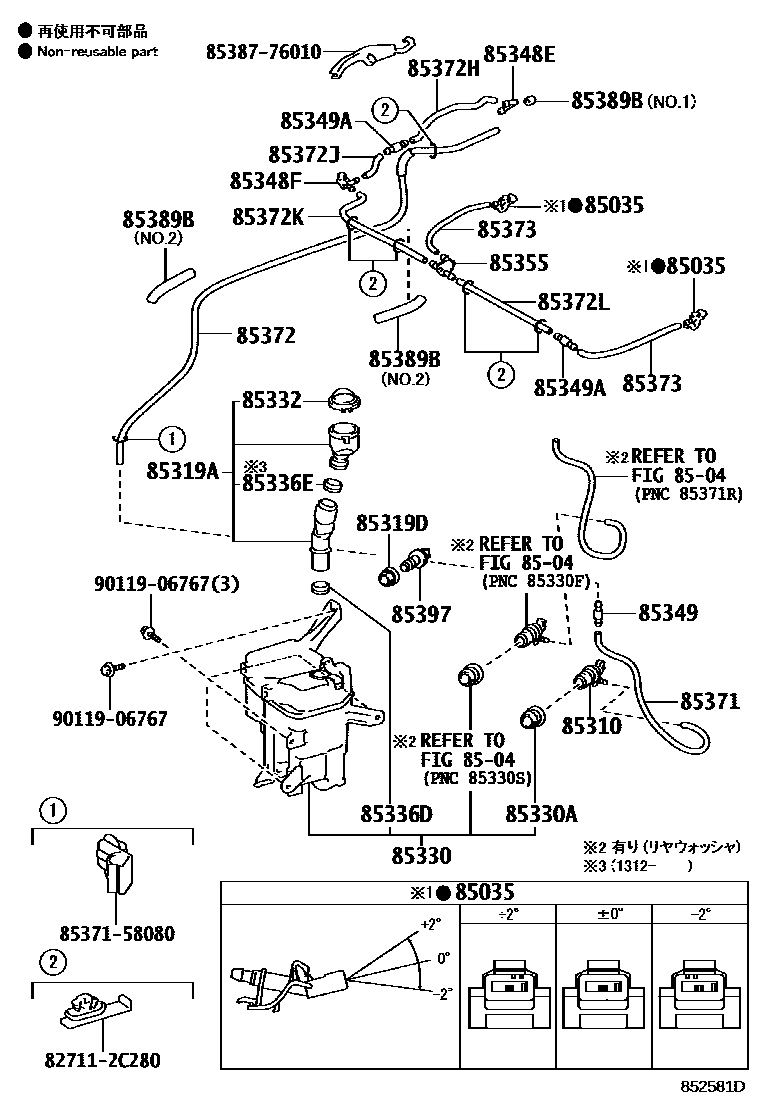

85035NOZZLE SUB-ASSY, WASHER

main85381-12330×2i201312

main85381-12340×2i201312

main85381-12350×2i201312

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i201312

85319AHOSE, INLET

main85319-76020supersedes 85319-76010i201208-201312

main85319-76010i201012-201208

main85359-76020i201012-201208

main85359-76030i201312-201708

main85359-76031supersedes 85319-76020i201708-202102

main85359-76032i202102

85319DPACKING, FRONT WASHER

main85319-33230i201312

85330JAR ASSY, WINDSHIELD WASHER

main85315-76020supersedes 85315-76010i201208-201312

main85315-76080i201312

main85315-76010i201012-201208

main85315-76030i201012-201208

main85315-76040i201012-201208

main85315-76100i201708

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201312

85332CAP, WINDSHIELD WASHER JAR

main85316-76060supersedes 85316-76061i201312-201708

main85316-76061i202102

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i201012-201312

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320i201708

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-12360i201312

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85377-32220i201312

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201312

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260×2i201312

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201012-201312

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i201012-201312

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i201312

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i201012-201312

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i201012-201312

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080i201012-201312

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90099-33080i201312

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i201312

85389BPROTECTOR, WINDSHIELD WASHER

main85389-76020×2i201312

main85389-76030i201012-201312

85397SWITCH ASSY,LEVEL WARNING

main85397-30400i201012-201312

827112C280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C280

8537158080HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-58080

8538776010CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-76010

9011906767

main90119-06767
