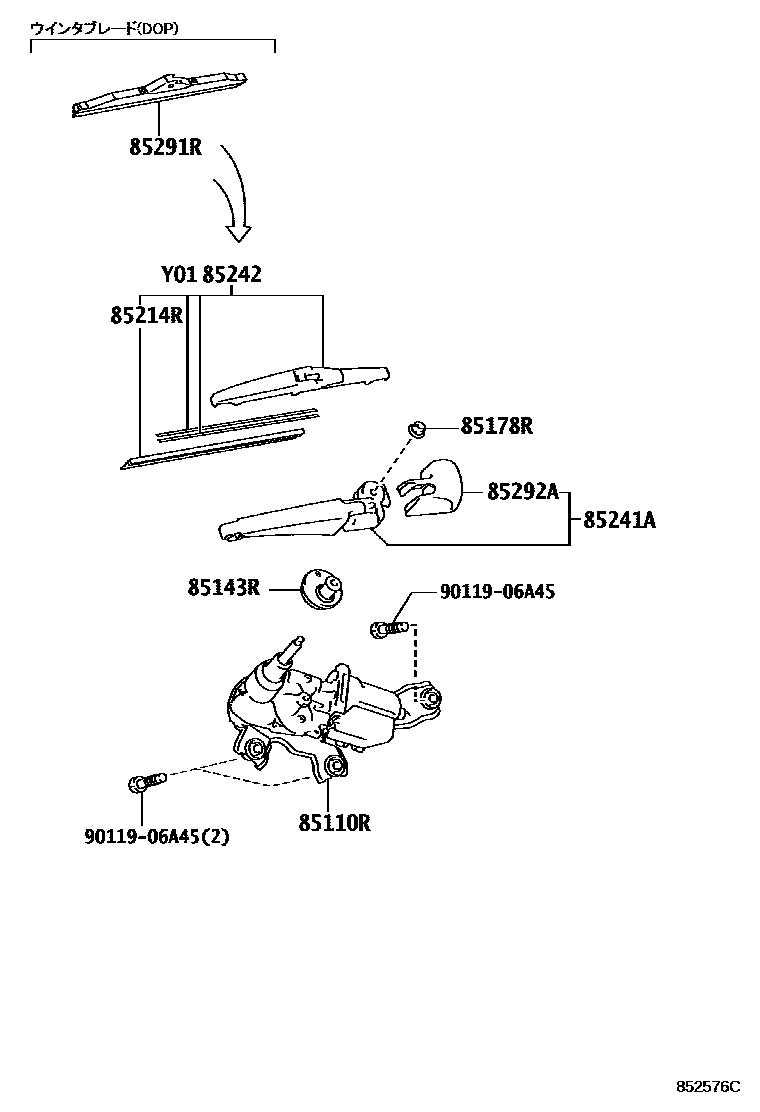

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-76010iZWA10..B201012-201312

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iZWA10..B201012-201312

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iZWA10..B201012-201312

85214RRUBBER, REAR WIPER

main85214-52060iZWA10..B201012-201312

85241AARM, REAR WIPER

main85241-52140iZWA10..B201012-201312

85242BLADE, RR WIPER

main85242-52060iZWA10201312

85291RBLADE,REAR WIPER, WINTER

main85291-52070iZWA10..E201012-201208

85292ACAP, REAR WIPER ARM HEAD

main85292-52040iZWA10..B201012-201312

9011906A45

main90119-06A45

9 parts on this diagram · 1 diagram in section
