AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-47010iZWA10201312

89170ACOMPUTER ASSY, AIRBAG

main89170-76010iZWA10201012-201107

main89170-76090iZWA10201107-201204

main89170-76150iZWA10201208-201312

main89170-76230iZWA10201708-201809

main89170-76470iZWA10201809

89173ASENSOR, AIRBAG, FRONT RH

main89173-49465iZWA10201107-201204

main89173-79025iZWA10201012-201107

main89173-79095iZWA10201708

89174ASENSOR, AIRBAG, FRONT LH

main89173-49465iZWA10201107-201204

main89173-79025iZWA10201012-201107

main89173-79095iZWA10201708

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iZWA10201312

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28020iZWA10201107-201204

main89831-28060iZWA10201708

main89831-75010iZWA10201312-201708

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-28020iZWA10201107-201204

main89831-28060iZWA10201708

main89831-75010iZWA10201012-201107

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-12020iZWA10201107-201204

main89831-75020iZWA10201012-201107

main89831-78020iZWA10201708

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-12020iZWA10201107-201204

main89831-75020iZWA10201012-201107

main89831-78020iZWA10201708

9011908C89

main90119-08C89

91553A0625

main91553-A0625

9413060600

main94130-60600

9415180600

main94151-80600

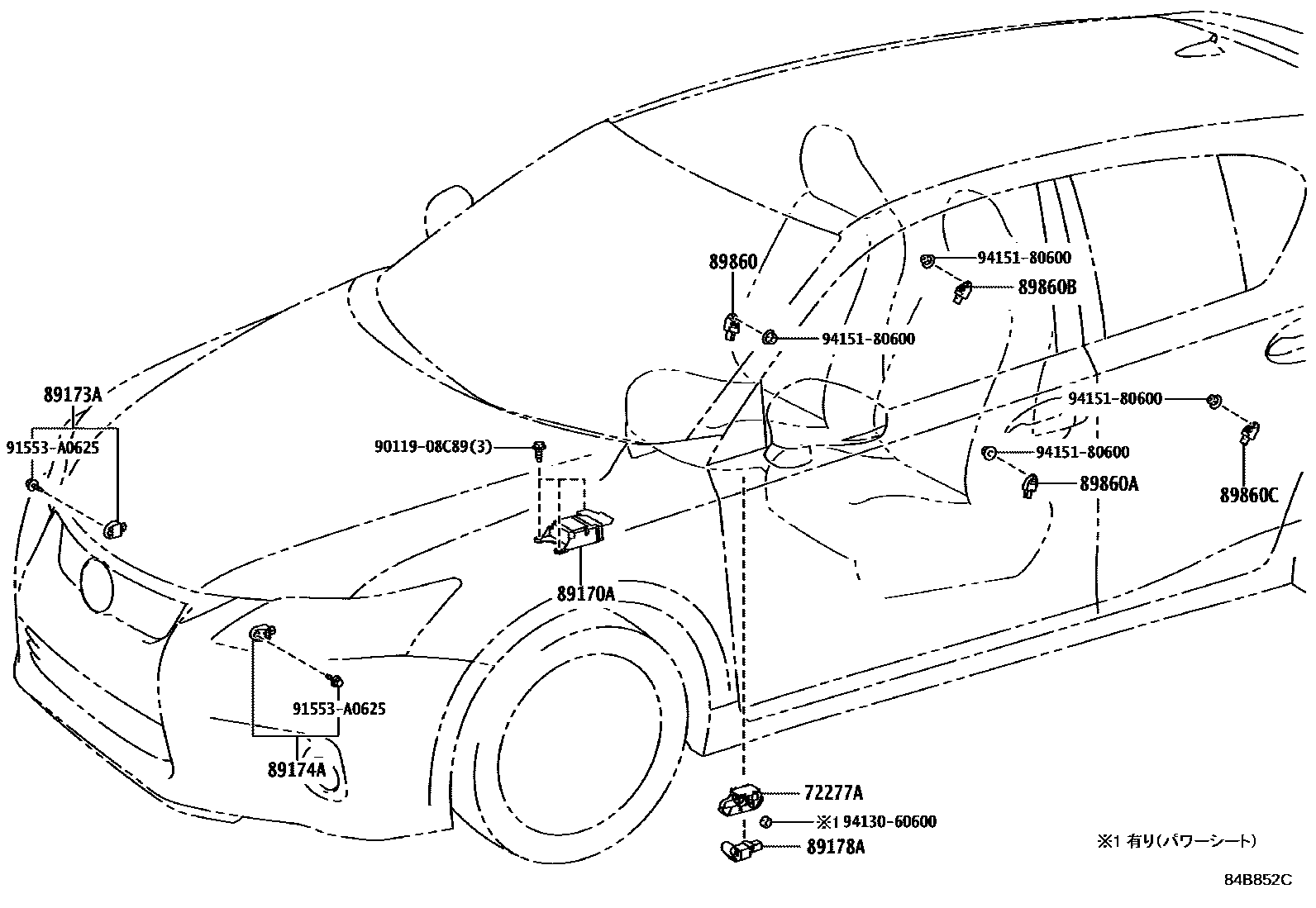

13 parts on this diagram · 1 diagram in section
