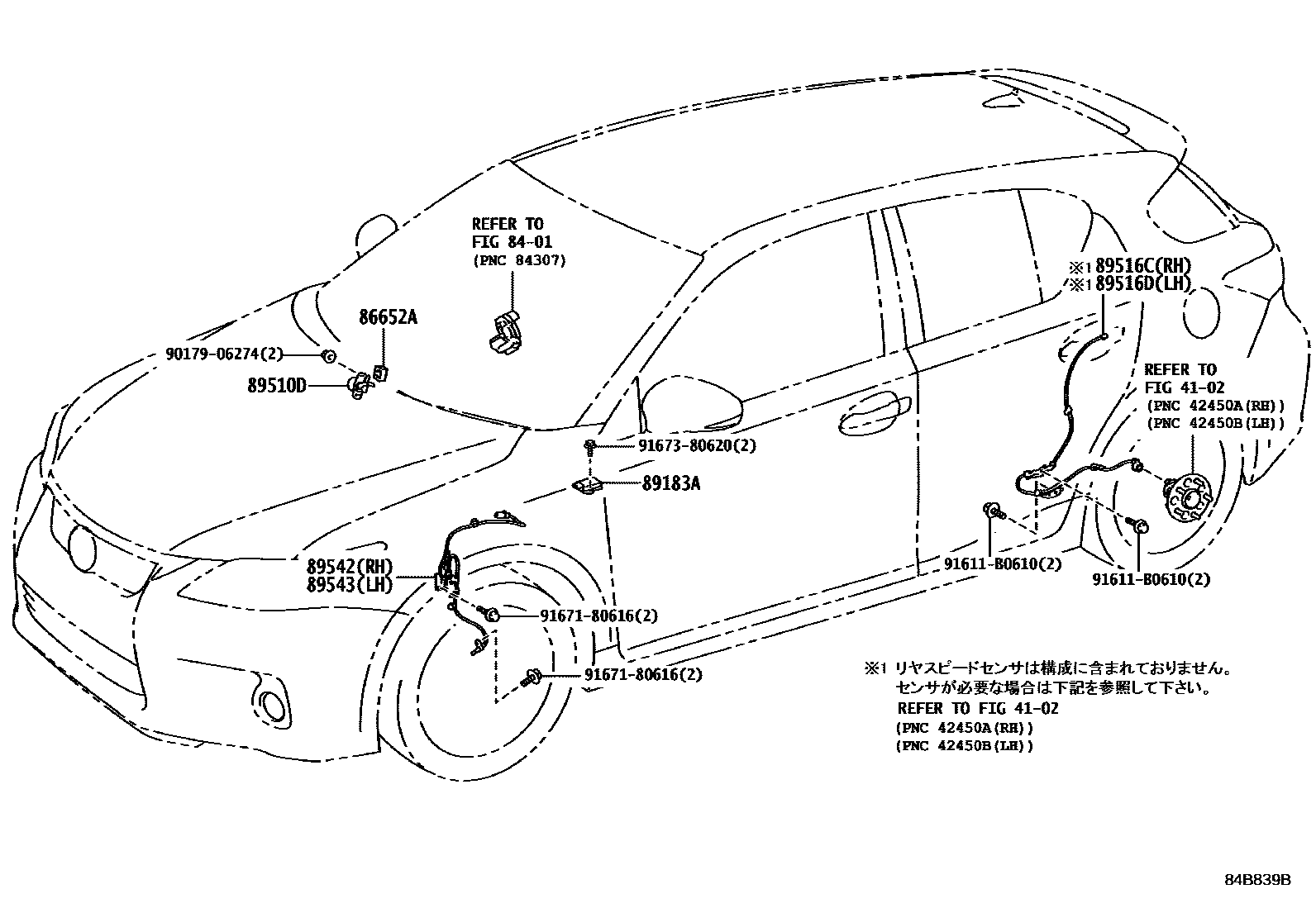

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iZWA10201708

89183ASENSOR, YAWRATE

main89183-48030iZWA10201012-201312

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-20041iZWA10201012-201312

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-12160iZWA10201012-201312

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-12170iZWA10201012-201312

89542SENSOR, SPEED, FRONT RH

main89542-47030iZWA10201012-201312

89543SENSOR, SPEED, FRONT LH

main89543-47030iZWA10201012-201312

9017906274

main90179-06274

91611B0610

main91611-B0610

9167180616

main91671-80616

9167380620

main91673-80620

13 parts on this diagram · 1 diagram in section
