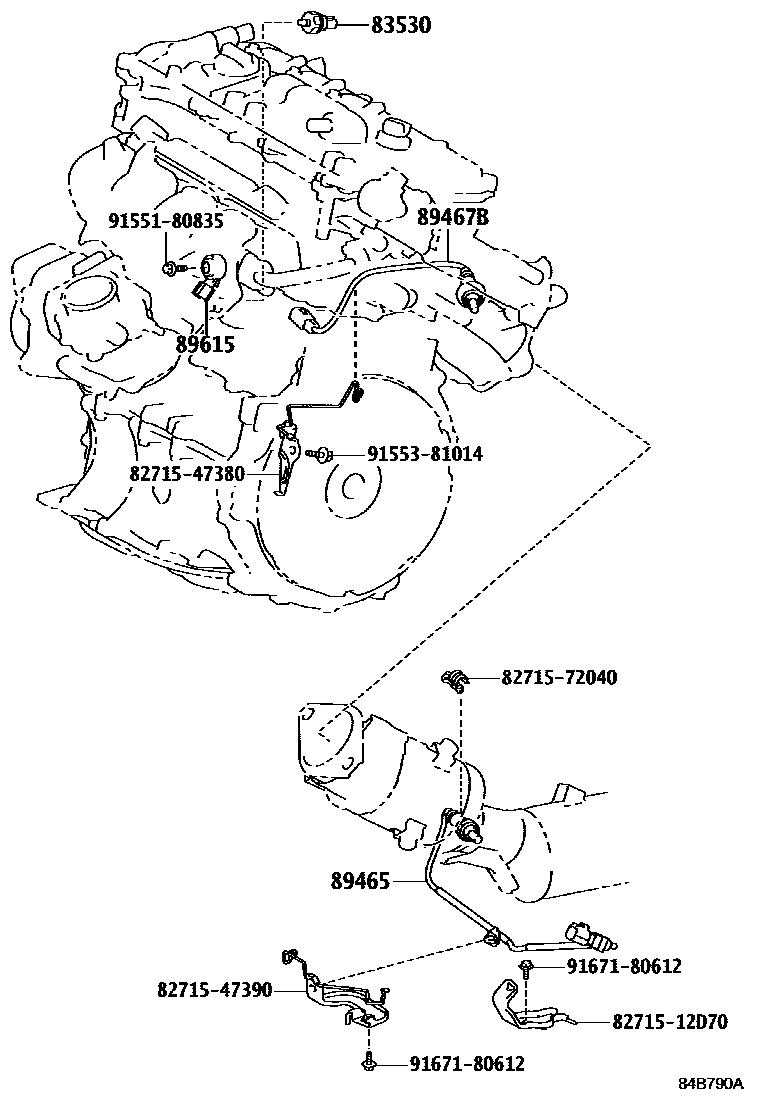

SWITCH & RELAY & COMPUTER

0001 1����� 0002 1�������� 0003 1�������� �������� 0004 1��� 0005 1������������ 0006 1������������ 0007 1������� 0008 1������� 0009 1���,���,��� & �������

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZWA10201312-201402

main83530-28020iZWA10201402

89465SENSOR, OXYGEN

main89465-47080iZWA10201312

89467BSENSOR, AIR FUEL RATIO

main89467-52060iZWA10201012-201312

89615SENSOR, KNOCK CONTROL

main89615-20090iZWA10201012-201312

8271512D70BRACKET,WIRING HARNESS CLAMP

main82715-12D70

8271547380BRACKET,WIRING HARNESS CLAMP

main82715-47380

8271547390BRACKET,WIRING HARNESS CLAMP

main82715-47390

8271572040BRACKET,WIRING HARNESS CLAMP

main82715-72040

9155180835

main91551-80835

9155381014

main91553-81014

9167180612

main91671-80612

11 parts on this diagram · 9 diagrams in section
