WIRING & CLAMP

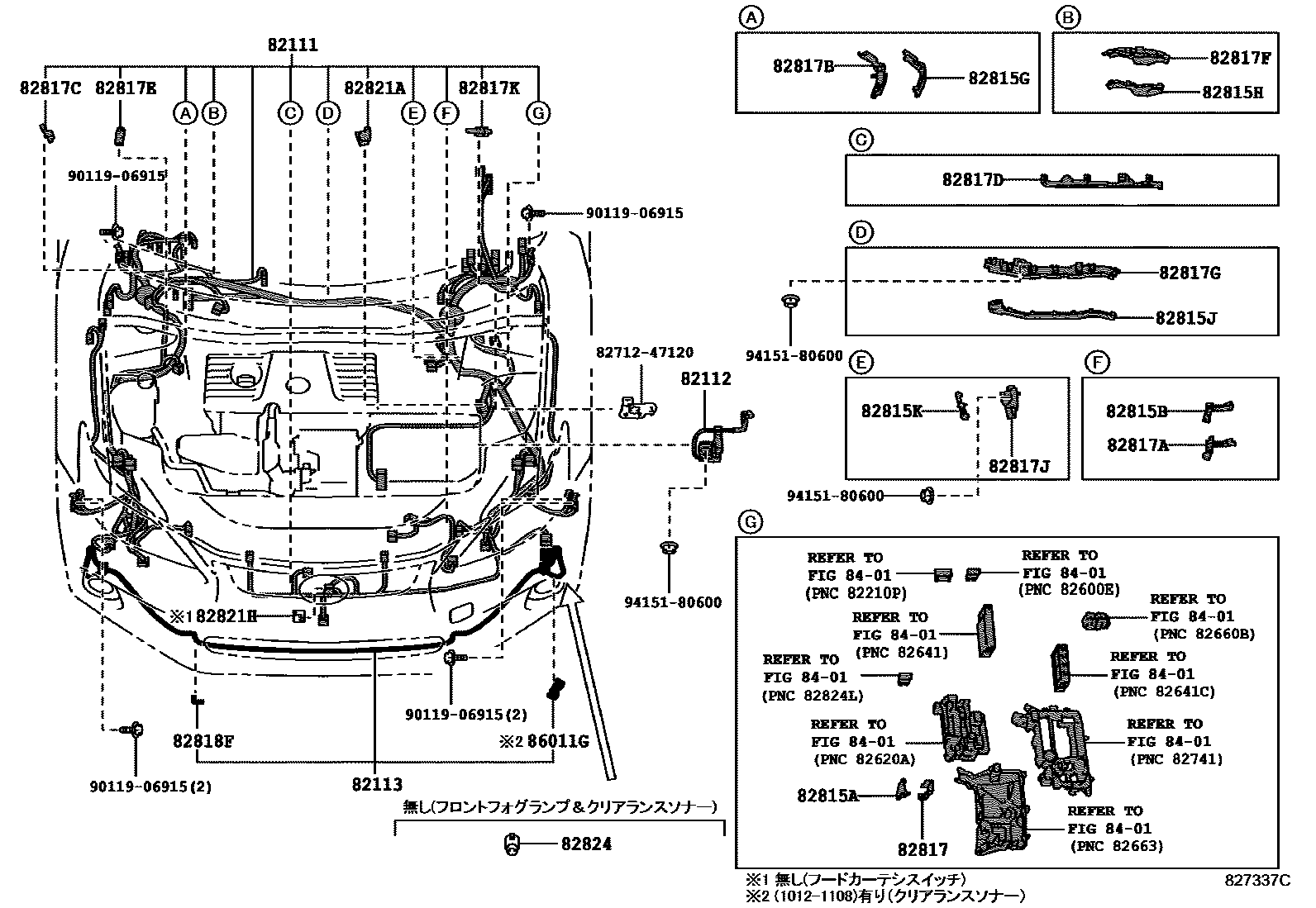

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-76030i201012-201208

main82111-76031i201208-201312

main82111-76480i201708-201904

main82111-76530i201312-201408

main82111-76531i201408-201508

main82111-76770i201508-201606

main82111-76B00i201606-201708

main82111-76C50i201708-201904

main82111-76K80i201904-202008

main82111-76L90i201904-202008

main82111-76R40i202008

main82111-76R60i202008

82112WIRE, ENGINE ROOM, NO.2

main82112-47030i201012-201312

82113WIRE, ENGINE ROOM, NO.3

main82113-76020i201012-201312

main82113-76020i201012-201312

main82113-76100i202008

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-47390i201012-201312

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-76080i201012-201312

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-76160i201012-201312

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-47570i201012-201312

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-76150i201012-201312

82815KCOVER, WIRING HARNESS PROTECTOR, NO.8

main82815-76170i201012-201312

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-47620i201012-201312

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-76230i201012-201312

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-76370i201012-201312

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-76110i201012-201312

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-76120i201012-201312

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-76130i201012-201312

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-47810i201012-201312

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-76360i201012-201312

82817JPROTECTOR, WIRING HARNESS, NO.9

main82817-76380i201012-201312

82817KPROTECTOR, WIRING HARNESS, NO.10

main82817-76100i201012-201312

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-47700i201012-201312

main82817-76390i201312

82818FPROTECTOR, WIRING HARNESS, NO.7

main82817-12860i201012-201312

main82817-12860i201012-201312

main82817-12860i201012-201312

82821ACOVER, CONNECTOR

main82821-76010i201012-201312

82821HCOVER, CONNECTOR

main82821-35040i201012-201312

82824CONNECTOR, WIRING HARNESS

main82824-76110i201012-202008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86011GCONDENSER

8271247120CLAMP, WIRING HARNESS

main82712-47120

9011906915

main90119-06915

9415180600

main94151-80600

29 parts on this diagram · 15 diagrams in section
