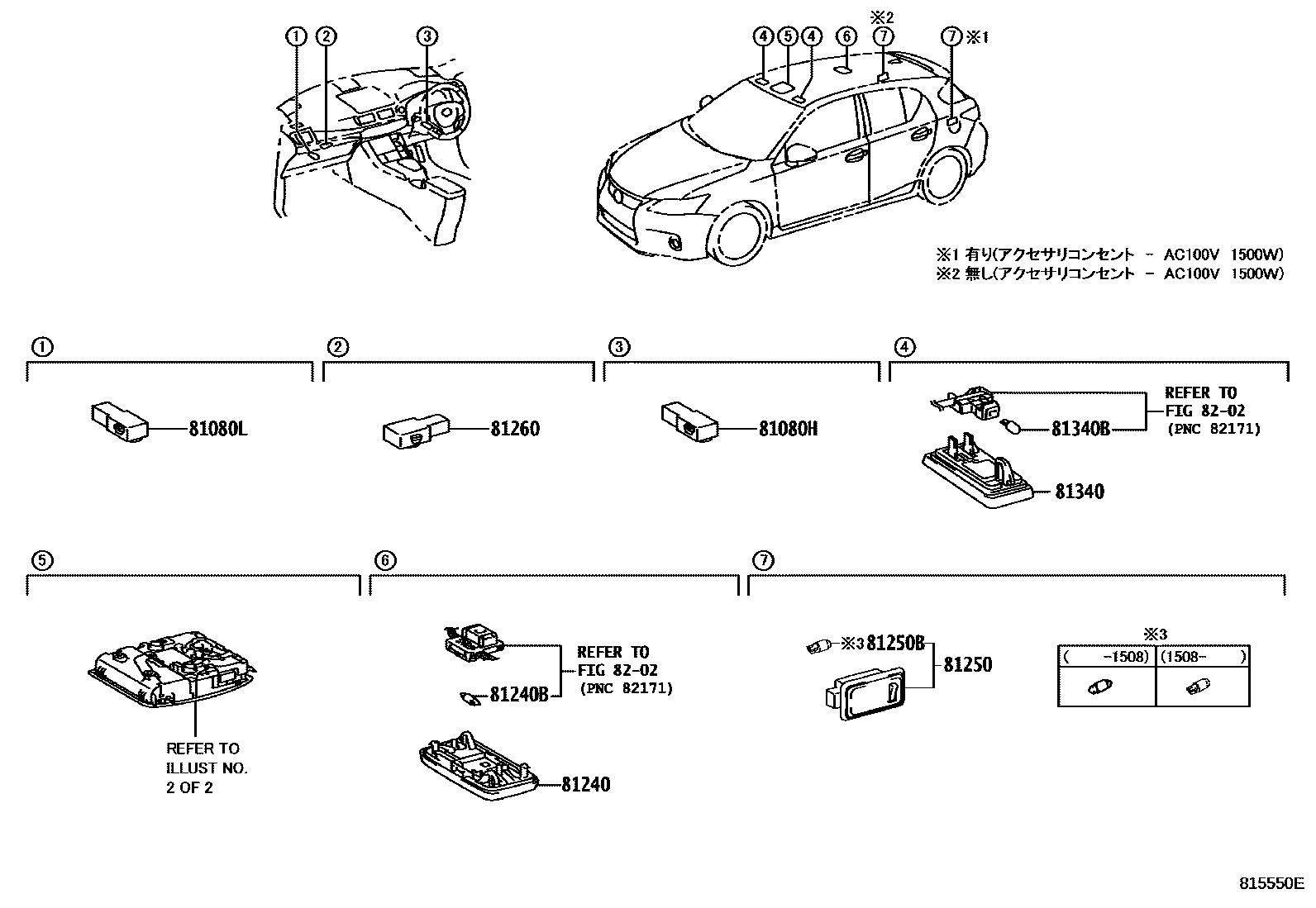

INTERIOR LAMP
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81240LAMP ASSY, ROOM, NO.1
ECRU,TRIM0#,2#,3#,4#; ECRU,TRIM02,22,36,4#
BLACK,TRIM03,04,05,23,35,37,38,39,8#
ECRU,TRIM0#,11,20,22,3#,4#,5#,6#,80,82; ECRU,TRIM0#,2#,3#,4#,5#,8#
LT.GRAY,TRIM0#,2#,3#,4#,8#
BLACK,TRIM03,04,05,10,20,23,3#,81,83
81240BBULB, ROOM LAMP, NO.1
81260LAMP ASSY, GLOVE BOX
81340LAMP ASSY, VANITY
LT.GRAY,TRIM0#,2#,3#,4#,8#
81340BBULB (FOR VANITY LAMP)
8202WIRING & CLAMP
10 parts on this diagram · 2 diagrams in section
