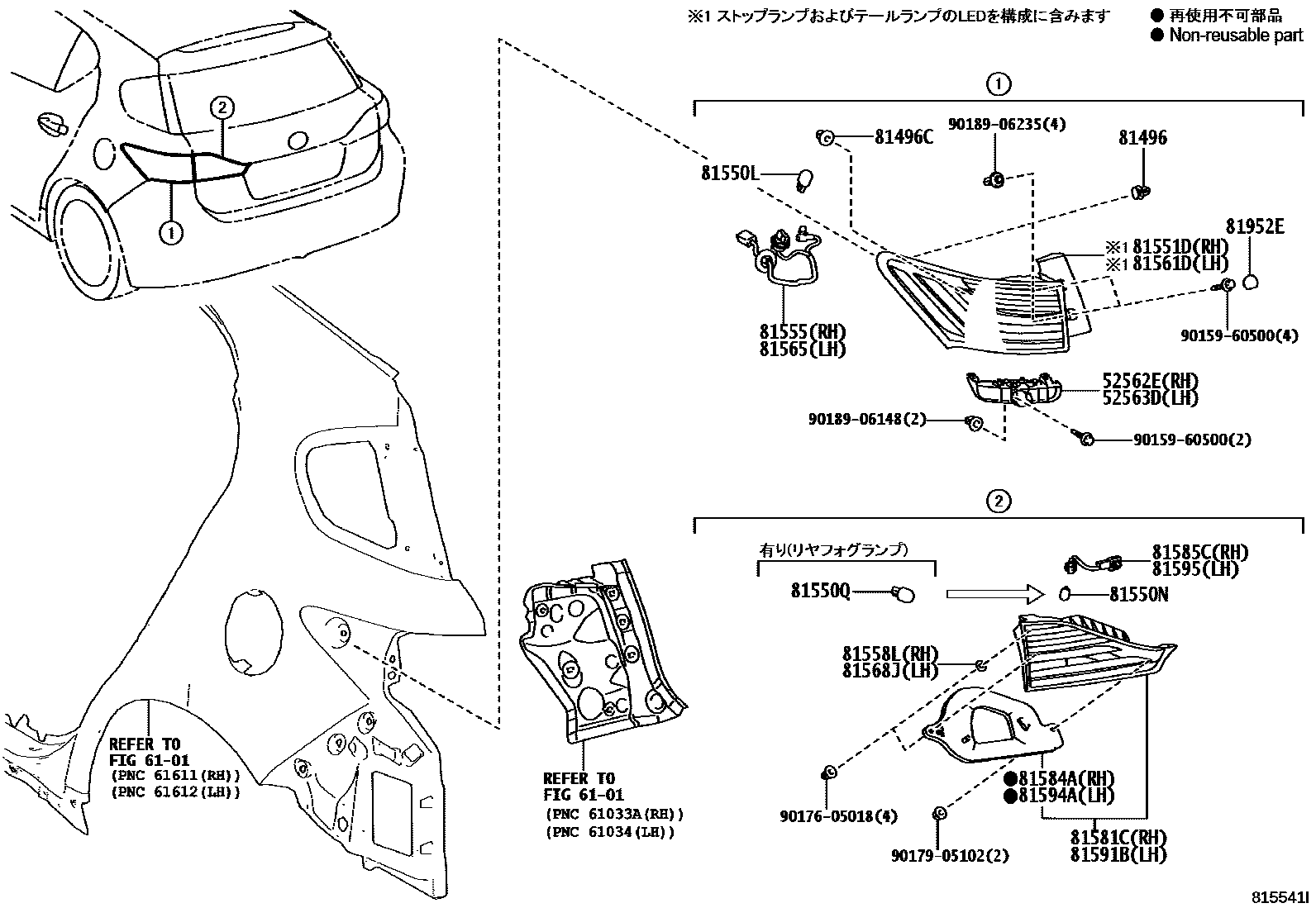

REAR COMBINATION LAMP
52562ERETAINER, REAR BUMPER, UPPER RH
52563DRETAINER, REAR BUMPER, UPPER LH
6101
81496GUIDE, REAR COMBINATION LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81550QBULB, REAR FOG LAMP, NO.1
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81558LPROTECTOR, REAR COMBINATION LAMP, RH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81568JPROTECTOR, REAR COMBINATION LAMP, LH
81952ECOVER, REAR LAMP
9015960500
main90159-60500
9017605018
main90176-05018
9017905102
main90179-05102
9018906148
main90189-06148
9018906235
main90189-06235
26 parts on this diagram · 3 diagrams in section
