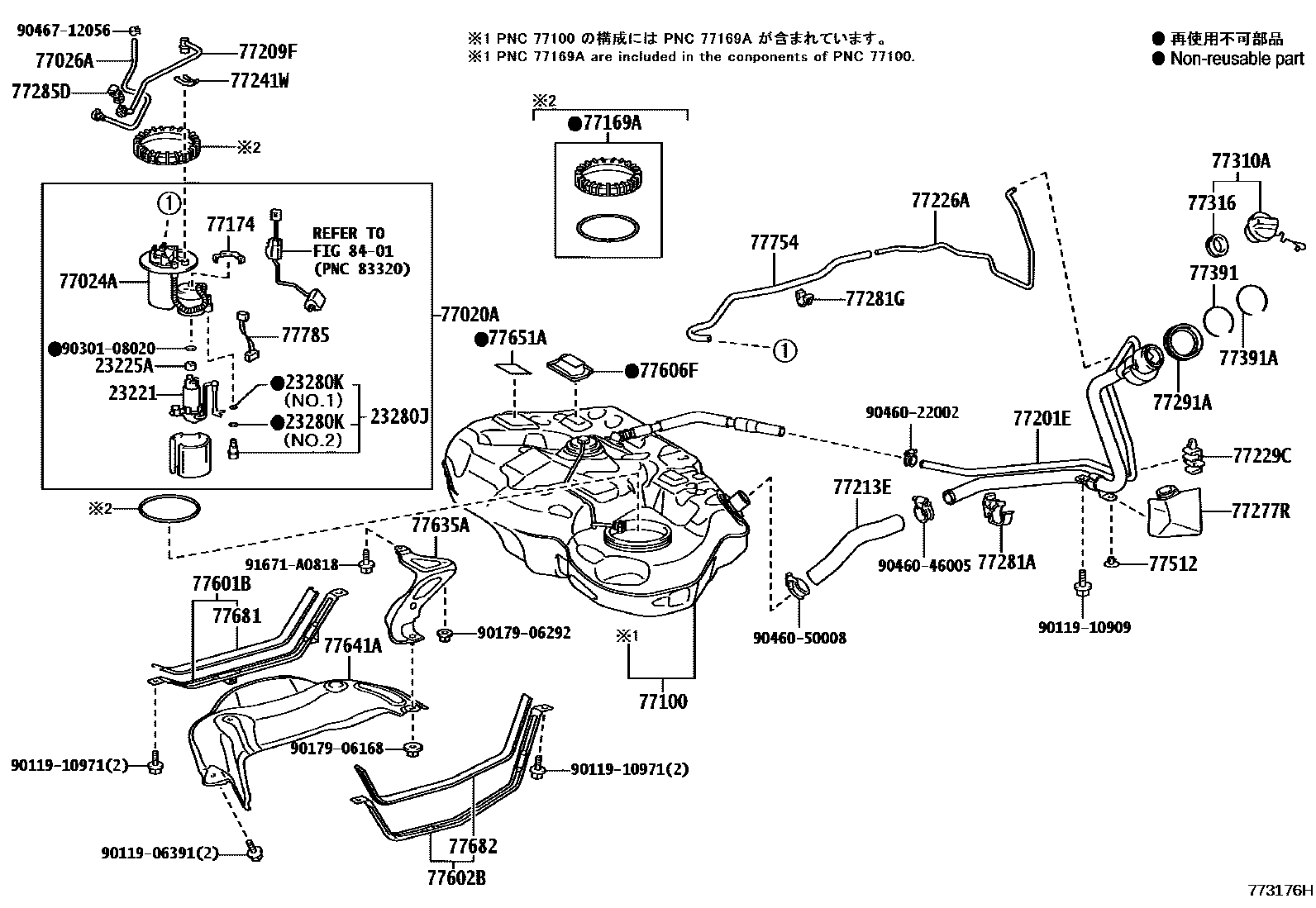

FUEL TANK & TUBE
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281ACLAMP, FUEL FILLER PIPE
77281GCLAMP, FUEL HOSE
77285DCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77512BRACKET, FUEL TANK, REAR
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606FCASE SUB-ASSY, FUEL TANK COVER VENT
77635ASTAY, FUEL TANK LOWER PROTECTOR, NO.1
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
8401SWITCH & RELAY & COMPUTER
9011906391
main90119-06391
9011910909
main90119-10909
9011910971
main90119-10971
9017906168
main90179-06168
9017906292
main90179-06292
9030108020
main90301-08020
9046022002
main90460-22002
9046046005
main90460-46005
9046050008
main90460-50008
9046712056
main90467-12056
91671A0818
main91671-A0818
48 parts on this diagram · 4 diagrams in section
