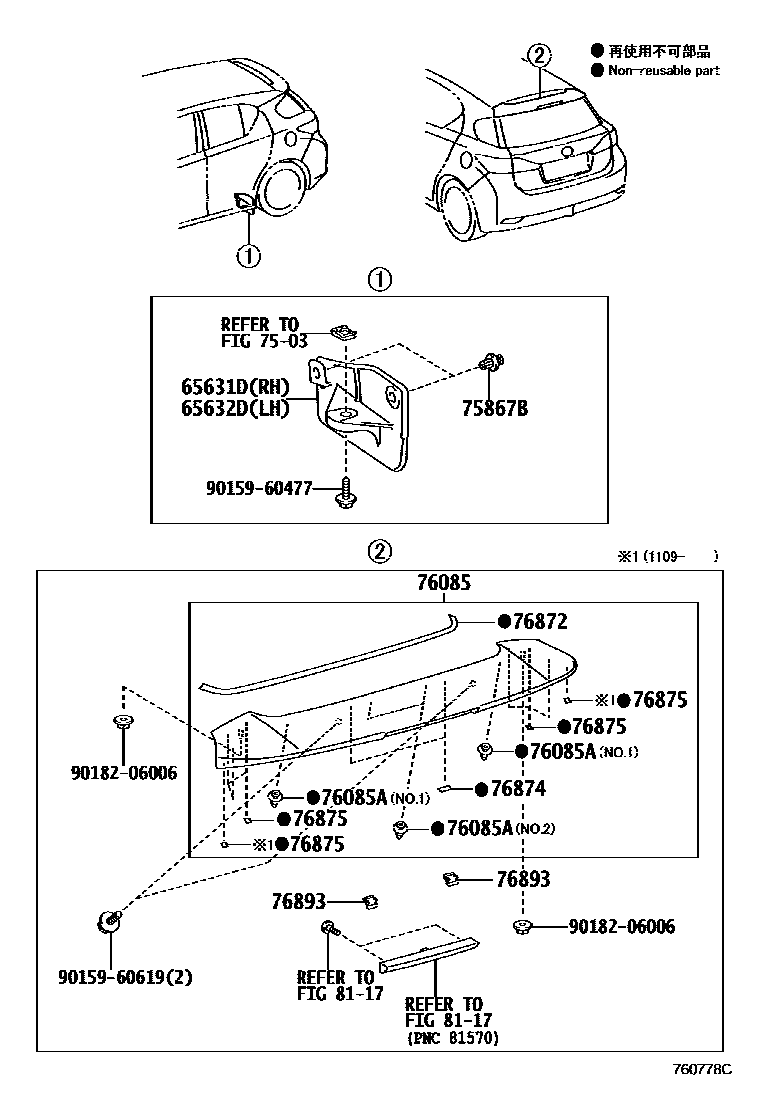

MUDGUARD & SPOILER
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
7503
75867BCLIP, ROCKER PANEL MOULDING
76085SPOILER SUB-ASSY, REAR
GRAPHITE BLACK GF.,223
WHITE PEARL CS.,077
WHITE NOVA GF.,083
SONIC QUARTZ,085
SILVER M.M.,1G1
DK.GRAY MC.,1G0
MERCURY GRAY MC.,1H9 ,2QA
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7 ,2PZ ,2QB
BLACK,212
BLACK,212 ,2LL ,2LM ,2LN ,2MN ,2MP ,2PK ,2PW ,2PX
BLACK OPAL MC.,214
RED MC.CS.,3R1
SOLID RED,3T2
FIRE AGATE M.M.,4V3
AMBER CS.,2QC ,4X2
BLAZING CARNELIAN CONTRAS,4Y1
FLARE YELLOW M.M.,5B1
TERRANE KHAKI M.M.,6X4
BLUE ME.,8U1
SILVERY BLUE ME.,8U9
DEEP BLUE MC.,8X5
SPARKLING METEOR ME.,8X9
CELESTIAL BLUE GF.,8Y6
76085ACAP(FOR REAR SPOILER)
76872PROTECTOR, REAR SPOILER, NO.1
76874PROTECTOR, REAR SPOILER, NO.3
76875PROTECTOR, REAR SPOILER, NO.4
76893COVER, REAR SPOILER, NO.1
8117
9015960477
main90159-60477
9015960619
main90159-60619
9018206006
main90182-06006
14 parts on this diagram · 2 diagrams in section
