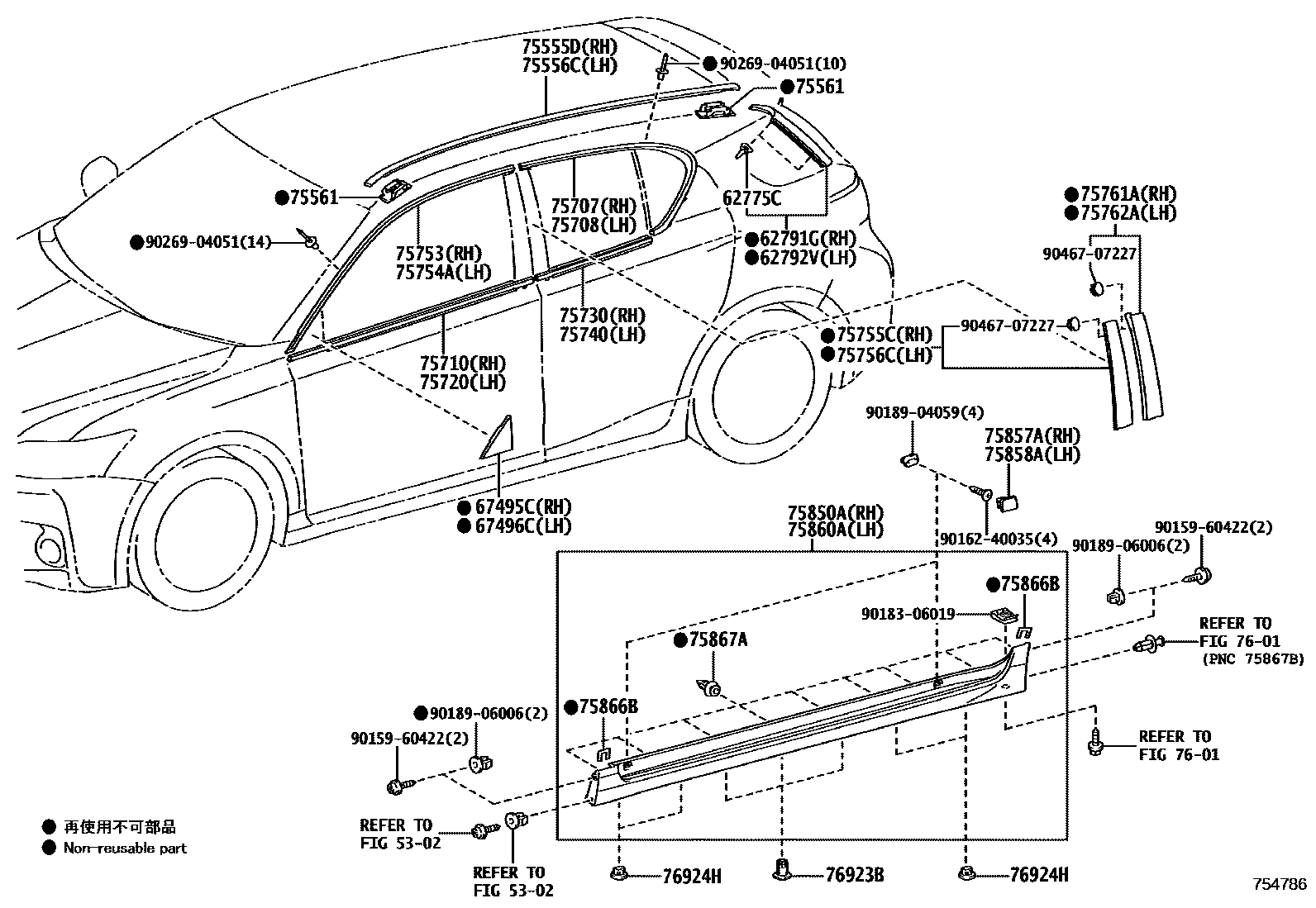

SIDE MOULDING
5302HOOD & FRONT FENDER
62775CCLIP, QUARTER WINDOW
62791GMOULDING, QUARTER WINDOW, UPPER RH
62792VMOULDING, QUARTER WINDOW, UPPER LH
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
WHITE PEARL CS.,077
WHITE NOVA GF.,083 ,2LJ
SONIC QUARTZ,085 ,2MP ,2QB ,2QC; SONIC QUARTZ,085 ,2QB ,2QC
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9; MERCURY GRAY MC.,1H9 ,2LL
DK.GRAY MC.,1G0
PLATINUM SILVER ME.,1J4; PLATINUM SILVER ME.,1J4 ,2LK
SONIC TITANIUM,1J7; SONIC TITANIUM,1J7 ,2MN
BLACK,212
BLACK OPAL MC.,214
GRAPHITE BLACK GF.,223 ,2PZ
RED MC.CS.,2LM ,2QA ,3R1; RED MC.CS.,2QA ,3R1
SOLID RED,2LN ,3T2; SOLID RED,3T2
FIRE AGATE M.M.,4V3
AMBER CS.,2PW ,4X2; AMBER CS.,4X2
LAVA ORANGE CS.,2QE ,4W7
BLAZING CARNELIAN CONTRAS,4Y1
FLARE YELLOW M.M.,2LP ,5B1; FLARE YELLOW M.M.,5B1
TERRANE KHAKI M.M.,6X4
BLUE ME.,2LQ ,8U1; BLUE ME.,8U1
SILVERY BLUE ME.,8U9
DEEP BLUE MC.,2PK ,8X5; DEEP BLUE MC.,8X5
SPARKLING METEOR ME.,2PX ,8X9; SPARKLING METEOR ME.,8X9
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
CELESTIAL BLUE GF.,8Y6
75857ACOVER, ROCKER PANEL MOULDING, RH
WHITE PEARL CS.,077
WHITE NOVA GF.,083 ,2LJ
SONIC QUARTZ,085 ,2MP ,2QB ,2QC; SONIC QUARTZ,085 ,2QB ,2QC
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9; MERCURY GRAY MC.,1H9 ,2LL
PLATINUM SILVER ME.,1J4; PLATINUM SILVER ME.,1J4 ,2LK
SONIC TITANIUM,1J7; SONIC TITANIUM,1J7 ,2MN
BLACK,212
BLACK OPAL MC.,214
GRAPHITE BLACK GF.,223 ,2PZ
RED MC.CS.,2LM ,2QA ,3R1; RED MC.CS.,2QA ,3R1
SOLID RED,2LN ,3T2; SOLID RED,3T2
FIRE AGATE M.M.,4V3
AMBER CS.,2PW ,4X2; AMBER CS.,4X2
LAVA ORANGE CS.,2QE ,4W7
BLAZING CARNELIAN CONTRAS,4Y1
FLARE YELLOW M.M.,2LP ,5B1; FLARE YELLOW M.M.,5B1
TERRANE KHAKI M.M.,6X4
BLUE ME.,2LQ ,8U1; BLUE ME.,8U1
SILVERY BLUE ME.,8U9
DEEP BLUE MC.,2PK ,8X5; DEEP BLUE MC.,8X5
SPARKLING METEOR ME.,2PX ,8X9; SPARKLING METEOR ME.,8X9
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
CELESTIAL BLUE GF.,8Y6
75858ACOVER, ROCKER PANEL MOULDING, LH
WHITE PEARL CS.,077
WHITE NOVA GF.,083 ,2LJ
SONIC QUARTZ,085 ,2MP ,2QB ,2QC; SONIC QUARTZ,085 ,2QB ,2QC
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9; MERCURY GRAY MC.,1H9 ,2LL
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7; SONIC TITANIUM,1J7 ,2MN
BLACK,212
BLACK OPAL MC.,214
GRAPHITE BLACK GF.,223 ,2PZ
RED MC.CS.,2LM ,2QA ,3R1; RED MC.CS.,2QA ,3R1
SOLID RED,2LN ,3T2; SOLID RED,3T2
FIRE AGATE M.M.,4V3
AMBER CS.,2PW ,4X2; AMBER CS.,4X2
LAVA ORANGE CS.,2QE ,4W7
BLAZING CARNELIAN CONTRAS,4Y1
FLARE YELLOW M.M.,5B1
TERRANE KHAKI M.M.,6X4
BLUE ME.,2LQ ,8U1; BLUE ME.,8U1
SILVERY BLUE ME.,8U9
DEEP BLUE MC.,2PK ,8X5; DEEP BLUE MC.,8X5
SPARKLING METEOR ME.,2PX ,8X9; SPARKLING METEOR ME.,8X9
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
CELESTIAL BLUE GF.,8Y6
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
SONIC QUARTZ,085 ,2MP ,2QB ,2QC; SONIC QUARTZ,085 ,2QB ,2QC
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9; MERCURY GRAY MC.,1H9 ,2LL
DK.GRAY MC.,1G0
PLATINUM SILVER ME.,1J4; PLATINUM SILVER ME.,1J4 ,2LK
SONIC TITANIUM,1J7; SONIC TITANIUM,1J7 ,2MN
BLACK,212
BLACK OPAL MC.,214
GRAPHITE BLACK GF.,223 ,2PZ
RED MC.CS.,2LM ,2QA ,3R1; RED MC.CS.,2QA ,3R1
SOLID RED,2LN ,3T2; SOLID RED,3T2
FIRE AGATE M.M.,4V3
AMBER CS.,2PW ,4X2; AMBER CS.,4X2
LAVA ORANGE CS.,2QE ,4W7
BLAZING CARNELIAN CONTRAS,4Y1
FLARE YELLOW M.M.,2LP ,5B1; FLARE YELLOW M.M.,5B1
TERRANE KHAKI M.M.,6X4
BLUE ME.,2LQ ,8U1; BLUE ME.,8U1
SILVERY BLUE ME.,8U9
DEEP BLUE MC.,2PK ,8X5; DEEP BLUE MC.,8X5
SPARKLING METEOR ME.,2PX ,8X9; SPARKLING METEOR ME.,8X9
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
CELESTIAL BLUE GF.,8Y6
75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6
75867ACLIP, ROCKER PANEL MOULDING
7601MUDGUARD & SPOILER
76923BRETAINER, SIDE MUDGUARD
76924HRETAINER, SIDE MUDGUARD, NO.2
9015960422
main90159-60422
9016240035
main90162-40035
9018306019
main90183-06019
9018904059
main90189-04059
9018906006
main90189-06006
9026904051
main90269-04051
9046707227
main90467-07227
37 parts on this diagram · 1 diagram in section
