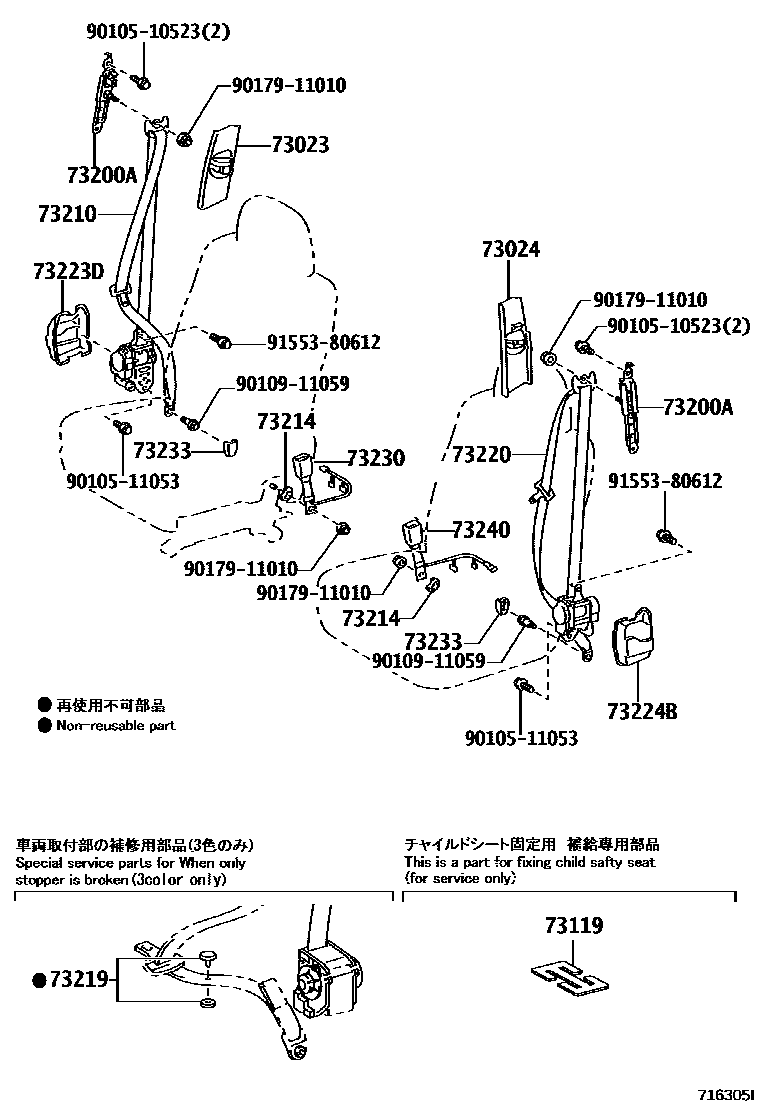

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
ECRU,TRIM0#,11,20,22,3#,4#,5#,6#,80,82; ECRU,TRIM0#,2#,3#,4#,5#,8#
LT.GRAY,TRIM0#,2#,3#,4#,8#; LT.GRAY,TRIM0#,20,21,22,23,30,40,80
BLACK,TRIM0#,2#,30,31,40,42,80,81
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
ECRU,TRIM0#,11,20,22,3#,4#,5#,6#,80,82; ECRU,TRIM0#,2#,3#,4#,5#,8#
LT.GRAY,TRIM0#,2#,3#,4#,8#; LT.GRAY,TRIM0#,20,21,22,23,30,40,80
BLACK,TRIM0#,2#,30,31,40,42,80,81
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
73220BELT ASSY, FRONT SEAT OUTER, LH
ECRU,TRIM0#,2#,3#,4#,5#,8#; ECRU,TRIM00,02,20,22,30,36,4#,5#,80
73223DCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,3#,4#
9010510523
main90105-10523
9010511053
main90105-11053
9010911059
main90109-11059
9017911010
main90179-11010
9155380612
main91553-80612
18 parts on this diagram · 2 diagrams in section
