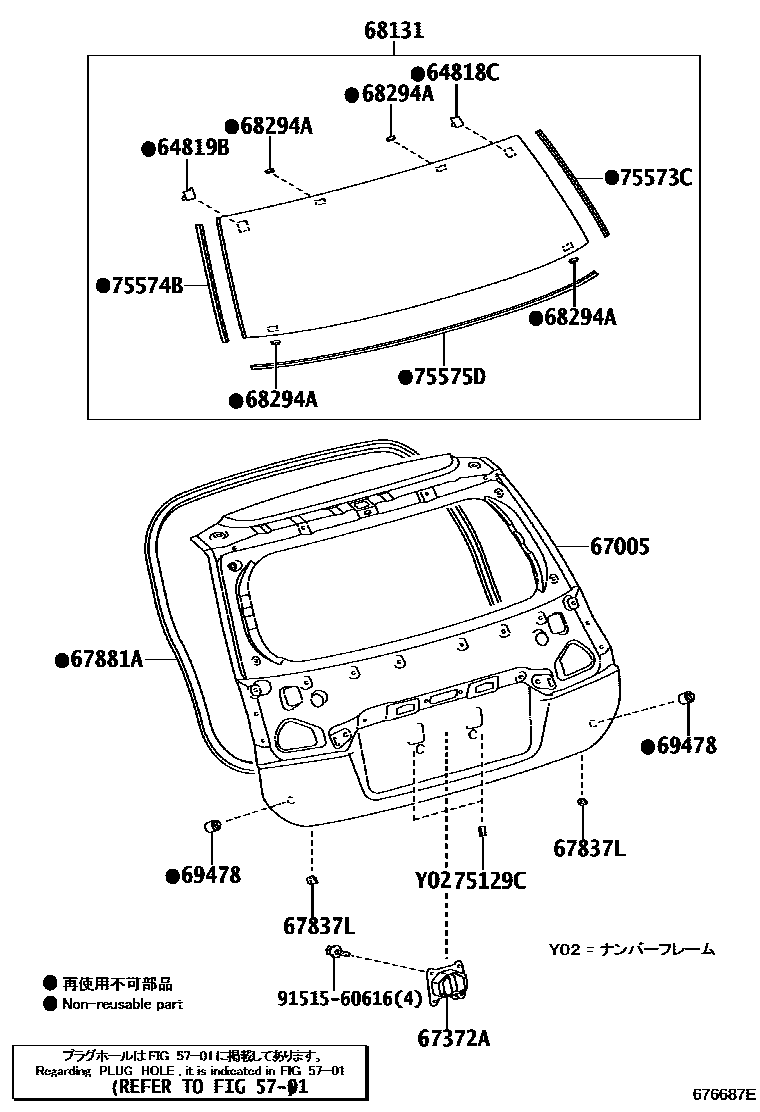

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

5701HOLE PLUG

→ Go to FIG 57-01

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-76010iZWA10201012-201312

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-76010iZWA10201012-201312

67005PANEL SUB-ASSY, BACK DOOR

main67005-76010supersedes 67005-76030iZWA10201312

67372AWEIGHT, BACK DOOR

main67372-76010iZWA10201012-201312

67837LSEAL, DOOR DUST PROOF

main67837-48100×2iZWA10201510

main67837-76010×2iZWA10201312-201509

67881AWEATHERSTRIP, BACK DOOR

main67881-76010iZWA10201312

68131GLASS, BACK DOOR

main68105-76050supersedes 68105-76070iZWA10..B201012-201312

main68105-76051iZWA10201708

main68105-76070iZWA10..B; ZWA10..E201012-201208

68294ADAM, BACK DOOR GLASS ADHESIVE

main68294-26030×4iZWA10201312

69478CUSHION, BACK DOOR LOWER STOPPER

main69478-47010×2iZWA10201012-201312

75129CCUSHION, REAR LICENCE PLATE

main75129-13020×2iZWA10201012-201205

main75129-30010×2iZWA10201205-201312

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-76010iZWA10201012-201312

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-76010iZWA10201012-201312

75575DMOULDING, BACK WINDOW, LOWER

main75575-76010iZWA10201012-201312

9151560616

main91515-60616

15 parts on this diagram · 2 diagrams in section
