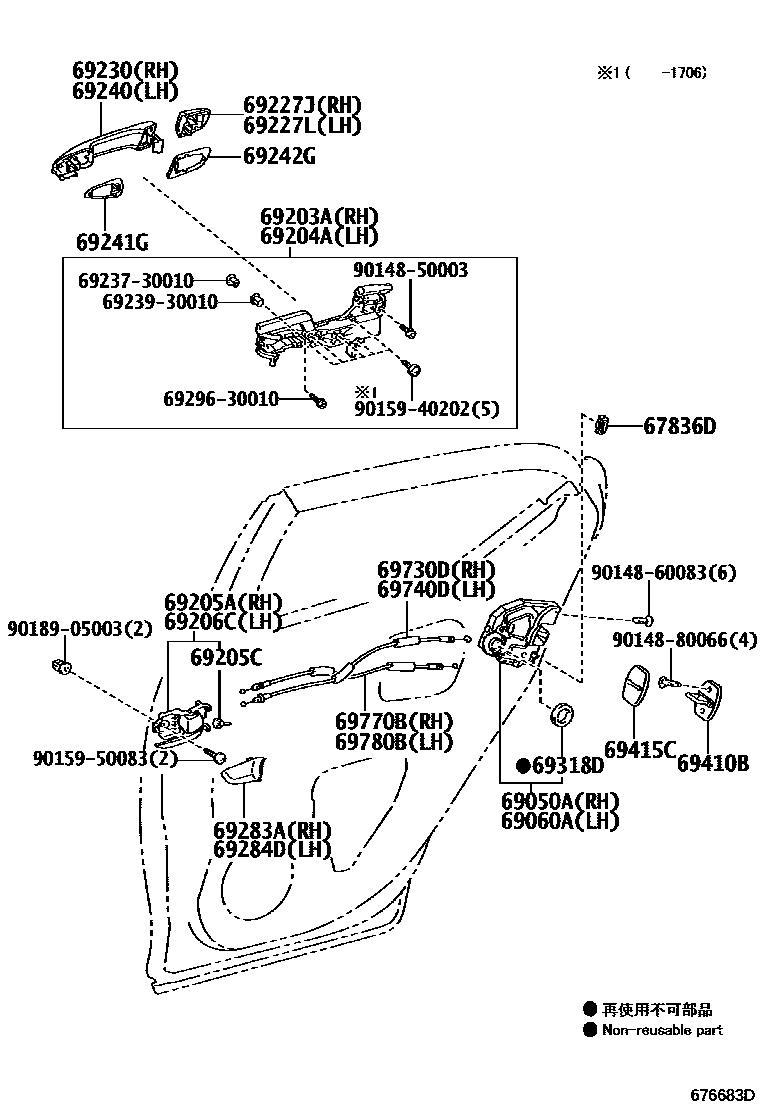

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM0#,2#,3#,4#,8#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
SONIC QUARTZ,085 ,2MP ,2QB ,2QC; SONIC QUARTZ,085 ,2QB ,2QC
DK.GRAY MC.,1G0
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9; MERCURY GRAY MC.,1H9 ,2LK ,2LL
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7; SONIC TITANIUM,1J7 ,2MN
BLACK,212
BLACK OPAL MC.,214
GRAPHITE BLACK GF.,223 ,2PZ
RED MC.CS.,3R1
SOLID RED,2LN ,3T2; SOLID RED,3T2
FIRE AGATE M.M.,4V3
AMBER CS.,2PW ,4X2; AMBER CS.,4X2
LAVA ORANGE CS.,2QE ,4W7
BLAZING CARNELIAN CONTRAS,4Y1
FLARE YELLOW M.M.,2LP ,5B1; FLARE YELLOW M.M.,5B1
TERRANE KHAKI M.M.,6X4
SILVERY BLUE ME.,8U9
BLUE ME.,2LQ ,8U1; BLUE ME.,8U1
DEEP BLUE MC.,2PK ,8X5; DEEP BLUE MC.,8X5
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
SPARKLING METEOR ME.,2PX ,8X9; SPARKLING METEOR ME.,8X9
CELESTIAL BLUE GF.,8Y6
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,077
WHITE NOVA GF.,083 ,2LJ
SONIC QUARTZ,085 ,2MP ,2QB ,2QC; SONIC QUARTZ,085 ,2QB ,2QC
DK.GRAY MC.,1G0
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9; MERCURY GRAY MC.,1H9 ,2LK ,2LL
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7; SONIC TITANIUM,1J7 ,2MN
BLACK,212
BLACK OPAL MC.,214
GRAPHITE BLACK GF.,223 ,2PZ
RED MC.CS.,3R1
SOLID RED,2LN ,3T2; SOLID RED,3T2
FIRE AGATE M.M.,4V3
AMBER CS.,2PW ,4X2; AMBER CS.,4X2
LAVA ORANGE CS.,2QE ,4W7
BLAZING CARNELIAN CONTRAS,4Y1
FLARE YELLOW M.M.,2LP ,5B1; FLARE YELLOW M.M.,5B1
TERRANE KHAKI M.M.,6X4
SILVERY BLUE ME.,8U9
BLUE ME.,2LQ ,8U1; BLUE ME.,8U1
DEEP BLUE MC.,2PK ,8X5; DEEP BLUE MC.,8X5
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
SPARKLING METEOR ME.,2PX ,8X9; SPARKLING METEOR ME.,8X9
CELESTIAL BLUE GF.,8Y6
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
SONIC QUARTZ,085 ,2MP ,2QB ,2QC; SONIC QUARTZ,085 ,2QB ,2QC
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
DK.GRAY MC.,1G0
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7; SONIC TITANIUM,1J7 ,2MN
BLACK,212
BLACK OPAL MC.,214
GRAPHITE BLACK GF.,223 ,2PZ
RED MC.CS.,2LM ,2QA ,3R1; RED MC.CS.,2QA ,3R1
SOLID RED,2LN ,3T2; SOLID RED,3T2
FIRE AGATE M.M.,4V3
AMBER CS.,2PW ,4X2; AMBER CS.,4X2
LAVA ORANGE CS.,2QE ,4W7
BLAZING CARNELIAN CONTRAS,4Y1
FLARE YELLOW M.M.,2LP ,5B1; FLARE YELLOW M.M.,5B1
TERRANE KHAKI M.M.,6X4
BLUE ME.,2LQ ,8U1; BLUE ME.,8U1
SILVERY BLUE ME.,8U9
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
DEEP BLUE MC.,2PK ,8X5; DEEP BLUE MC.,8X5
SPARKLING METEOR ME.,2PX ,8X9; SPARKLING METEOR ME.,8X9
CELESTIAL BLUE GF.,8Y6
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,077
WHITE NOVA GF.,083 ,2LJ
SONIC QUARTZ,085 ,2MP ,2QB ,2QC; SONIC QUARTZ,085 ,2QB ,2QC
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
DK.GRAY MC.,1G0
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7; SONIC TITANIUM,1J7 ,2MN
BLACK,212 ,2PZ
BLACK OPAL MC.,214
GRAPHITE BLACK GF.,223 ,2PZ
RED MC.CS.,2LM ,2QA ,3R1; RED MC.CS.,2QA ,3R1
SOLID RED,2LN ,3T2; SOLID RED,3T2
FIRE AGATE M.M.,4V3
AMBER CS.,2PW ,4X2; AMBER CS.,4X2
LAVA ORANGE CS.,2QE ,4W7
BLAZING CARNELIAN CONTRAS,4Y1
FLARE YELLOW M.M.,2LP ,5B1; FLARE YELLOW M.M.,5B1
TERRANE KHAKI M.M.,6X4
BLUE ME.,2LQ ,8U1; BLUE ME.,8U1
SILVERY BLUE ME.,8U9
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
DEEP BLUE MC.,2PK ,8X5; DEEP BLUE MC.,8X5
SPARKLING METEOR ME.,2PX ,8X9; SPARKLING METEOR ME.,8X9
CELESTIAL BLUE GF.,8Y6
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM0#,2#,3#,4#,8#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9015940202
main90159-40202
9015950083
main90159-50083
9018905003
main90189-05003
32 parts on this diagram · 1 diagram in section
