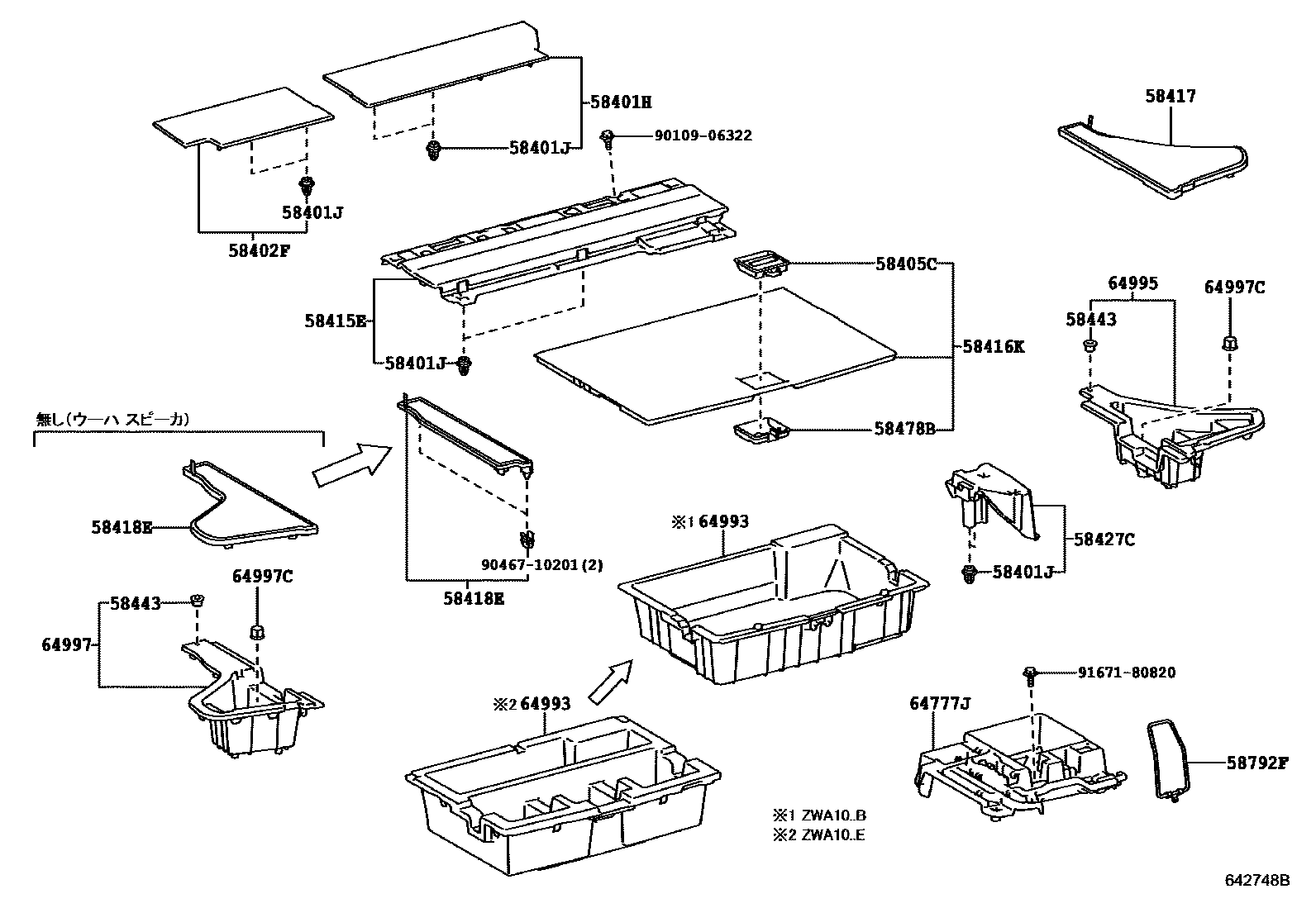

DECK BOARD & DECK TRIM COVER
58401HBOARD SUB-ASSY, REAR FLOOR, NO.1
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
58401JCLIP(FOR DECK BOAD)
58402FBOARD SUB-ASSY, REAR FLOOR, NO.2
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
58405CLOCK SUB-ASSY, DECK BOARD
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
58415EBOARD, REAR FLOOR, NO.1
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,3#,4#,8#
58416KBOARD, REAR FLOOR, NO.2
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,3#,4#,8#
58417BOARD, REAR FLOOR, NO.3
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
58418EBOARD, REAR FLOOR, NO.4
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
58427CSPACER, REAR FLOOR BOARD
58443CUSHION, DECK BOARD, NO.1
58478BPROTECTOR, DECK BOARD
BLACK,TRIM0#,2#,3#,4#,8#
BLACK
58792FSUPPORT, JACK CARRIER
64777JCUSHION, SPARE WHEEL
64993BOX, DECK FLOOR, REAR
64997BOX, DECK FLOOR, LH
sub64997-76011
64997CCLIP(FOR DECK FLOOR BOX)
BLACK
9010906322
main90109-06322
9046710201
main90467-10201
9167180820
main91671-80820
20 parts on this diagram · 4 diagrams in section
