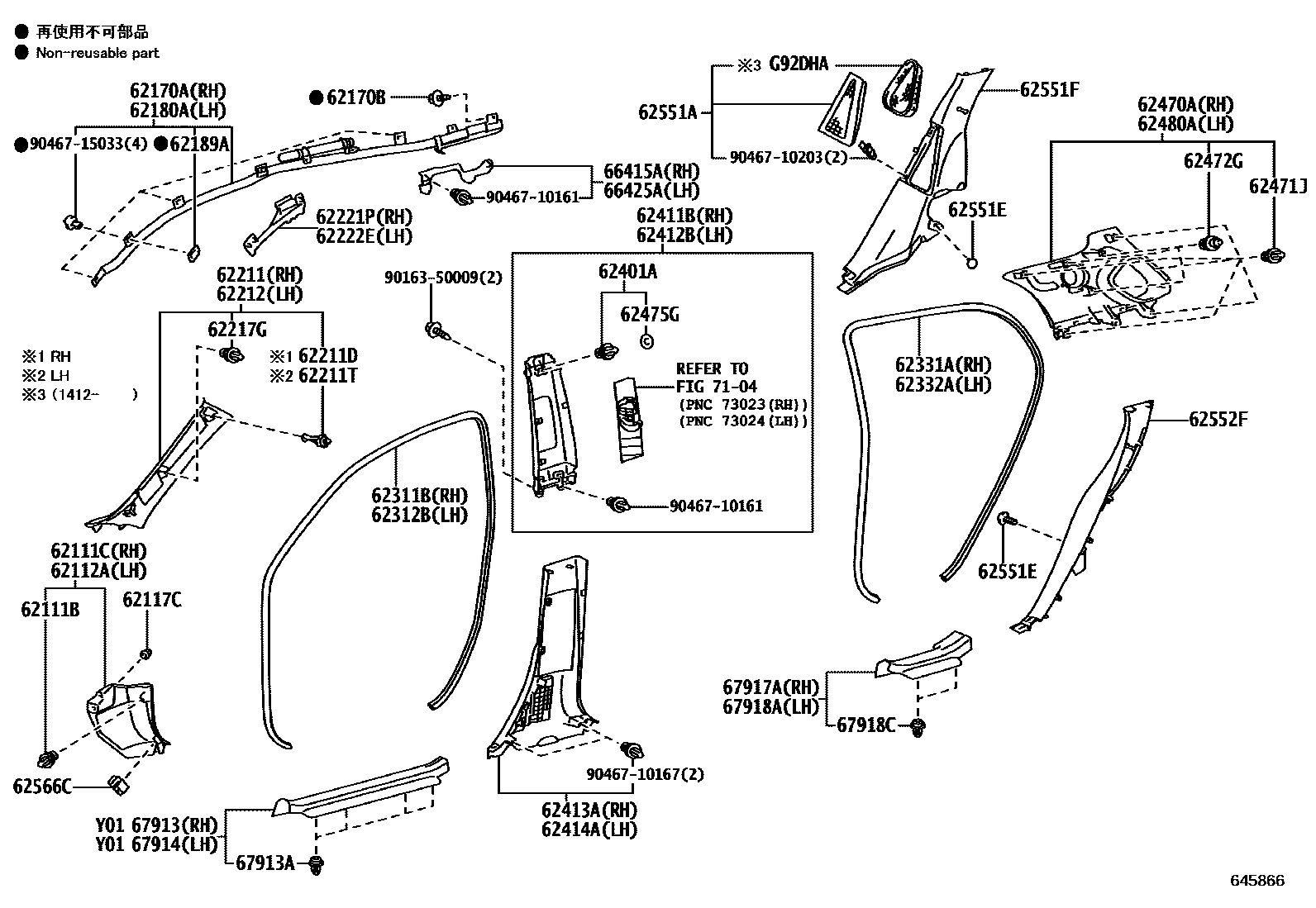

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161×2iZWA10201312

62111CBOARD, COWL SIDE TRIM, RH

main62111-76010-C0iZWA10201012-201307

BLACK,TRIM0#,2#,3#,4#,8#

main62111-76011-C0iZWA10201308-201312

BLACK,TRIM0#,2#,3#,4#,8#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-76010-C0iZWA10201012-201307

BLACK,TRIM0#,2#,3#,4#,8#

main62112-76011-C0iZWA10..B; ZWA10..E201312

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-06147×2iZWA10201211-201312

main90467-06193-C0×2iZWA10201012-201211

BLACK,TRIM0#,2#,3#,4#,8#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-76010iZWA10201012-201312

62170BBOLT, W/WASHER

main90119-06869×10iZWA10201507

main90159-06001×10iZWA10201012-201312

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-76010iZWA10201012-201312

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-20010×8iZWA10201012-201312

62211GARNISH, FRONT PILLAR, RH

main62210-76020-B0supersedes 62210-76010-B0iZWA10..B; ZWA10..E201208-201307

LT.GRAY,TRIM0#,2#,3#,4#,8#; LT.GRAY,TRIM00,01,20,30,40,80

main62210-76021-A2iZWA10..B; ZWA10..E201312-201607

ECRU,TRIM0#,2#,3#,4#,5#,8#; ECRU,TRIM0#,20,30,4#,5#,6#,80

main62210-76021-B0iZWA10..B; ZWA10..E201308-201312

LT.GRAY,TRIM0#,2#,3#,4#,8#; LT.GRAY,TRIM00,01,20,30,40,80

main62210-76022-A2iZWA10..B; ZWA10..E201608

ECRU,TRIM0#,11,20,22,3#,4#,5#,6#,80,82; ECRU,TRIM0#,2#,3#,4#,5#,8#

main62210-76010-C0iZWA10..B201012-201208

main62210-76020-C0iZWA10..B201012-201208

main62210-76021-C0iZWA10..B201308-201312

main62210-76022-C0iZWA10..B201608

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90950-08005iZWA10201312

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-48030iZWA10201405

main90950-08005iZWA10201012-201312

62212GARNISH, FRONT PILLAR, LH

main62220-76020-B0supersedes 62220-76010-B0iZWA10..B; ZWA10..E201208-201307

LT.GRAY,TRIM0#,2#,3#,4#,8#; LT.GRAY,TRIM00,01,20,30,40,80

main62220-76021-A2iZWA10..B; ZWA10..E201312-201607

ECRU,TRIM0#,2#,3#,4#,5#,8#; ECRU,TRIM0#,20,30,4#,5#,6#,80

main62220-76021-B0iZWA10..B; ZWA10..E201308-201312

LT.GRAY,TRIM0#,2#,3#,4#,8#; LT.GRAY,TRIM00,01,20,30,40,80

main62220-76022-A2iZWA10..B; ZWA10..E201608

ECRU,TRIM0#,11,20,22,3#,4#,5#,6#,80,82; ECRU,TRIM0#,2#,3#,4#,5#,8#

main62220-76010-C0iZWA10..B201012-201208

main62220-76020-C0iZWA10..B201012-201208

main62220-76021-C0iZWA10..B201408-201607

main62220-76022-C0iZWA10..B201608

62217GCLIP, FRONT PILLAR GARNISH

main90467-10161×2iZWA10201012-201312

62221PSPACER, FRONT PILLAR, NO.1 RH

main62221-76010iZWA10201312

62222ESPACER, FRONT PILLAR, NO.1 LH

main62222-76010iZWA10201012-201312

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-76010iZWA10201609-201708

main62311-76010-C1iZWA10..B; ZWA10..E201312-201609

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

main62311-76011iZWA10201709

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-76010iZWA10201609-201708

main62312-76010-C1iZWA10..B; ZWA10..E201312-201609

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

main62312-76011iZWA10201709

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-76010-C1iZWA10201012-201312

BLACK,TRIM0#,2#,3#,4#,8#

main62331-76011iZWA10201609-201706

main62331-76011-C1iZWA10..B; ZWA10..E201606-201609

BLACK,TRIM0#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

main62331-76012iZWA10201707

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-76010-C1iZWA10201012-201312

BLACK,TRIM0#,2#,3#,4#,8#

main62332-76011iZWA10201609-201706

main62332-76011-C1iZWA10..B; ZWA10..E201606-201609

BLACK,TRIM0#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

main62332-76012iZWA10201707

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main62707-48010×2iZWA10201012-201312

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-76010-B0iZWA10..B; ZWA10..E201012-201307

LT.GRAY,TRIM0#,2#,3#,4#,8#; LT.GRAY,TRIM00,01,20,30,40,80

main62410-76011-A0iZWA10..B; ZWA10..E201312-201602

ECRU,TRIM0#,2#,3#,4#,5#,8#; ECRU,TRIM0#,20,30,4#,5#,6#,80

main62410-76011-B0iZWA10..B; ZWA10..E201308-201312

LT.GRAY,TRIM0#,2#,3#,4#,8#; LT.GRAY,TRIM00,01,20,30,40,80

main62410-76012-A0iZWA10..B; ZWA10..E201603

ECRU,TRIM0#,11,20,22,3#,4#,5#,6#,80,82; ECRU,TRIM0#,2#,3#,4#,5#,8#

main62410-76010-C1iZWA10..B201012-201307

main62410-76011-C1iZWA10..B201308-201312

main62410-76012-C1iZWA10..B201603

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-76010-B0iZWA10..B; ZWA10..E201012-201307

LT.GRAY,TRIM0#,2#,3#,4#,8#; LT.GRAY,TRIM00,01,20,30,40,80

main62420-76011-A0iZWA10..B; ZWA10..E201312-201602

ECRU,TRIM0#,2#,3#,4#,5#,8#; ECRU,TRIM0#,20,30,4#,5#,6#,80

main62420-76011-B0iZWA10..B; ZWA10..E201308-201312

LT.GRAY,TRIM0#,2#,3#,4#,8#; LT.GRAY,TRIM00,01,20,30,40,80

main62420-76012-A0iZWA10..B; ZWA10..E201603

ECRU,TRIM0#,11,20,22,3#,4#,5#,6#,80,82; ECRU,TRIM0#,2#,3#,4#,5#,8#

main62420-76010-C1iZWA10..B201012-201307

main62420-76011-C1iZWA10..B201408-201602

main62420-76012-C1iZWA10..B201603

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-76010-C0iZWA10201012-201312

BLACK,TRIM0#,2#,3#,4#,8#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-76010-C0iZWA10201012-201312

BLACK,TRIM0#,2#,3#,4#,8#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-76010-B1iZWA10..B; ZWA10..E201012-201307

LT.GRAY,TRIM0#,2#,3#,4#,8#; LT.GRAY,TRIM00,01,20,30,40,80

main62470-76011-A0iZWA10..B; ZWA10..E201312-201512

ECRU,TRIM0#,2#,3#,4#,5#,8#; ECRU,TRIM0#,20,30,4#,5#,6#,80

main62470-76011-B1iZWA10..B; ZWA10..E201308-201312

LT.GRAY,TRIM0#,2#,3#,4#,8#; LT.GRAY,TRIM00,01,20,30,40,80

main62470-76012-A0iZWA10..B; ZWA10..E201601

ECRU,TRIM0#,11,20,22,3#,4#,5#,6#,80,82; ECRU,TRIM0#,2#,3#,4#,5#,8#

main62470-76010-C0iZWA10..B201012-201307

main62470-76011-C0iZWA10..B201308-201312

main62470-76012-C0iZWA10..B201601

main62470-76020-B3iZWA10..B201012-201307

main62470-76020-C1iZWA10..B201012-201307

main62470-76021-B3iZWA10..B201308-201312

main62470-76021-C1iZWA10..B201308-201312

main62470-76040-A0iZWA10..B201312-201512

main62470-76040-C0iZWA10..B201312-201512

main62470-76041-A0iZWA10..B201601

main62470-76041-C0iZWA10..B201601

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161×10iZWA10201012-201312

62472GCLIP (FOR ROOF SIDE GARNISH)

main63395-12150×6iZWA10201012-201312

62475GSEAL, ROOF SIDE, INNER

main62475-48060×2iZWA10201012-201312

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-76010-B1iZWA10..B; ZWA10..E201012-201307

LT.GRAY,TRIM0#,2#,3#,4#,8#; LT.GRAY,TRIM00,01,20,30,40,80

main62480-76011-A0iZWA10..B; ZWA10..E201312-201512

ECRU,TRIM0#,2#,3#,4#,5#,8#; ECRU,TRIM0#,20,30,4#,5#,6#,80

main62480-76011-B1iZWA10..B; ZWA10..E201308-201312

LT.GRAY,TRIM0#,2#,3#,4#,8#; LT.GRAY,TRIM00,01,20,30,40,80

main62480-76012-A0iZWA10..B; ZWA10..E201601

ECRU,TRIM0#,11,20,22,3#,4#,5#,6#,80,82; ECRU,TRIM0#,2#,3#,4#,5#,8#

main62480-76010-C0iZWA10..B201012-201307

main62480-76011-C0iZWA10..B201312-201512

main62480-76012-C0iZWA10..B201601

main62480-76020-B3iZWA10..B201012-201307

main62480-76020-C1iZWA10..B201012-201307

main62480-76021-B3iZWA10..B201308-201312

main62480-76021-C1iZWA10..B201308-201312

main62480-76030-A0iZWA10..B201312-201512

main62480-76030-C0iZWA10..B201312-201512

main62480-76031-A0iZWA10..B201601

main62480-76031-C0iZWA10..B201601

62551ACOVER, REAR SEAT SIDE, RH

main64712-76010-C0iZWA10201012-201307

BLACK,TRIM0#,2#,3#,4#,8#

main64712-76011-C0iZWA10..B; ZWA10..E201312

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-05161-C0×2iZWA10..B; ZWA10..E201312

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

62551FGARNISH, REAR SEAT SIDE, RH

main62551-76010-C0iZWA10201012-201307

BLACK,TRIM0#,2#,3#,4#,8#

main62551-76011-C0iZWA10..B; ZWA10..E201312-201602

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

main62551-76012-C0iZWA10..B; ZWA10..E201603

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-76010-C0iZWA10201012-201312

BLACK,TRIM0#,2#,3#,4#,8#

62566CCLAMP, COWL SIDE TRIM

main62566-30010×2iZWA10201012-201312

66415ASPACER, SIDE RAIL, REAR NO.2 RH

main66415-76010iZWA10201012-201312

66425ASPACER, SIDE RAIL, REAR NO.2 LH

main66425-76010iZWA10201312

67913PLATE, FRONT DOOR SCUFF, RH

main67910-76020-C0iZWA10201012-201307

BLACK,TRIM0#,2#,3#,4#,8#

main67910-76021-C0iZWA10201308-201312

BLACK,TRIM0#,2#,3#,4#,8#

main67910-76030-C0iZWA10..B201012-201307

main67910-76031-C0iZWA10..B201308-201312

main67910-76032-C0iZWA10..B201603

main67910-76040-C0supersedes 67910-76021-C0iZWA10..B; ZWA10..E201312-201602

main67910-76041-C0supersedes 67910-76022-C0iZWA10..B; ZWA10..E201603

67913ACLIP(FOR SCUFF PLATE)

main90467-10161×8iZWA10201012-201312

67914PLATE, FRONT DOOR SCUFF, LH

main67920-76010-C0iZWA10201012-201307

BLACK,TRIM0#,2#,3#,4#,8#

main67920-76011-C0iZWA10201308-201312

BLACK,TRIM0#,2#,3#,4#,8#

main67920-76020-C0iZWA10..B201012-201307

main67920-76021-C0iZWA10..B201312-201602

main67920-76022-C0iZWA10..B201603

main67920-76030-C0supersedes 67920-76011-C0iZWA10..B; ZWA10..E201312-201602

main67920-76031-C0supersedes 67920-76012-C0iZWA10..B; ZWA10..E201603

67917APLATE, REAR DOOR SCUFF, RH

main67930-76020-C0iZWA10201012-201307

BLACK,TRIM0#,2#,3#,4#,8#

main67930-76021-C0iZWA10..B; ZWA10..E201312

67918APLATE, REAR DOOR SCUFF, LH

main67940-76010-C0iZWA10201012-201307

BLACK,TRIM0#,2#,3#,4#,8#

main67940-76011-C0iZWA10201308-201312

BLACK,TRIM0#,2#,3#,4#,8#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-10161×4iZWA10201312

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

G92DHAFILTER, HV BATTERY INTAKE, NO.1

mainG92DH76020iZWA10201412

9016350009

main90163-50009

9046710161

main90467-10161

9046710167

main90467-10167

9046710203

main90467-10203

9046715033

main90467-15033

49 parts on this diagram · 1 diagram in section
