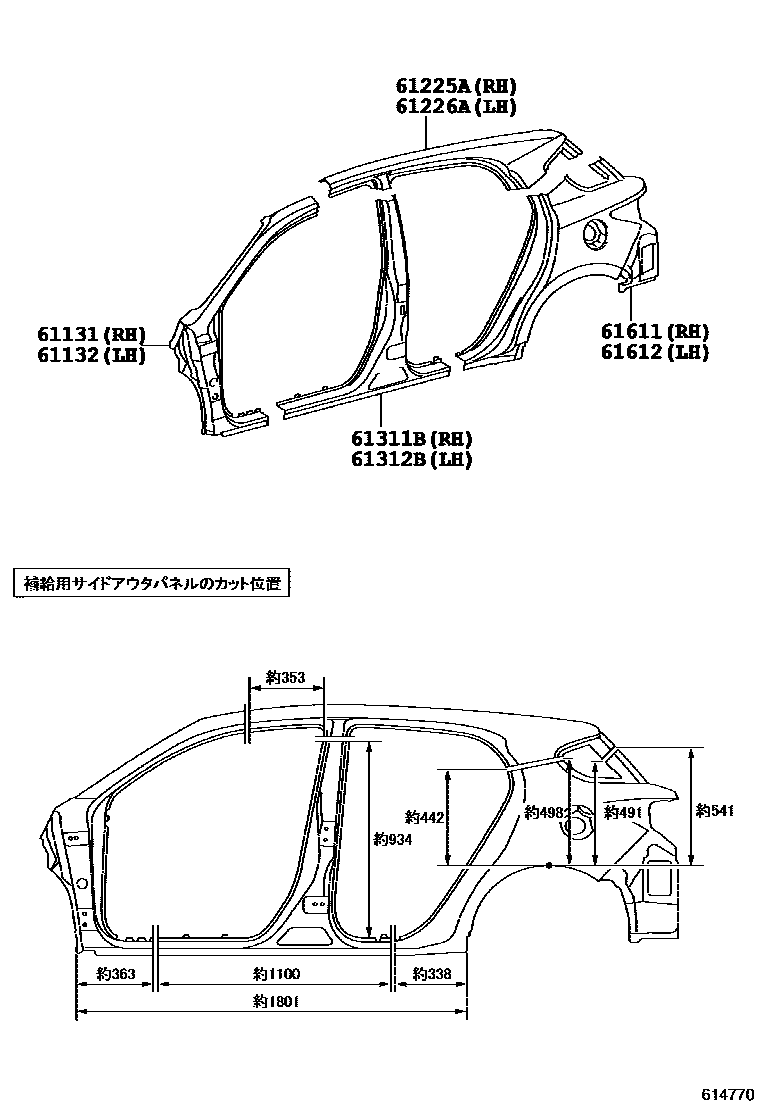

Toyota LEXUS CT200H — SIDE MEMBER

61131PILLAR, FRONT BODY, UPPER OUTER RH

61131-76010

61132PILLAR, FRONT BODY, UPPER OUTER LH

61132-76010

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

61311BPILLAR, CENTER BODY, OUTER RH

61312BPILLAR, CENTER BODY, OUTER LH

61611PANEL, QUARTER, RH

61611-76010

61612PANEL, QUARTER, LH

61612-76010

8 parts on this diagram · 3 diagrams in section

SIDE MEMBER for Toyota LEXUS CT200H

This section contains 66 genuine Toyota parts for the SIDE MEMBER system of the Toyota LEXUS CT200H. Key components include: BRACKET, FRONT FENDER, REAR RH, BRACKET, FRONT FENDER, REAR LH, HOLE PLUG, PROTECTOR, QUARTER PANEL, RH, PROTECTOR, QUARTER PANEL, LH.
