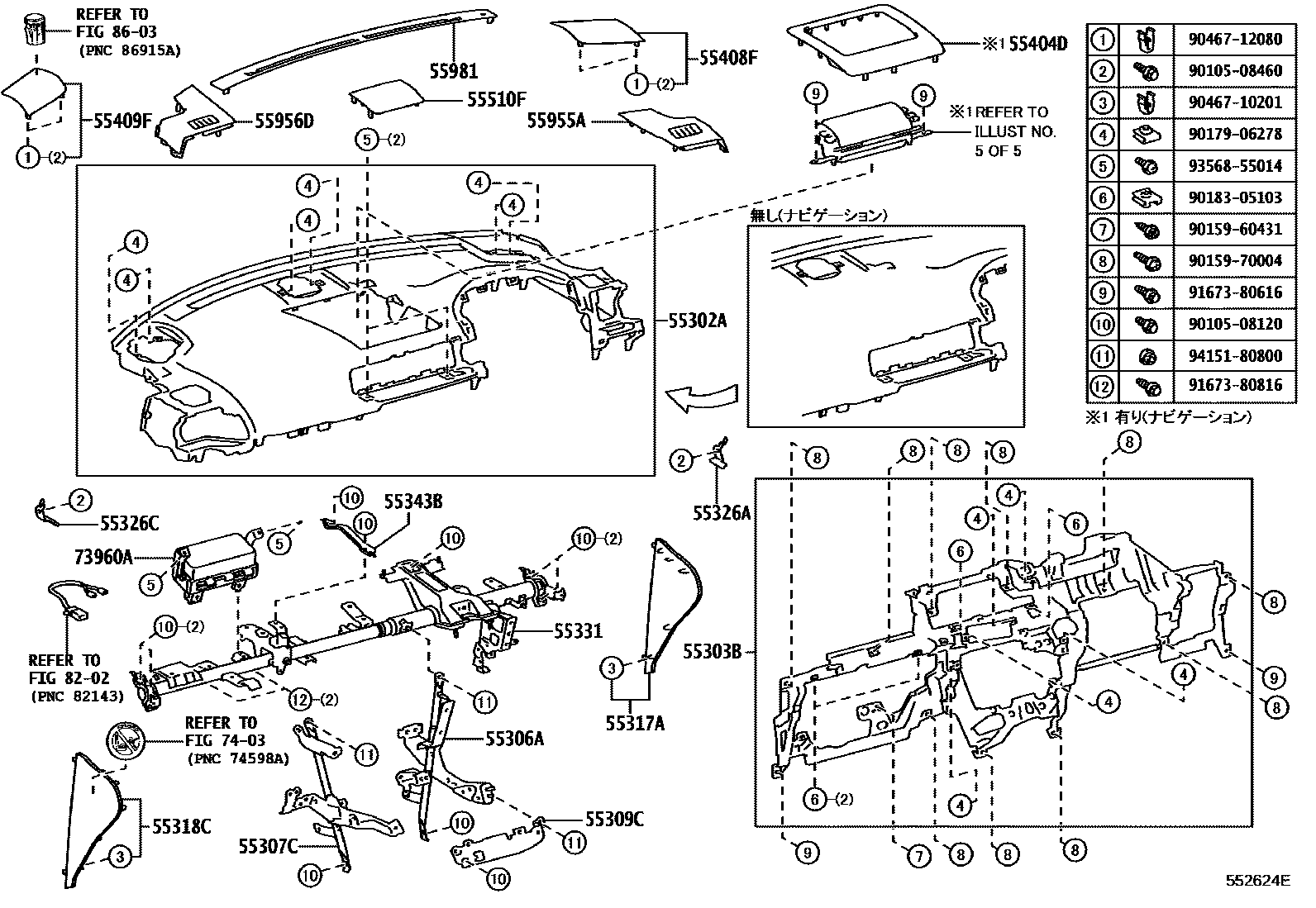

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1��������� 0004 1����� 0005 1���������� 0006 1��������� 0007 1����� 0008 1���������� 0009 1��������� 0010 1����� 0011 1���������� 0012 1

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-76030-C0iZWA10201012-201312

BLACK,TRIM0#,2#,3#,4#,8#

main55302-76040-C0iZWA10..B; ZWA10..E201312-201708

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

main55302-76080-C0iZWA10..B; ZWA10..E201708

BLACK,TRIM0#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-76020iZWA10201312

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-76020iZWA10201012-201312

main55306-76021iZWA10201602

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-76020iZWA10201012-201312

main55307-76021iZWA10201602

55309CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER

main55309-76020iZWA10201012-201312

main55309-76021iZWA10201601

55317APANEL, INSTRUMENT SIDE, RH

main55317-76010-C0iZWA10..B; ZWA10..E201312

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-76010-C0iZWA10..B; ZWA10..E201312

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-76010iZWA10201312

55326CSTAY, INSTRUMENT PANEL, NO.2

main55326-76020iZWA10201312

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-76020iZWA10201312

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-76020iZWA10201012-201312

55404DPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-76030-C0iZWA10..B; ZWA10..E201312-201708

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

main55404-76080-C0iZWA10..B; ZWA10..E201708

BLACK,TRIM0#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-76020-C0supersedes 55408-76010-C0iZWA10201208-201312

BLACK,TRIM0#,2#,3#,4#,8#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-76020-C0supersedes 55409-76010-C0iZWA10..B; ZWA10..E201312

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-76040-C0supersedes 55510-76030-C0iZWA10201208-201312

BLACK,TRIM0#,2#,3#,4#,8#

55955APLATE, DEFROSTER NOZZLE OPENING, NO.1

main55955-76020-C0iZWA10201012-201312

BLACK,TRIM0#,2#,3#,4#,8#

55956DPLATE, DEFROSTER NOZZLE OPENING, NO.2

main55956-76020-C0iZWA10..B; ZWA10..E201312

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-76020-C0iZWA10..B; ZWA10..E201312

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#; BLACK,TRIM0#,2#,3#,4#,5#,8#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-76020iZWA10201012-201301

main73960-76021iZWA10201302-201312

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8202WIRING & CLAMP

→ Go to FIG 82-02

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

9010508120

main90105-08120

9010508460

main90105-08460

9015960431

main90159-60431

9015970004

main90159-70004

9017906278

main90179-06278

9018305103

main90183-05103

9046710201

main90467-10201

9046712080

main90467-12080

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

34 parts on this diagram · 12 diagrams in section
