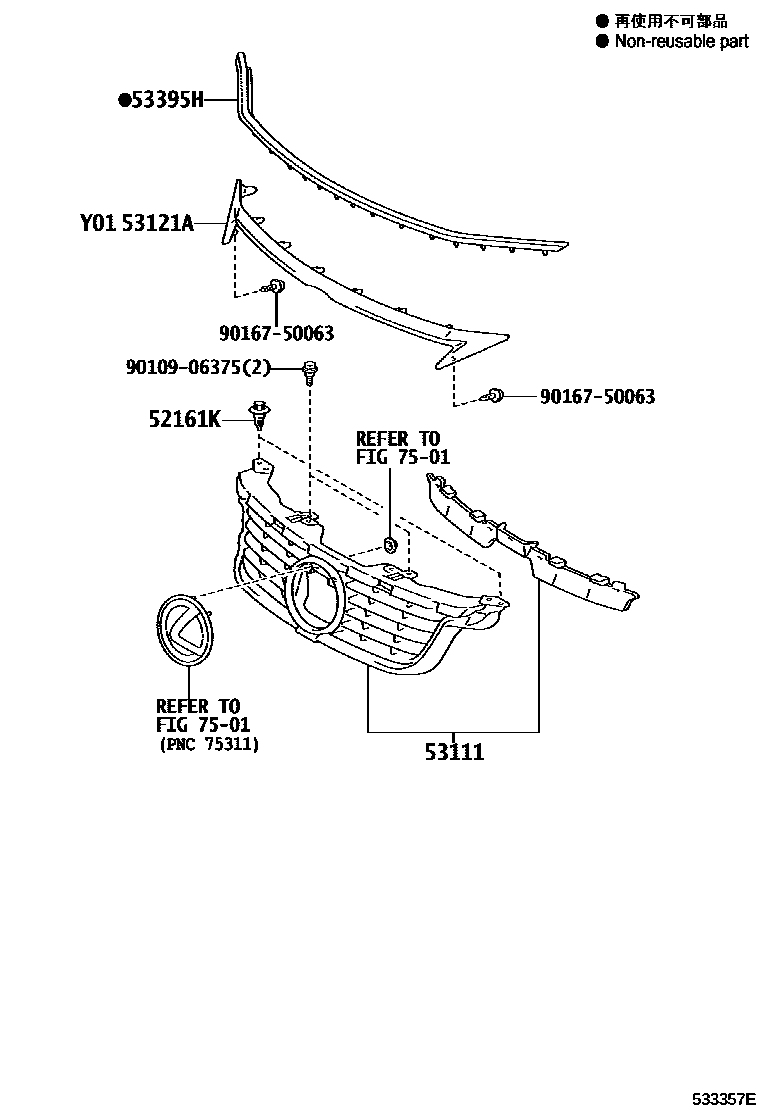

RADIATOR GRILLE

0001 1 0002 1F SPORT 0003 1 0004 1F SPORT 0005 1 0006 1F SPORT

52161KPIECE, FRONT BUMPER

main52161-16010×2iZWA10201312

53111GRILLE, RADIATOR

main53111-76020iZWA10201312-201708

main53111-76080iZWA10201708

main53111-76900iZWA10201012-201312

main53111-76030iZWA10..B201012-201108

main53111-76040iZWA10..B201312-201708

main53111-76060iZWA10..B201412-201508

main53111-76090iZWA10..B201708

main53111-76210iZWA10..B202203

53121AMOULDING, RADIATOR GRILLE

main53121-76010iZWA10201012-201312

main53121-76030iZWA10201312

main53121-76050iZWA10..B201708

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-76010iZWA10201012-201312

main53395-76011iZWA10201312

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9010906375

main90109-06375

9016750063

main90167-50063

7 parts on this diagram · 6 diagrams in section
