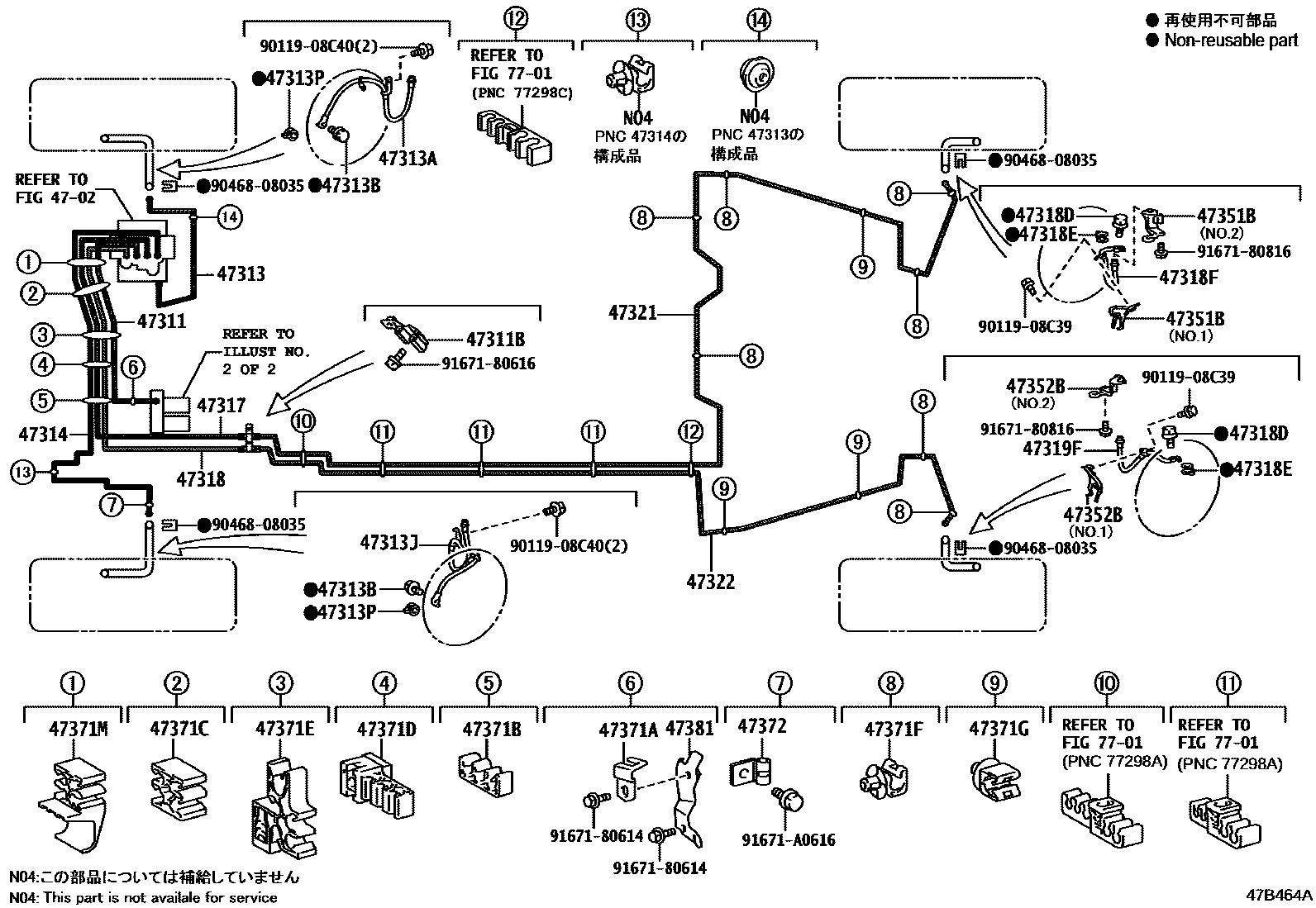

BRAKE TUBE & CLAMP

0001 1 0002 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-75010iZWA10201012-201312

main47311-76010iZWA10201312

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10279iZWA10201012-201312

47313TUBE, FRONT BRAKE, NO.3

main47313-75010iZWA10201012-201312

main47313-76010iZWA10201312

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02G21iZWA10201312

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iZWA10201012-201312

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02G22iZWA10201012-201312

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iZWA10201012-201312

47314TUBE, FRONT BRAKE, NO.4

main47314-75010iZWA10201012-201312

main47314-76020iZWA10201312

47317TUBE, FRONT BRAKE, NO.7

main47317-75010iZWA10201012-201312

main47317-76010iZWA10201312

47318TUBE, FRONT BRAKE, NO.8

main47318-75010iZWA10201012-201312

main47318-76010iZWA10201312

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iZWA10201012-201312

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iZWA10201012-201312

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02G32iZWA10201012-201312

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02G33iZWA10201312

47321TUBE, REAR BRAKE, NO.1

main47321-76010iZWA10201012-201312

main47321-76020iZWA10201312

47322TUBE, REAR BRAKE, NO.2

main47322-76010iZWA10201012-201312

main47322-76030iZWA10201312

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-12210iZWA10201312

main47351-12220iZWA10201012-201312

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-12180iZWA10201012-201312

main47352-12190iZWA10201012-201312

47371ACLAMP, BRAKE TUBE, NO.1

main47371-47060iZWA10201012-201312

47371BCLAMP, BRAKE TUBE, NO.6

main90464-00857iZWA10201012-201312

47371CCLAMP, BRAKE TUBE, NO.7

main90464-00876iZWA10201312

main90464-00883iZWA10201012-201312

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01D08iZWA10201312

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01D63iZWA10201012-201312

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D17×7iZWA10201012-201312

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D29×3iZWA10201012-201312

main90949-01E01×3iZWA10201312

47371MCLAMP, BRAKE TUBE, NO.13

main90949-01D77iZWA10201012-201312

47372CLAMP, BRAKE TUBE, NO.2

main90461-10781iZWA10201012-201312

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-75010iZWA10201012-201312

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908C39

main90119-08C39

9011908C40

main90119-08C40

9046808035

main90468-08035

9167180614

main91671-80614

9167180616

main91671-80616

9167180816

main91671-80816

91671A0616

main91671-A0616

37 parts on this diagram · 2 diagrams in section
