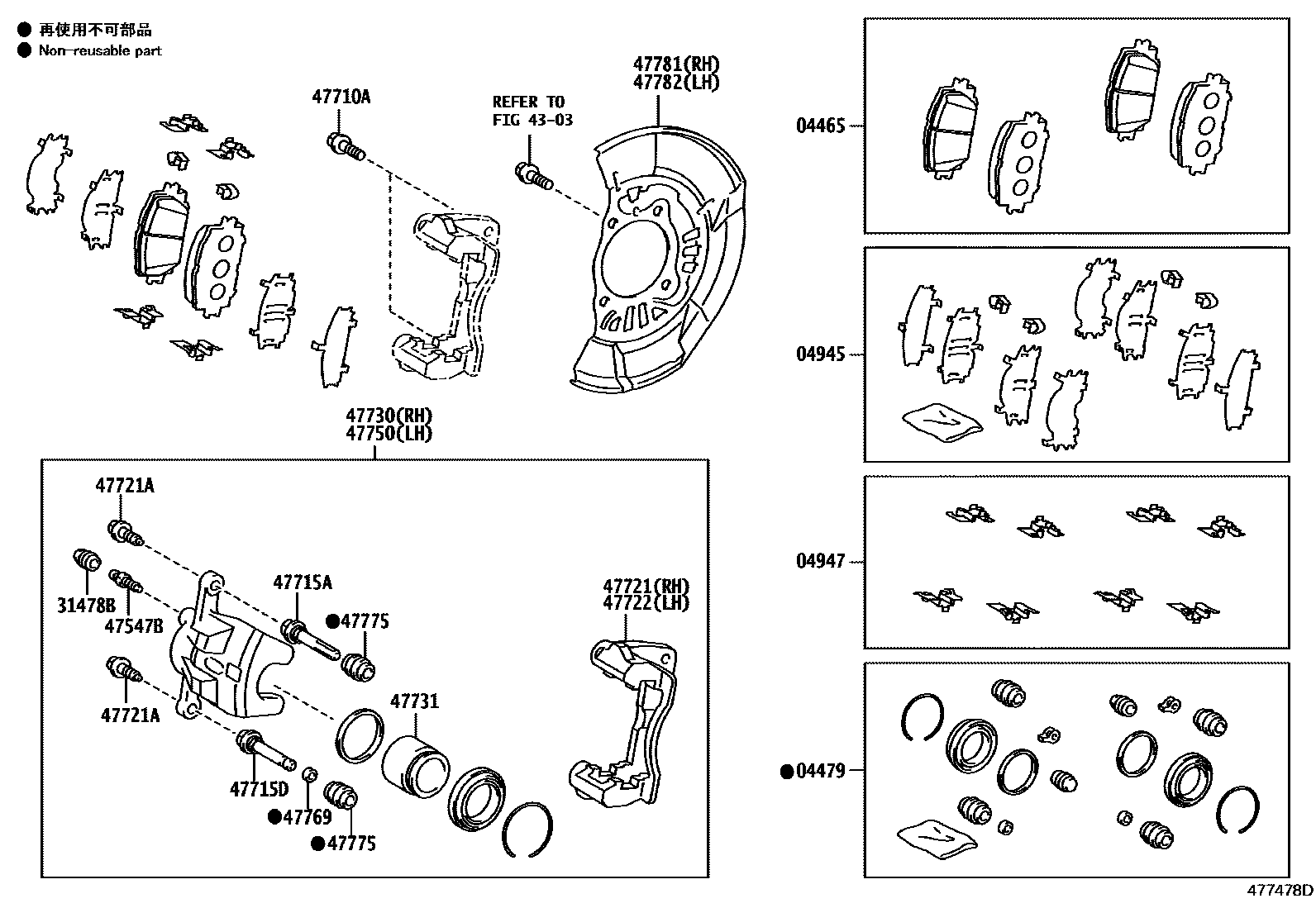

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-47060iZWA10201012-201105

sub04465-47070

main04465-47070iZWA10201105-201312

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-47040iZWA10201012-201312

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-47020iZWA10201012-201312

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iZWA10201012-201312

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-50020iZWA10201012-201312

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZWA10201012-201312

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main91552-C1250iZWA10201012-201312

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iZWA10201012-201312

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iZWA10201012-201312

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-47060iZWA10201012-201312

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iZWA10201012-201312

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-47060iZWA10201012-201312

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-47060iZWA10201012-201312

47731PISTON, FRONT DISC BRAKE

main47731-47060iZWA10201012-201312

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-47060iZWA10201012-201312

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iZWA10201012-201312

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52190iZWA10201012-201312

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-47030iZWA10201012-201312

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-47020iZWA10201012-201312

20 parts on this diagram · 1 diagram in section
