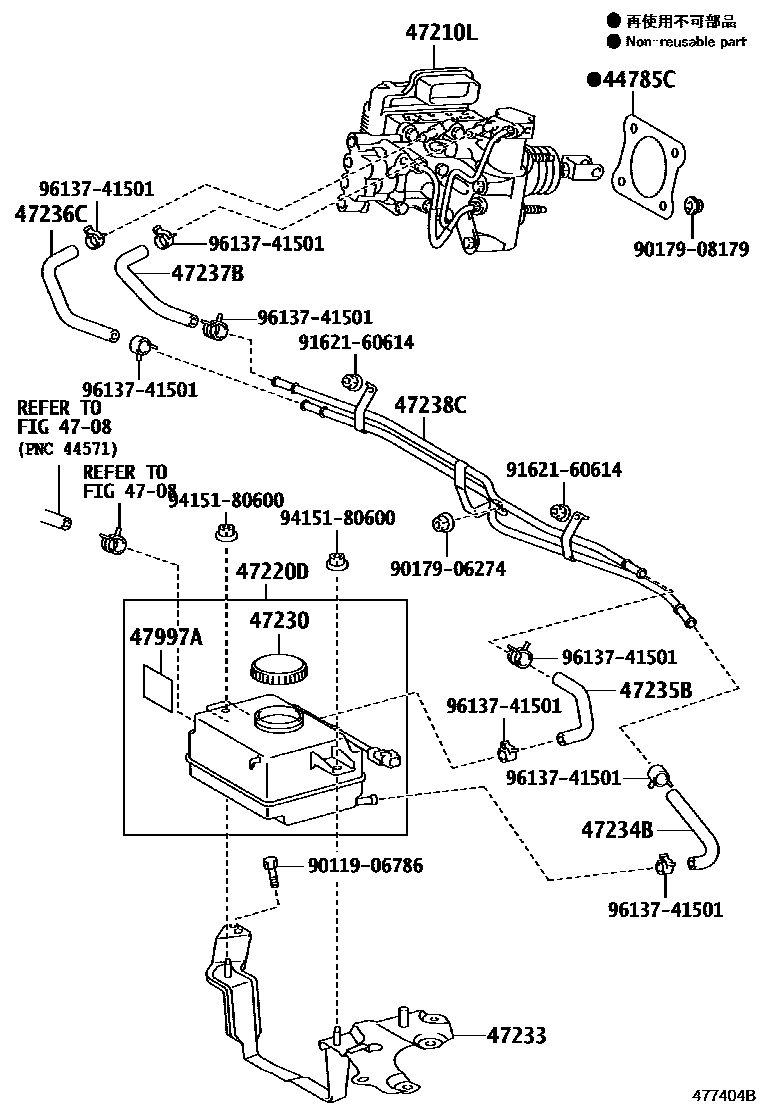

BRAKE MASTER CYLINDER

44785CGASKET, BRAKE BOOSTER

main44785-12040iZWA10201012-201312

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-76010iZWA10..E201012-201312

main47050-76070iZWA10..E201312-201408

main47050-76071iZWA10..E201408-201508

main47050-76072iZWA10..E201508-201708

main47050-76130iZWA10..E201708-202008

main47050-76410iZWA10..E202008

main47050-76050supersedes 47050-76030iZWA10..B201012-201312

main47050-76110supersedes 47050-76090iZWA10..B201312-201408

main47050-76111supersedes 47050-76091iZWA10..B201408-201508

main47050-76112supersedes 47050-76092iZWA10..B201508-201708

main47050-76170supersedes 47050-76150iZWA10..B201708-202008

main47050-76450supersedes 47050-76430iZWA10..B202008

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-76010iZWA10201012-201312

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iZWA10201612

main47230-58010iZWA10201312-201612

47233BRACKET, RESERVOIR

main47233-76010iZWA10201012-201312

47234BTUBE, RESERVOIR, NO.1

main47234-76010iZWA10201012-201312

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-76010iZWA10201012-201312

47236CHOSE, RESERVOIR TUBE

main47236-76010iZWA10201012-201312

47237BHOSE, RESERVIOR TUBE

main47237-76010iZWA10201012-201312

47238CTUBE, RESERVOIR

main47238-76010iZWA10201012-201312

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iZWA10201012-201312

9011906786

main90119-06786

9017906274

main90179-06274

9017908179

main90179-08179

9162160614

main91621-60614

9415180600

main94151-80600

9613741501

main96137-41501

18 parts on this diagram · 1 diagram in section
