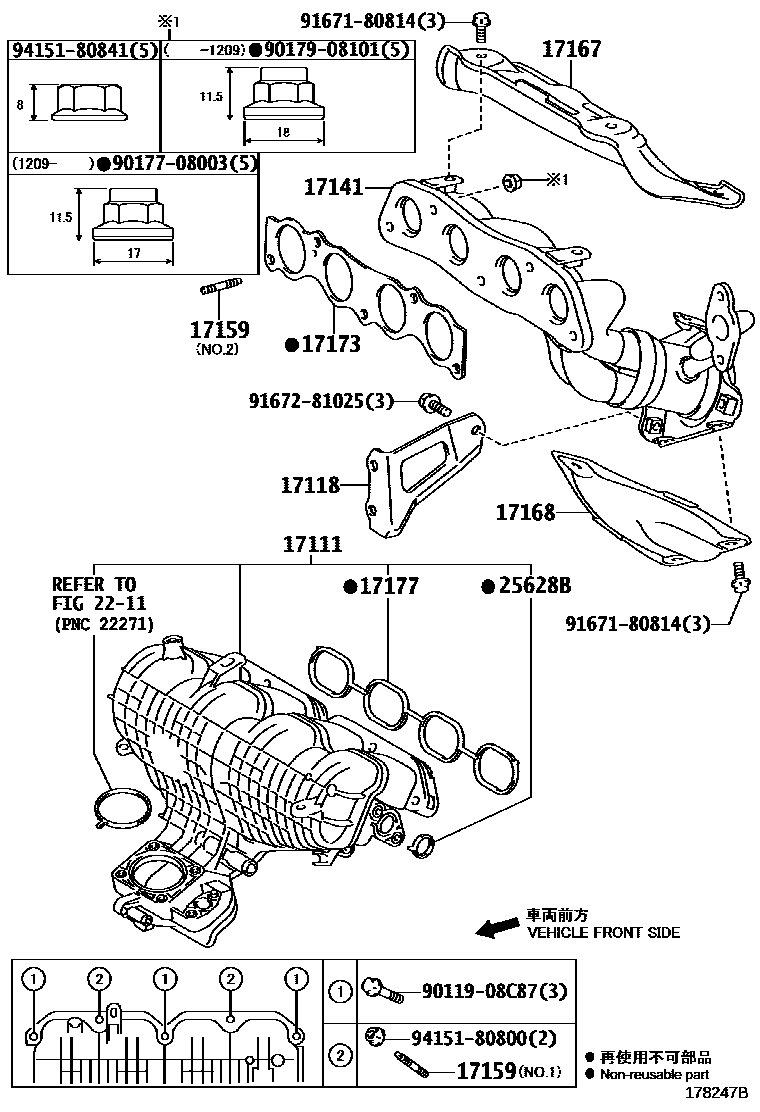

MANIFOLD

17111MANIFOLD, INTAKE

main17120-37050i2ZRFXE..ZWA10201012-201104

main17120-37051i2ZRFXE..ZWA10201104-201110

main17120-37052i2ZRFXE..ZWA10201110-201210

main17120-37053i2ZRFXE..ZWA10201210-201211

main17120-37054i2ZRFXE..ZWA10201211-201312

17118STAY, MANIFOLD

main17118-37080i2ZRFXE..ZWA10201012-201312

17141MANIFOLD, EXHAUST

main17141-37110i2ZRFXE..ZWA10201012-201103

main17141-37150i2ZRFXE..ZWA10201103-201312

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i2ZRFXE..ZWA10201012-201312

main90126-08052×5i2ZRFXE..ZWA10201012-201312

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-37080i2ZRFXE..ZWA10201012-201312

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-37110i2ZRFXE..ZWA10201012-201312

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-37010i2ZRFXE..ZWA10201012-201312

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-37030i2ZRFXE..ZWA10201012-201312

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25628BGASKET, EGR INLET

main25628-28010i2ZRFXE..ZWA10201012-201312

9011908C87

main90119-08C87

9017708003

main90177-08003

9017908101

main90179-08101

9167180814

main91671-80814

9167281025

main91672-81025

9415180800

main94151-80800

9415180841

main94151-80841

17 parts on this diagram · 1 diagram in section
