ENGINE OVERHAUL GASKET KIT

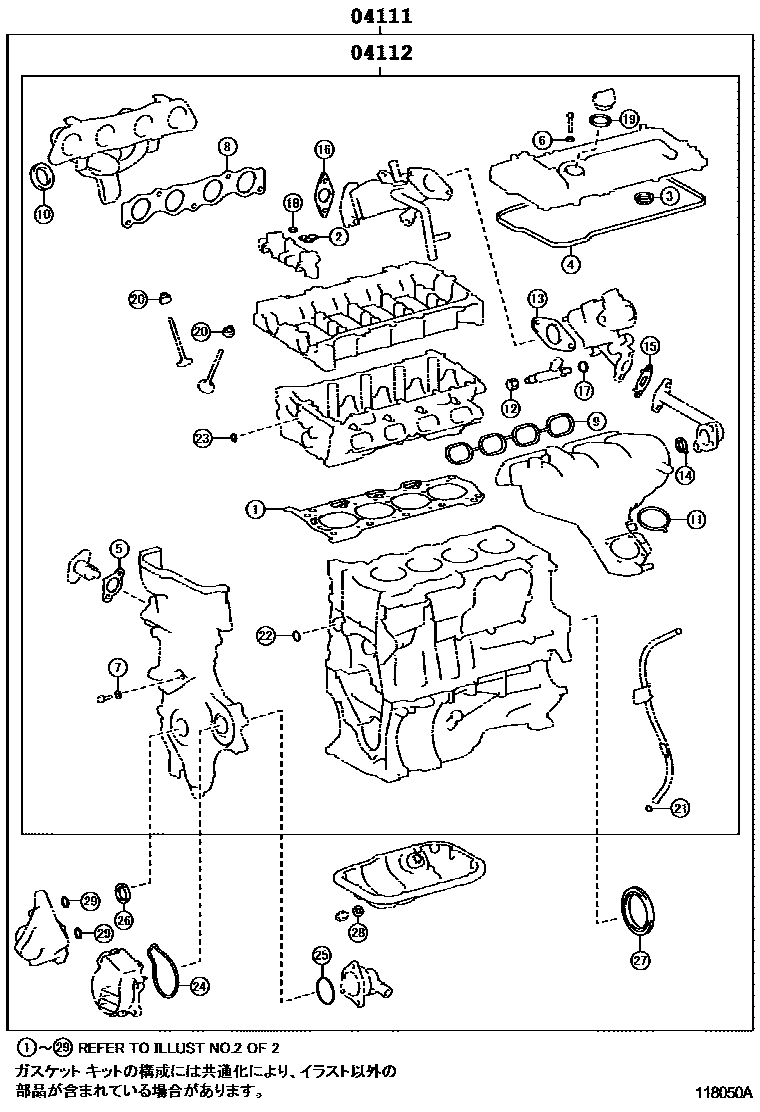

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-37310i201012-201110
sub04111-37312
main04111-37312i201110-201202
sub04111-37313
main04111-37313i201203-201408
sub04111-37314
main04111-37314i201408-201502
sub04111-37315
main04111-37315i201502-202109
sub04111-37316
main04111-37316i202110
04112GASKET KIT, ENGINE VALVE GRIND
main04112-37250i201012-201110
sub04112-37251
main04112-37251i201110-201202
sub04112-37252
main04112-37252i201203-201502
sub04112-37253
main04112-37253i201502-202109
sub04112-37254
main04112-37254i202110

2 parts on this diagram · 2 diagrams in section
