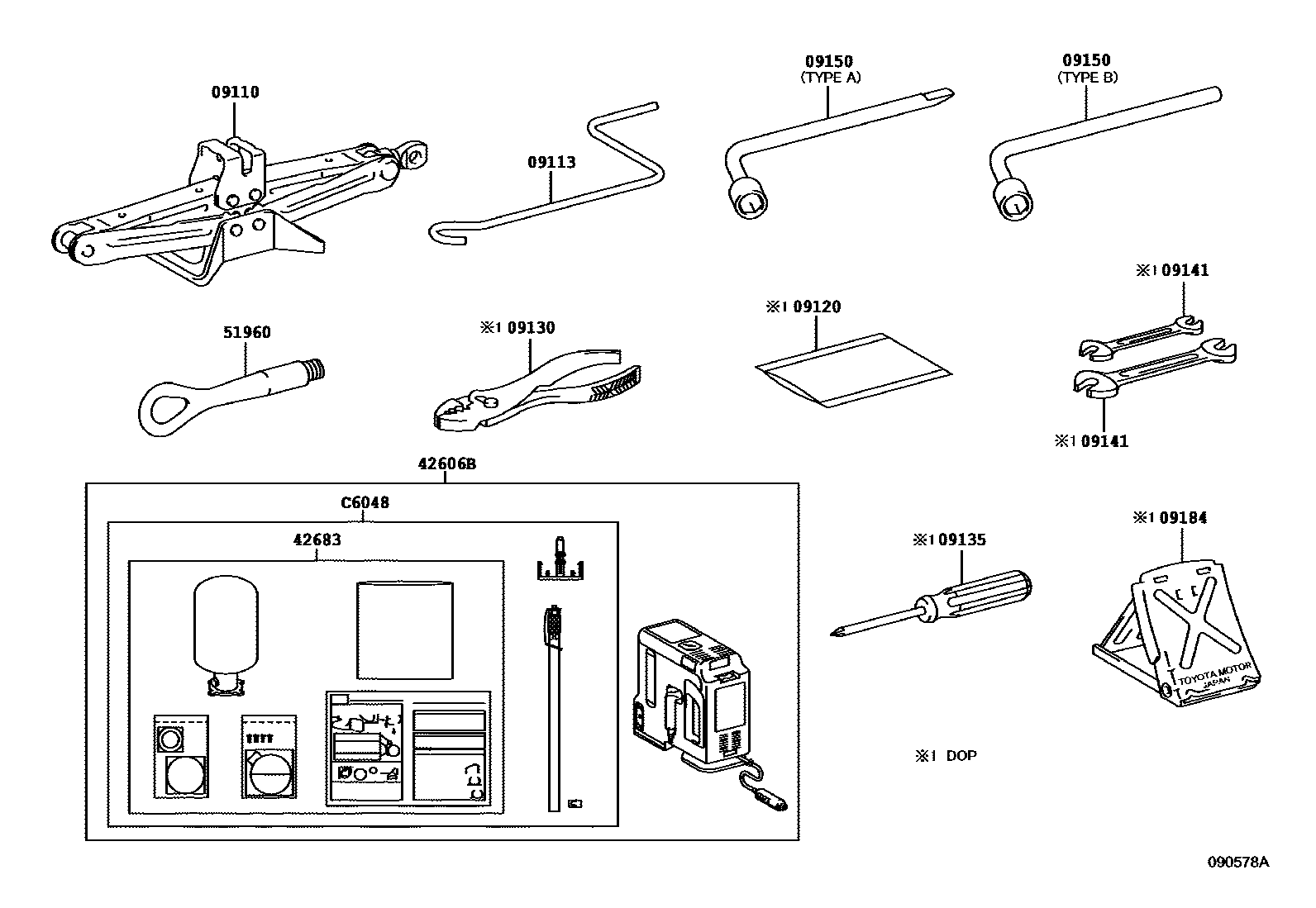

STANDARD TOOL

09110JACK ASSY

main09111-33030iZWA10201012-201512

sub09111-76010

main09111-76010iZWA10201601-202109

sub09111-76011

main09111-76011iZWA10202110

09113HANDLE, JACK

main09113-52030iZWA10201012-201111

main09113-52031iZWA10201112-201312

09120BAG, TOOL

main09120-28040

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-35070iZWA10..E201012-201208

main09150-48010iZWA10..B201012-201208

main09150-76010iZWA10..E201208-201312

main09150-76020iZWA10..B201208-201312

09184STOPPER, WHEEL

main09184-00010

42606BREPAIR KIT, TUBELESS TIRE

main42606-50010iZWA10201012-201205

sub42606-50011

main42606-50011iZWA10201206-201312

42683SEAL, TIRE REPAIR

main42683-50010iZWA10201012-201206

sub42683-50011

main42683-50011iZWA10201206-201312

51960HOOK ASSY, FRONT

main51961-50040iZWA10201012-201205

sub51961-50042

main51961-50042iZWA10201205-201312

C6048REPAIR SET, TIRE

mainC604850010iZWA10201012-201206

subC6048-50011

mainC604850011iZWA10201206-201312

12 parts on this diagram · 1 diagram in section
