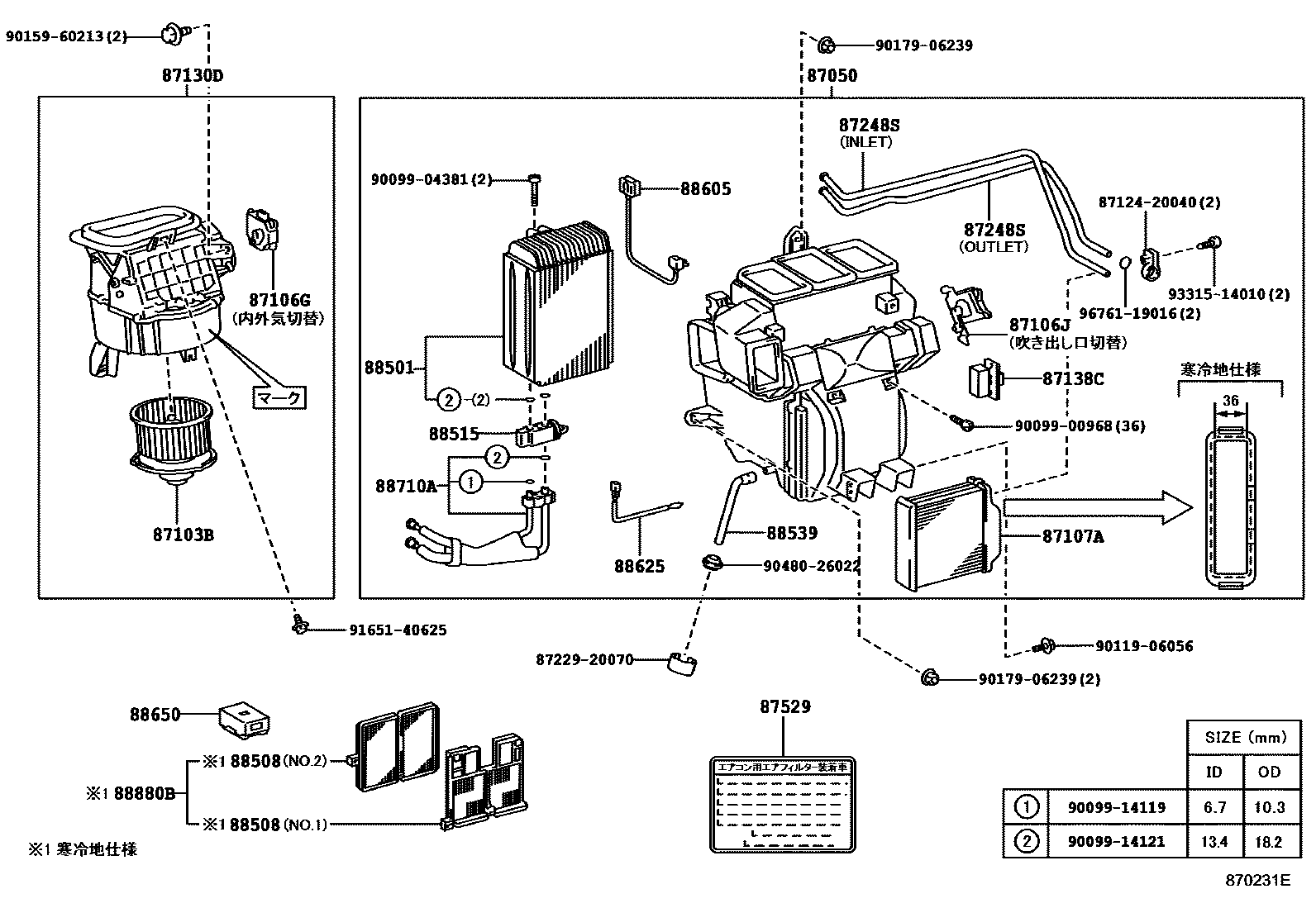

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL 0002 1AUTO

87050RADIATOR ASSY, AIR CONDITIONER

main87050-20020iAT210,212,CT21#199608-199808

main87050-20130iAT210,212,CT21#199608-199808

main87050-20240iAT212199608-199704

main87050-20370iAT210,212199704-199808

main87050-20380iAT211,212,CT21#,ST215199808

main87050-20390iAT210199808

main87050-20400iAT212199808

main87050-20410iAT211,212,CT21#,ST215199808

main87050-20420iAT210199808

main87050-20430iAT212199808

main87050-21050iAT211,ST215; CT21#199608-199808

main87050-21060iAT211,ST215; CT21#199608-199808

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-20110iAT21#,CT21#,ST215199808

main87103-22100iAT21#,CT21#,ST215199608-199610

main87103-22120iAT21#,CT21#,ST215199611-199808

87106GSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-20360iAT21#,CT21#,ST215199608

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-20220iAT21#,CT21#,ST215199608-199808

main87106-20400iAT21#,CT21#,ST215199808

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-20600iAT21#,CT21#,ST215199608

main87107-20680iAT21#,CT21#,ST215199608

87130DBLOWER ASSY

main87130-20530iAT21#,CT21#,ST215199608-199809

main87130-20640iAT21#,CT21#,ST215199809

87138CRESISTOR, BLOWER

main87138-20320iAT210,212,CT21#199608-199808

87248SPIPE, FRONT HEATER RADIATOR WATER

main87248-20360iAT21#,CT21#,ST215199608

main87248-20370iAT21#,CT21#,ST215199608

87529PLATE, AIR FILTER CAUTION

main87529-50020iAT21#,CT21#,ST215199808

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20291iAT21#,CT21#,ST215199608

88508FILTER SUB-ASSY, CLEAN AIR

main88508-20020iAT21#,CT21#,ST215199608-199703

main88508-20030iAT21#,CT21#,ST215199608-199703

main88508-20060iAT21#,CT21#,ST215199703-200112

main88508-20070iAT21#,CT21#,ST215199703-200112

88515VALVE, COOLER EXPANSION

main88515-20100iAT21#,CT21#,ST215199608

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20270iAT21#,CT21#,ST215199608

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-2D470iAT21#,CT21#,ST215199608

88625THERMISTOR, COOLER, NO.1

main88625-3A090iAT21#,CT21#,ST215199608

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-2B470iAT212199608-199808

main88650-2B480iAT210199608-199808

main88650-2B490iCT21#199608-199808

main88650-2B620iAT212199808

88710ATUBE ASSY, AIR CONDITIONER

main88710-20600iAT21#,CT21#,ST215199608

88880BFILTER ASSY, CLEAN AIR

main88880-20010iAT21#,CT21#,ST215199608-199703

main88880-20050iAT210199808-200112

8712420040CLAMP, HEATER

main87124-20040

8722920070PACKING, HEATER INLET HOLE COVER

main87229-20070

9009900968

main90099-00968

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9011906056

main90119-06056

9015960213

main90159-60213

9017906239

main90179-06239

9048026022

main90480-26022

9165140625

main91651-40625

9331514010

main93315-14010

9676119016

main96761-19016

31 parts on this diagram · 2 diagrams in section
