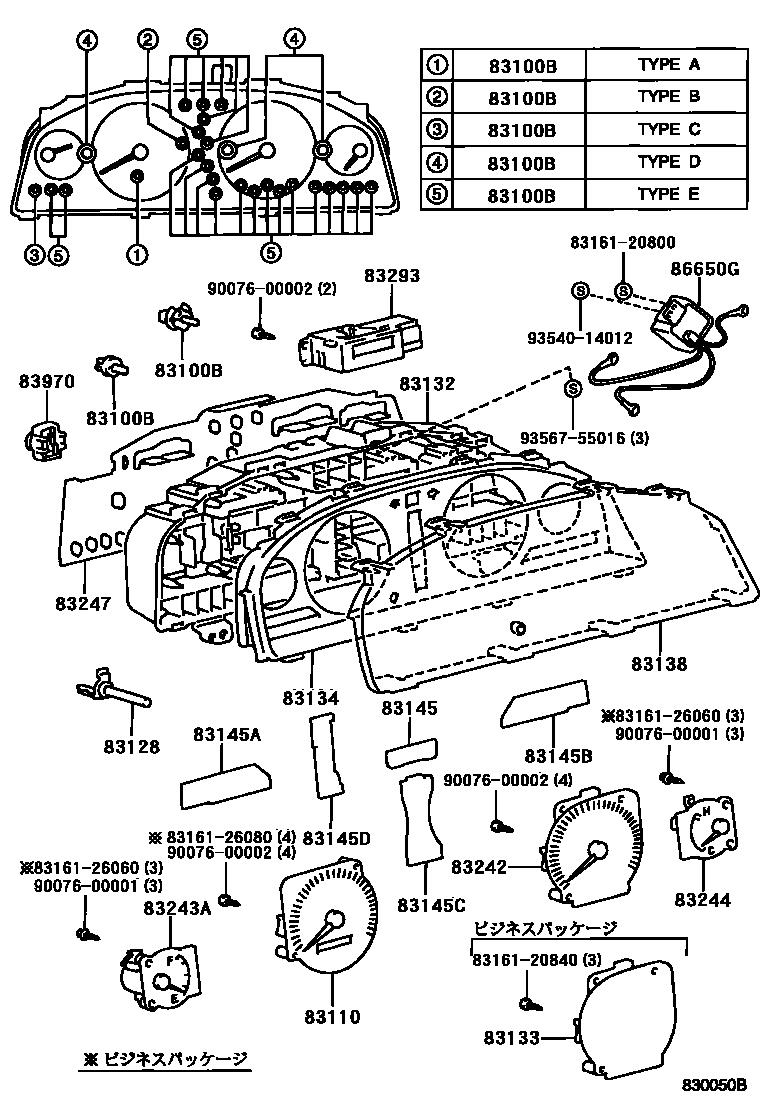

METER

0001 1 0002 1 0003 1����������-�� 0004 1�������� 0005 1����� & ���� 0006 1����� & ���� - �������� 0007 1 0008 1

83100BBULB, COMBINATION METER, NO.1

main83120-60020×20iAT210,212,ST215..MTM; AT210,CT211..4FC; AT211,CT216,ST215..4FC; AT211..4FC; AT211..5F; AT212..4FC; CT211..5F; ST215..4FC; ST215..5F199808

main84999-30040×6iAT211,ST215..4FC199808

main90010-06001iAT211,212,CT21#,ST215199608-199808

main90010-06002iAT211,212,CT21#,ST215199608-199808

main90010-06003iAT210,212,CT21#; AT211,ST215199808

main90010-06006×3iAT212..4FC;AT211,CT21#,ST215; AT212..5F199808

main90010-06013iAT210199608-199808

main90010-06014iAT210199608-199808

main90010-06018×3iAT210199608-199808

main90010-06036iAT211,212,CT21#,ST215199808

main90010-06037iAT210199808

83110SPEEDOMETER ASSY

main83220-20020iAT210199608-199808

main83220-20030iAT212199711

main83220-20110iAT211,212,CT21#,ST215199608-199808

main83220-20111iAT211,212,CT21#,ST215199808

main83220-20180iAT211..5F199808

main83220-20190iAT211..4FC199808

main83220-20210iST215..5F199808

main83220-20220iST215..4FC199808

main83220-20240iAT210199808

83128KNOB, TRIP COUNTER

main83224-44010iAT21#,CT21#,ST215199608

83132CASE, COMBINATION METER

main83841-20130iAT212199711

main83841-20390iAT21#,CT21#,ST215199808

main83841-20410iAT21#,CT21#,ST215199608-199808

main83843-20590iAT211,ST215199808

83133PLATE, COMBINATION METER, NO.1

main83811-20590iAT211,ST215199808

main83811-20740iAT212199711

83134COVER, COMBINATION METER, NO.1

main83821-20130iAT212..5F199711

main83821-20140iAT212..4FC199711

main83821-20590iAT211,ST215199808

main83821-44010iAT21#,CT21#,ST215..4FC199808

main83821-44040iAT21#,CT210,211,215,ST215..MTM199608

main83851-44010iAT211,212,CT210,ST215..4FC199608-199808

83138GLASS, SPEEDOMETER

main83852-20130iAT21#,CT21#,ST215199608

main83852-20590iAT211,ST215199808

83145LENS, METER, NO.1

main83831-20130iAT21#,CT21#,ST215199608

83145ALENS, METER, NO.2

main83831-20180iCT21#199608-199808

main83831-20610iCT21#199808

main83832-20130iAT21#,ST215199608

83145BLENS, METER, NO.3

main83831-20140iAT211..4FC199608-199801

main83831-20150iAT212;AT210,ST215..MTM199608

main83831-20170iST215..4FC199808

main83831-20660iCT216199808

main83832-20180iCT210,211,215199608

main83833-20130iAT211..5F199608

83145CLENS, METER, NO.4

main83831-44010iAT21#,CT210,211,216,ST215..4FC199608

main83832-20140iAT212..4FC199711

83145DLENS, METER, NO.5

main83887-20140iAT212..4FC199711

main83887-44010iAT21#,CT210,211,216,ST215..4FC199608

83242TACHOMETER ASSY, ENGINE

main83881-20390iAT212,CT216,ST215199808

main83881-20410iAT211,212199608-199808

main83881-20411iAT211199808

main83881-20430iST215199608-199808

main83881-20450iCT21#199608-199808

main83881-20451iCT211199808

main83881-20470iAT210199608-199808

main83881-20800iAT210199808

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-20130iAT212199711

main83882-20390iAT211,212,CT211199808

main83882-20410iAT211,212,CT21#,ST215199608-199808

main83882-20430iCT216,ST215199808

main83882-20470iAT210199608-199808

main83882-20590iAT211,ST215199808-200010

main83882-20591iAT211,ST215200010

main83882-20800iAT210199808

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-20130iAT212199711

main83883-20390iAT211,212,CT21#,ST215199808

main83883-20410iAT211,212,CT21#,ST215199608-199808

main83883-20470iAT210199608-199808

main83883-20590iAT211,ST215199808-200010

main83883-20591iAT211,ST215200010

main83883-20800iAT210199808

83247PLATE, METER CIRCUIT

main83861-20130iAT212..5F199711-199801

main83861-20140iAT212..4FC199711-199801

main83861-20270iAT212..5F199801-199808

main83861-20280iAT212..4FC199801-199808

main83861-20390iAT211,212..5F199808

main83861-20400iAT211,212..4FC199808

main83861-20410iAT21#,CT21#,ST215..5F199608-199711

main83861-20411iAT211,212,CT21#,ST215..5F199711-199808

main83861-20420iAT21#,CT210..4FC199608-199711

main83861-20421iAT211,212..4FC199711-199808

main83861-20430iST215..5F199808

main83861-20440iST215..4FC199608-199711

main83861-20441iST215..4FC199711-199808

main83861-20442iST215..4FC199808

main83861-20450iCT211..5F199808

main83861-20460iCT211..4FC199808

main83861-20471iAT210..5F199711-199808

main83861-20481iAT210..4FC199711-199808

main83861-20740iAT212..5F199808

main83861-20750iAT212..4FC199808

main83861-20800iAT210..6F199808

main83861-20810iAT210..4FC199808

main83861-20820iCT216199808

83293COMPUTER, TOTAL COUNTER MODULE

main83293-20010iAT212199608

main83293-20020iCT21#199608-199808

main83293-20030iAT210199608

main83293-44010iAT211,ST215199608

main83293-44040iCT21#199808

83970BUZZER ASSY, REVERSE WARNING

main83970-12020iST215..4FC..SI;AT21#,CT210..4FC199608

86650GBUZZER ASSY

main86650-33020iAT21#,CT21#,ST215199608

8316120800CASE, COMBINATION METER MIRROR, NO.1

main83161-20800

8316120840CASE, COMBINATION METER MIRROR, NO.1

main83161-20840

8316126060CASE, COMBINATION METER MIRROR, NO.1

main83161-26060

8316126080CASE, COMBINATION METER MIRROR, NO.1

main83161-26080

9007600001

main90076-00001

9007600002

main90076-00002

9354014012

main93540-14012

9356755016

main93567-55016

27 parts on this diagram · 8 diagrams in section
