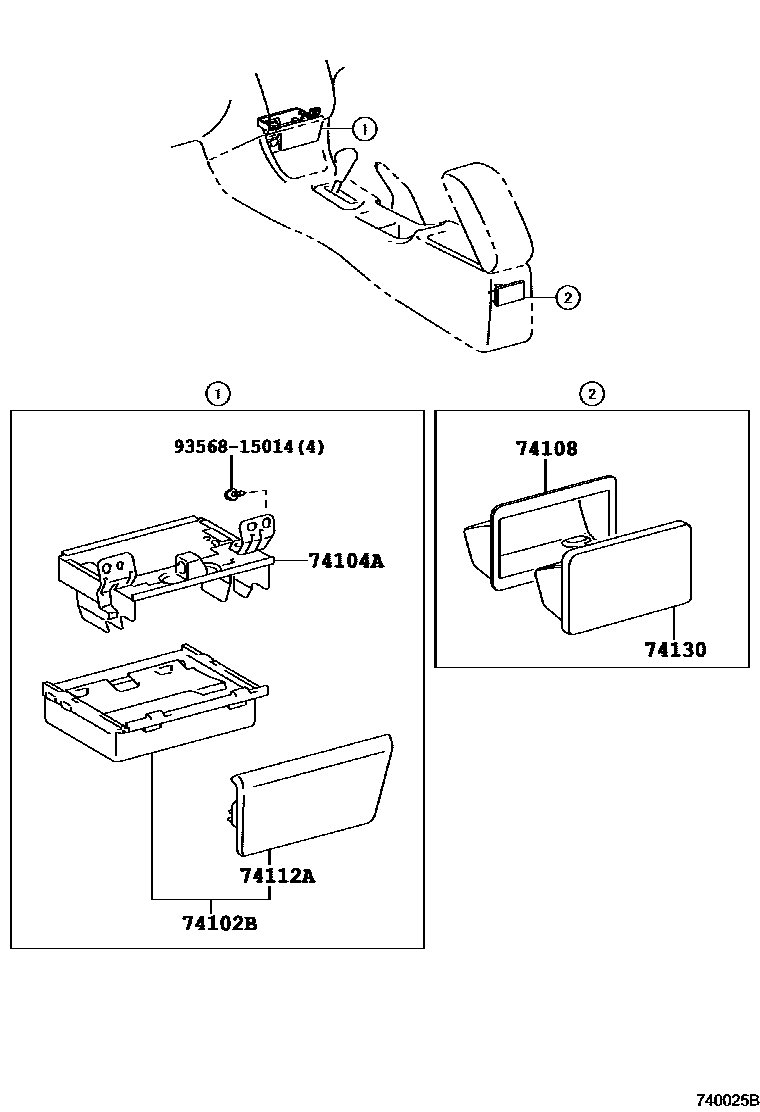

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-20260-B0iAT210; AT211,212,CT21#,ST215199808

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM13

main74102-20260-B1iAT211,212,CT21#,ST215199808

DK.CHARCOAL,TRIM12

main74102-20260-E0iAT211,212,CT21#,ST215199608-199808

ANTELOPE,TRIM4#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-20300iAT21#,CT21#,ST215199608-199803

main74104-20320iAT21#,CT21#,ST215199803

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-20090iAT21#,CT21#,ST215199608

74112ADOOR, FRONT ASH RECEPTACLE

main74112-20130-B0iAT210; AT211,212,CT21#,ST215199808

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM13

main74112-20130-B1iAT211,212,CT21#,ST215199808

DK.CHARCOAL,TRIM12

main74112-20130-E0iAT211,212,CT21#,ST215199608-199808

ANTELOPE,TRIM4#

74130RECEPTACLE ASSY, REAR ASH

main74109-20080-B4iAT211,212,CT21#,ST215199808

DK.CHARCOAL,TRIM12

main74109-20080-E0iAT211,212,CT21#,ST215199608-199808

ANTELOPE,TRIM4#

main74109-20080-P0iAT210; AT211,212,CT21#,ST215199808

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM13

9356815014

main93568-15014

6 parts on this diagram · 1 diagram in section
