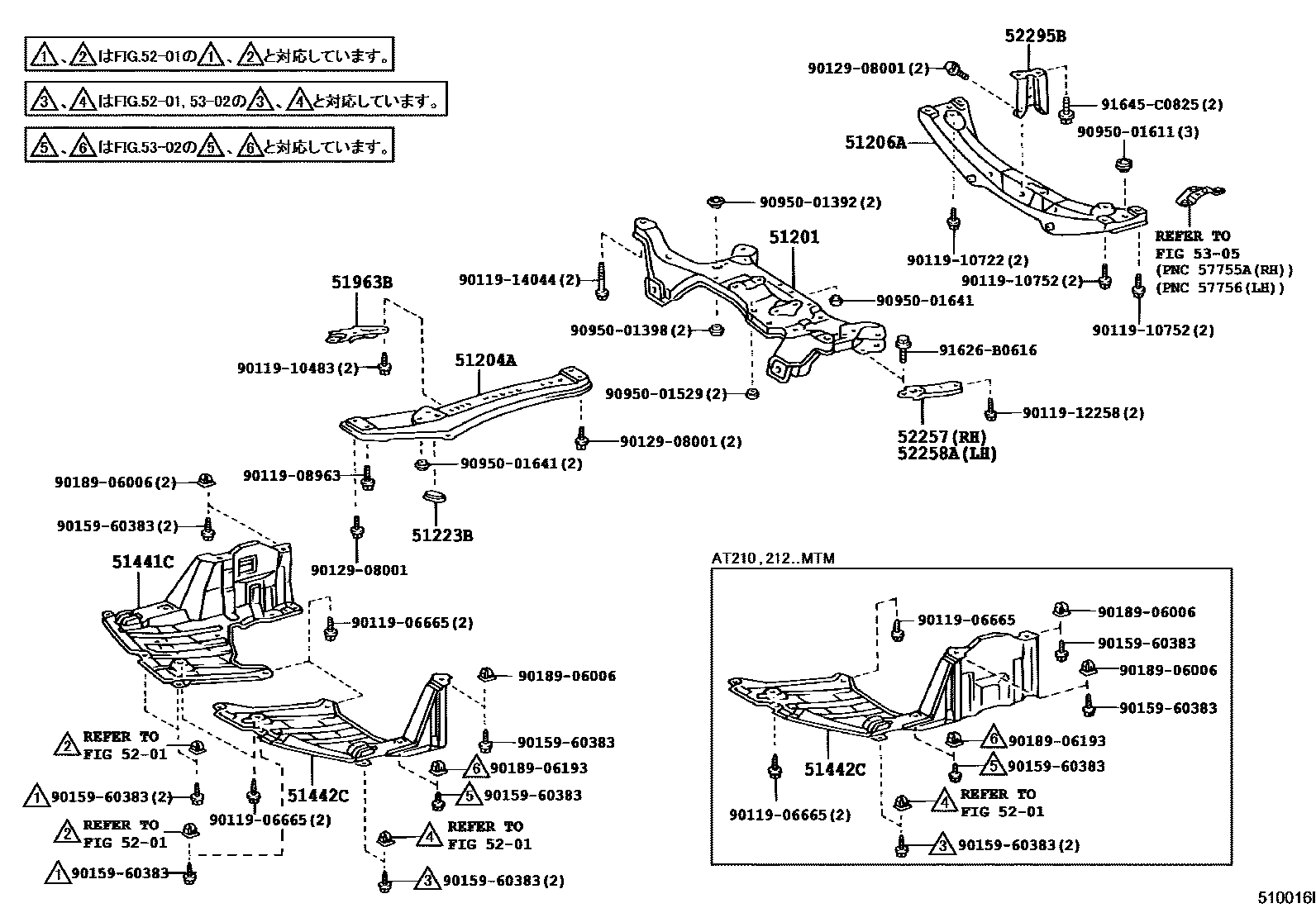

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20290iCT215,216,ST215199608

main51201-20320iAT21#,CT210,211199608

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20110iAT21#,CT210199608-199805

main51204-20111iAT21#,CT210,211199805

main51204-20121iCT215,216,ST215199608

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20060iCT215,ST215199608-199808

main51206-20080iAT21#,CT210,211199608-199912

main51206-21010iCT216,ST215199808-199907

main51206-21030iAT21#,CT211199912

main51206-21040iCT216,ST215199907

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20050iAT21#,CT21#,ST215199608

51441CCOVER, ENGINE UNDER, RH

main51441-20380iAT21#,CT21#,ST215199608

51442CCOVER, ENGINE UNDER, LH

main51442-20450iAT210,212,CT216..4FC;AT211,CT210,211,215,ST215199608

main51442-20510iAT210,212..5F199608-199805

main51442-20511iAT210,212..MTM199805

51963BHOOK, TRANSPORT, FRONT RH

main51963-20130iAT21#,CT21#,ST215199608

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-20010iAT21#,CT210,211199608

main52257-20020iCT215,216,ST215199608

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-20010iAT21#,CT210,211199608

main52258-20020iCT215,216,ST215199608

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-21010iCT216,ST215199808

main52295-32010iCT215,ST215199608-199808

52295BBRACE, REAR SUSPENSION MEMBER, RH

main52295-20030iAT21#,CT210,211199608

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9011906665

main90119-06665

9011908963

main90119-08963

9011910483

main90119-10483

9011910722

main90119-10722

9011910752

main90119-10752

9011912258

main90119-12258

9011914044

main90119-14044

9012908001

main90129-08001

9015960383

main90159-60383

9018906006

main90189-06006

9018906193

main90189-06193

9095001392

main90950-01392

9095001398

main90950-01398

9095001529

main90950-01529

9095001611

main90950-01611

9095001641

main90950-01641

91626B0616

main91626-B0616

91645C0825

main91645-C0825

31 parts on this diagram · 2 diagrams in section
