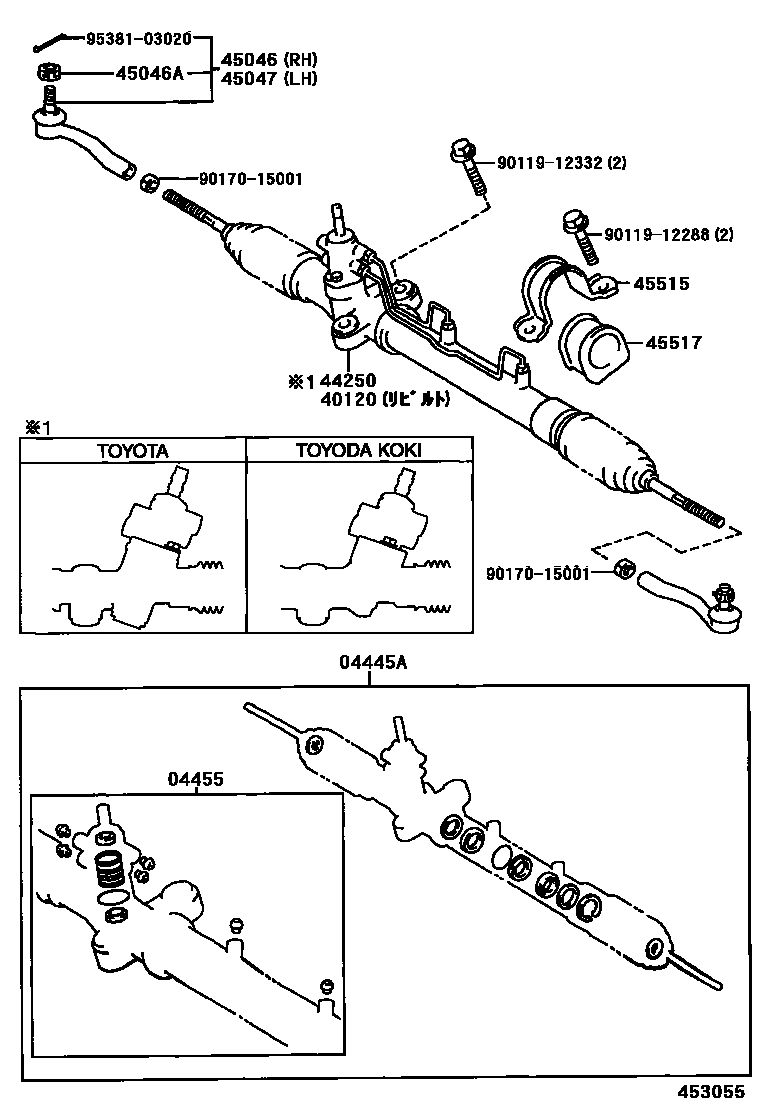

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1TOYOTA 0004 1TOYODA KOKI 0005 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20161iAT210,CT215,ST215199608-199808

main04445-20170iAT211199808-200112

main04445-20210iAT211199608-199808

main04445-20240iCT210,211199608-200112

main04445-20250iAT210199808-200112

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20080iAT211199608-199808

main04455-20120iAT211199608-200112

main04455-20130iAT211199808-200112

main04455-20160iAT210199808-200112

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-20611iAT211199608-200112

main40120-20621iAT211199608-200112

main40120-20681iAT212199608-200112

main40120-20691iCT210,211199608-200112

main40120-20732iCT215,216,ST215199608-200112

main40120-20760iAT210199608-199808

main40120-20770iAT210199808-200112

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20611iAT211199608-200112

main44250-20621iAT211199608-200112

main44250-20681iAT212199608-200112

main44250-20691iCT210,211199608-200112

main44250-20732iCT215,216,ST215199608-200112

main44250-20760iAT210199608-199808

main44250-20770iAT210199808-200112

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iCT216,ST215199808-200112

main45046-29265iCT215,ST215199608-199808

main45046-29335iAT21#,CT210,211199608-200112

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAT21#,CT21#,ST215199608

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iCT216,ST215199808-200112

main45046-29265iCT215,ST215199608-199808

main45047-29105iAT21#,CT210,211199608-200112

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20150iAT210,CT210,211199608

main45515-20160iAT211,212199608

main45515-20280iCT215,216,ST215199608

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-20130iCT215,216,ST215199608-200112

main45517-20150iAT210,CT210; AT211199608-199801

main45517-20190iAT211; AT212199608-199801

main45517-20250iAT210,CT210,211; AT211199801-200112

main45517-20260iAT211; AT212199801-200112

9011912288

main90119-12288

9011912332

main90119-12332

9017015001

main90170-15001

9538103020

main95381-03020

13 parts on this diagram · 5 diagrams in section
