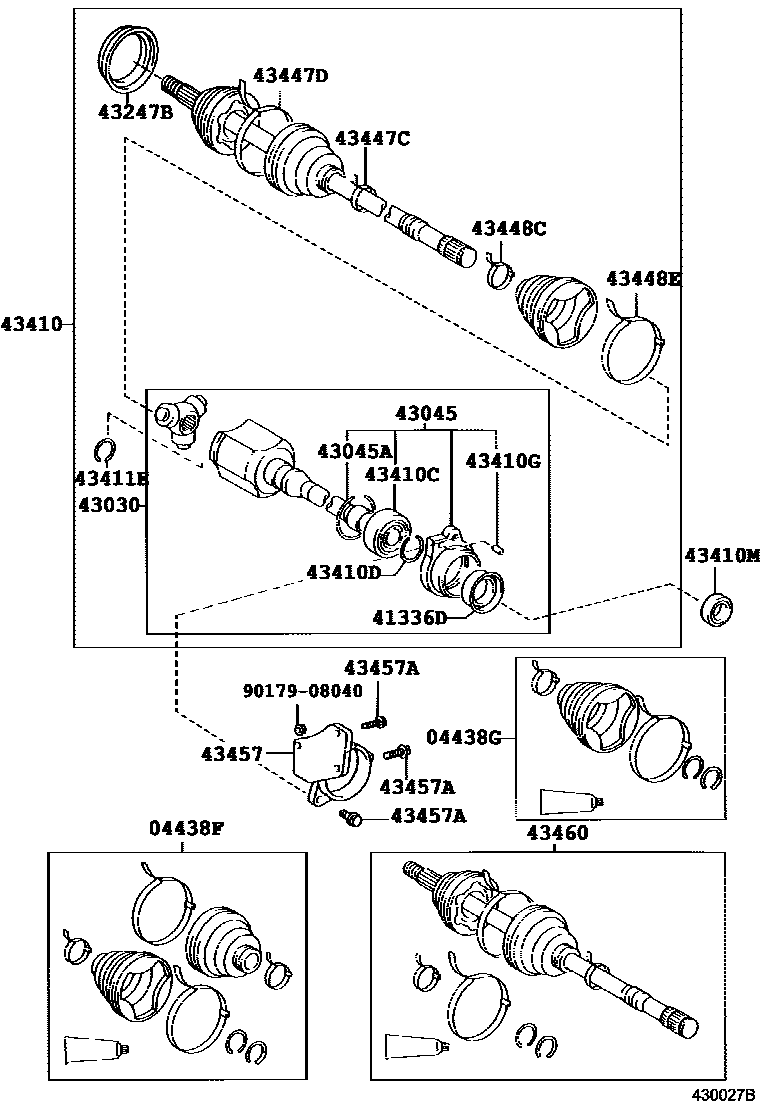

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0004 1RH 0005 1RH 0006 1RH 0007 1RH 0008 1LH 0010 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12172iAT211,212199608

sub04428-12270

main04438-12290iCT210199608-199804

sub04438-20131

main04438-12300iCT215,ST215199608-199804

sub04438-12301

main04438-12301iCT215,ST215199804-199808

sub04438-12303

main04438-12340iAT210199608

main04438-20131iCT210199804-199808

sub04438-20134

main04438-20350iCT211199808

sub04438-21061

main04438-21040iCT216,ST215199808

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12410iAT211,212199608

sub04438-12840

main04438-12420iCT210199608-199804

sub04438-20121

main04438-20121iCT210199804-199808

sub04438-12470

main04438-20340iCT211199808

sub04438-21050

main04438-21030iCT216,ST215199808

sub04438-21031

main04438-30010iAT210199608

sub04437-30070

main04438-32230iCT215,ST215199608-199804

sub04438-32231

main04438-32231iCT215,ST215199804-199808

sub04438-32290

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iAT211,212199608

main41336-20011iAT210,CT211199608-199908

sub41336-20050

main41336-20040iCT215,ST215199608-199808

main41336-20050iAT210,CT211199908

main41336-32010iCT210199608-199808

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-12020iAT210199608

main43030-20020iCT210199608-199808

main43030-20080iCT211199808

main43030-21020iCT216,ST215199808

main43403-12040iAT211,212199608

main43403-12050iCT215,ST215199608-199808

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-20010iAT210199608

main43045-20030iCT211199808

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main96153-00680iAT210,CT211199608

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iAT21#,CT21#,ST215199608

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12311iAT210199608-199705

sub43410-12312

main43410-12312iAT210199705-199709

sub43410-12313

sub90178-22001

main43410-12313iAT210199709

main43410-12350iCT210199608-199709

sub43410-12351

sub90178-22001

main43410-12351iCT210199709-199808

sub43410-12352

main43410-12410iST215199608-199709

sub43410-12411

sub90178-22001

main43410-12411iST215199709-199808

sub43410-12412

main43410-20450iAT211,212199608-199709

sub43410-20451

sub90178-22001

main43410-20451iAT211,212199709

sub43410-20452

main43410-20560iCT211199808

main43410-21031iST215199808

main43410-21041iCT216199808

main43410-32201iCT215199608-199709

sub43410-32202

sub90178-22001

main43410-32202iCT215199709-199808

sub43410-32203

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36001iAT210199608-199806

sub90363-36004

sub90363-36010

main90363-36003iCT211199808-199810

sub90363-36004

main90363-36004iAT210199806-199810

main90363-36006iCT216,ST215199808

43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)

main90520-33008iAT210199608

43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)

main90250-06003iAT210,CT211199608

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34012iAT21#..4FC199608-199907

main90311-34016iAT21#..MTM199608-200007

main90311-34023iAT21#..MTM199802-200112

main90311-35019iCT210,211..4FC199608-199907

main90311-35033iCT210,211..5F199608-200007

main90311-35045iCT211..4FC199908

main90311-35049iCT211..5F200007-200112

main90316-28003iST215..5F199808-200112

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-20065iAT210199608

main90520-22005iST215..SI;AT211,212,CT210,215199608

main90520-25034iCT21#,ST215199808

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16010iAT211,212199808

main42345-16030iCT21#,ST215199608-199808

main42345-22030iAT210199608

main90949-01078iAT211,212199608

main90949-01A65iCT21#,ST215199808

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12010iAT210199608

main42345-16020iAT211,212199608

main42345-16040iCT21#,ST215199608-199808

main90949-01080iAT211,212199808

main90949-01937iCT21#,ST215199808

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078iST215..SI;AT211,212,CT210,215199608

main90949-01108iCT21#,ST215199808

main90949-01804iAT210199608

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16040iCT21#,ST215199608-199808

main42346-22010iCT21#,ST215199808

main90949-01076iAT211,212199608

sub42345-12160

main90949-01803iAT210199608

43457BRACKET, DRIVE SHAFT BEARING

main43457-12020iAT210..4FC199608

main43457-12030iAT210..MTM199608

main43457-20060iCT211199808

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-08144iAT210199608

main90105-10198iAT210199608

main90105-10285iAT210199608

sub90105-10361

main90901-19060iCT216,ST215199808

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19307iCT215,ST215199608-199709

sub43470-19306

main43460-19655iCT210199608-199709

sub43460-19656

sub90178-22001

main43460-19656iCT210199709-199804

sub43460-19657

main43460-19657iCT210199804-199808

sub43460-19658

main43460-29167iAT211,212199608-199709

sub43460-29168

sub90178-22001

main43460-29168iAT211,212199709

sub43460-80095

main43460-29336iST215199808

sub43460-29338

main43460-29346iCT216199808

main43460-29355iCT211199808

main43470-19307iCT215,ST215199709-199808

sub43470-19308

main43470-19846iAT210199608-199705

sub43470-19847

main43470-19847iAT210199705-199709

sub43470-19848

sub90178-22001

main43470-19848iAT210199709

9017908040

main90179-08040

21 parts on this diagram · 8 diagrams in section
