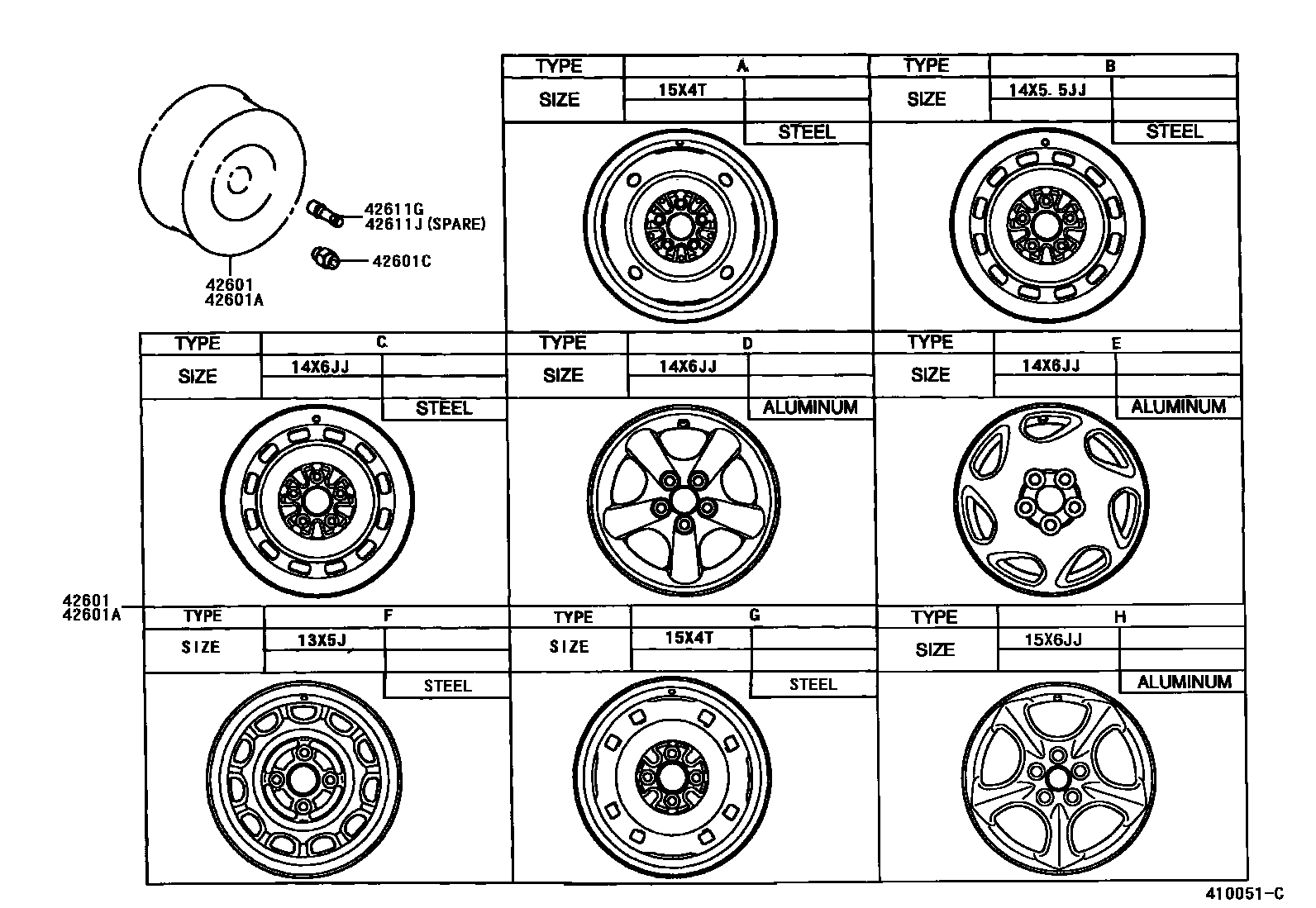

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-1A160-03×4iAT212199710

main42611-20870-01×4iAT211,212,CT21#,ST215199608

main42611-20880-01×4iAT210199608-199808

main42611-21090×4iAT210199608-199710

main42611-21120×4iAT210199710-199808

main42611-2B160×4iAT211,CT215,216,ST215199608

main42611-2B230×4iAT210199808

42601AWHEEL, DISC (FOR SPARE)

main42611-1A010iAT212199710

main42611-1A160-03iAT212199710-199808

main42611-20440iAT211,212,CT21#,ST215199906

main42611-20840iAT210199808

main42611-20870-01iAT211,212,CT21#,ST215199608

main42611-20880-01iAT210199608-199808

main42611-21090iAT210199608-199710

main42611-21120iAT210199710-199808

main42611-2B160iAT211,CT215,216,ST215199608

main42611-2B230iAT210199808

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iAT211,212,CT21#,ST215199608

main90942-01021×16iAT212199710

main90942-01033×20iAT210,211,CT215,216,ST215199608

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iAT21#,CT21#,ST215199608

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAT21#,CT21#,ST215199608

5 parts on this diagram · 4 diagrams in section
