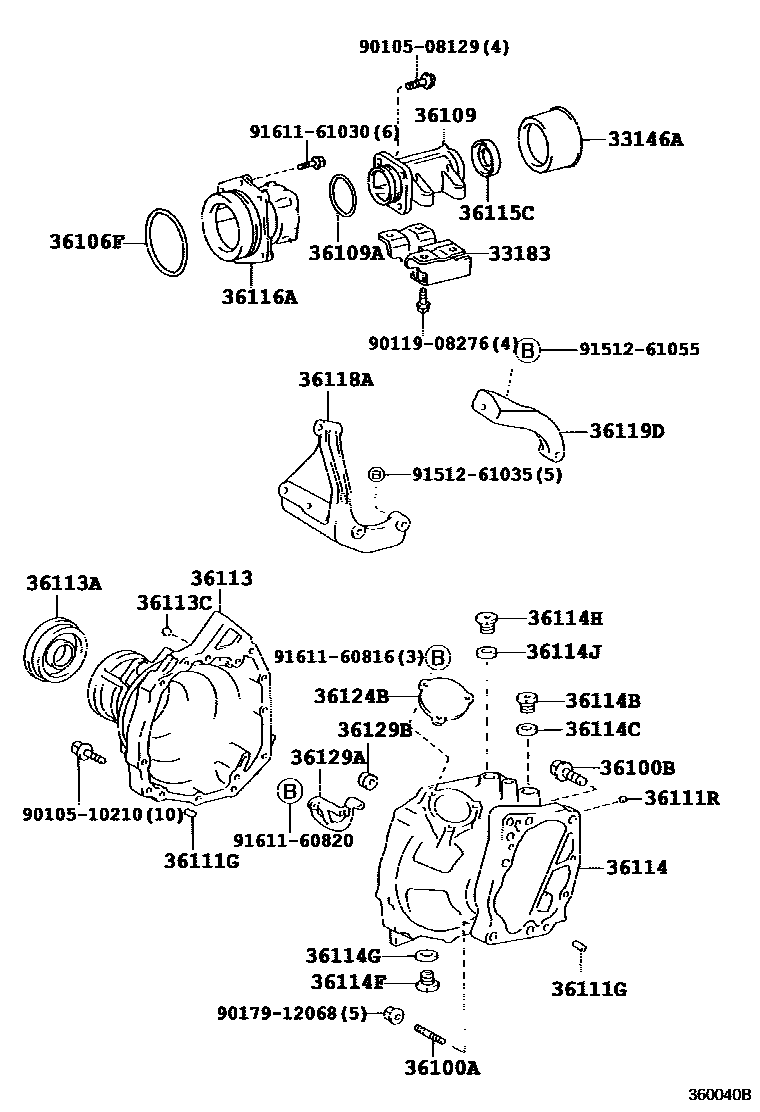

TRANSFER CASE & EXTENSION HOUSING
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)
36106FRING, O (FOR TRANSFER PINION BEARING CAGE)
36109ARING, O (FOR TRANSFER EXTENSION HOUSING)
36111RPLUG, TIGHT (FOR TRANSFER CASE)
36113ASEAL, OIL (FOR TRANSFER CASE RH)
36113CPLUG (FOR TRANSFER CASE)
36114CASE, TRANSFER, LH
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36114JGASKET, NO.2 (FOR TRANSFER CASE)
36116ACAGE, TRANSFER PINION BEARING
36118APLATE, TRANSFER STIFFENER, RH
36119DPLATE, TRANSFER STIFFENER, CENTER
36124BCOVER, TRANSFER INSPECTION HOLE
36129ATUBE, TRANSFER OIL
36129BCUSHION (FOR TRANSFER OIL TUBE)
9010508129
main90105-08129
9010510210
main90105-10210
9011908276
main90119-08276
9017912068
main90179-12068
9151261035
main91512-61035
9151261055
main91512-61055
9161160816
main91611-60816
9161160820
main91611-60820
9161161030
main91611-61030
35 parts on this diagram · 5 diagrams in section
