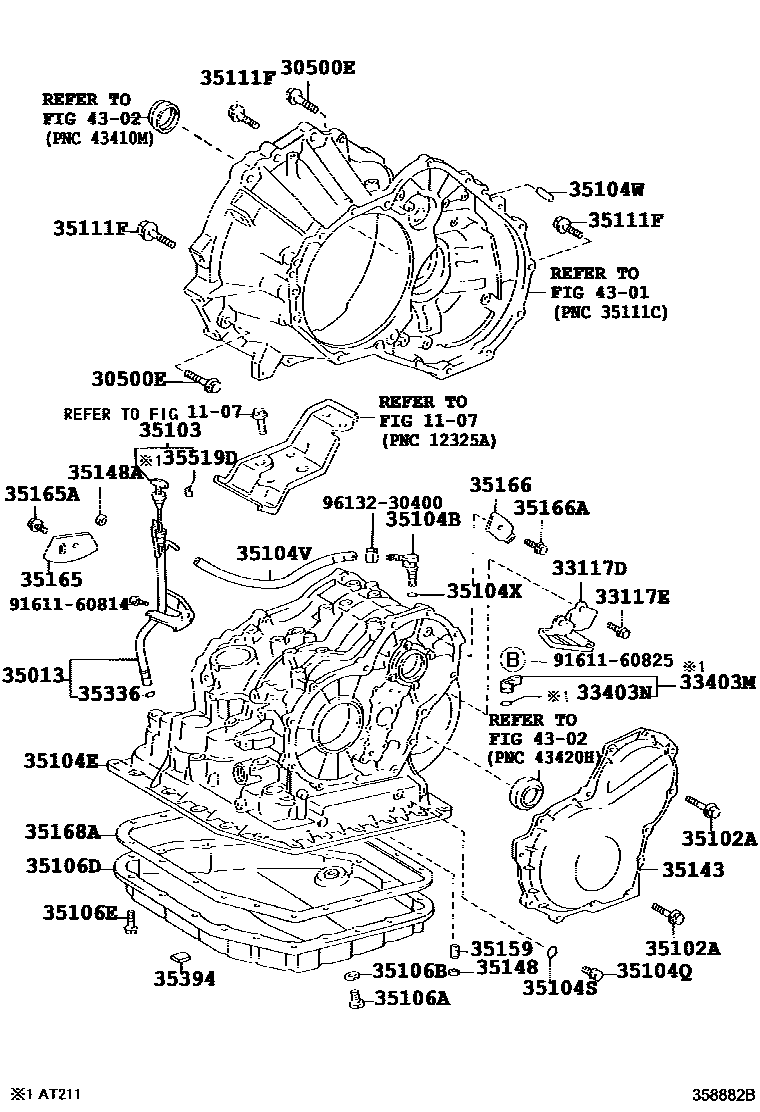

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A245E,A246E 0002 1A240L,A241L 0003 1A540H 0004 1A240L,A241E,A241F 0005 1A243F

1107

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iCT211,216..4FC;ST215..4FC..SI199608

sub91641-H0820

main90105-10077iAT21#,CT210,211,216,ST215..4FC199608

main90119-12168iAT21#..4FC199608

main91619-61245iAT21#..4FC199608

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iST215..4FC..TI;AT21#,CT210,211,216..4FC199608

main33117-32050iST215..4FC199608-199808

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040iAT21#,CT210,211,216,ST215..4FC199608

sub91641-H0820

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iCT210,211,216,ST215..4FC..TI199608

main33403-35230iAT211,212,ST215..4FC199608-199808

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018iCT210,211,216,ST215..4FC..TI199608

main96711-24030iAT211,212,ST215..4FC199608-199808

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-20641iCT210,211..4FC199608

main35013-20660iAT210,211..4FC199608-199808

main35013-20670iST215..4FC199608-199808

sub35013-20671

main35013-20700iAT212..4FC199608

main35013-20750iAT210,211..4FC199808

main35013-21040iST215..4FC199808-199906

sub35013-21060

main35013-21060iST215..4FC199906

main35013-21070iCT216199808

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-20030iCT210..4FC199608-199705

sub35102-20031

main35102-20031iCT210,211,216,ST215..4FC..TI199705

main35102-20050iAT212..4FC199608

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-06198iAT210,211..4FC199608

main90105-08065iAT212,CT210,211,216,ST215..4FC..TI199608

main90105-08068iAT212,CT210,211,216,ST215..4FC..TI199608

sub90105-08333

main91511-80625iAT210,211..4FC199608

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-20340iCT210,211..4FC199608

sub35103-21070

main35103-20370iST215..4FC199608-199808

main35103-20380iAT211..4FC199608

main35103-20400iAT210..4FC199608

main35103-20410iAT212..4FC199608

main35103-21040iST215..4FC199808

main35103-21070iCT216199808

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03101iAT212,CT210,211,216,ST215..4FC..TI199608

main90930-03146iAT210,211..4FC199608

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-12230iAT210..4FC199608

main35104-20100iAT211..4FC199608

main35104-32065iST215..4FC199608-199701

sub35104-32066

sub90105-10051

main35104-32066iST215..4FC199701-199808

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iST215..4FC199608-199808

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iST215..4FC199608-199808

35104VHOSE (FOR BREATHER PLUG)

main35121-20030iST215..4FC199608-199808

main90447-11019iAT212..4FC199608-199811

main90447-11031iAT210,211,CT210..4FC199608

main90447-11039iAT212..4FC199811

main90447-11042iCT21#,ST215..4FC199808

sub90447-11031

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10021iAT210,211..4FC199608

main90250-10232iST215..4FC199608-199808

main90250-11001iAT212,CT210,211,216,ST215..4FC..TI199608

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iST215..4FC199608-199808

main90301-06010iAT210,211..4FC199608

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iAT212,CT210,211,216,ST215..4FC..TI199608

sub90341-10011

main90341-10011iAT210,211..4FC199608

main90341-18016iST215..4FC199608-199808

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iST215..4FC..TI;AT21#,CT210,211,216..4FC199608

main90430-18008iST215..4FC199608-199808

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-12070iAT212,CT211..4FC199808-200001

main35106-12110iCT211..4FC199608-200001

sub35106-12070

main35106-12120iAT210,211..4FC199608

sub35106-12090

main35106-17020iCT216,ST215..4FC199808

main35106-32032iST215..4FC199608-199808

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iST215..4FC199608-199808

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08065iAT212,CT210,211,216,ST215..4FC..TI199608

main90105-08066iAT212,CT210,211..4FC199608

main90105-08068iAT212,CT210,211,216,ST215..4FC..TI199608

sub90105-08333

main90105-08071iAT212,CT210,211,216,ST215..4FC..TI199608

main90105-08082iCT210,211..4FC199608

main90105-08288iAT210,211..4FC199608

35143COVER, TRANSMISSION CASE, REAR

main35143-12030iAT210,211..4FC199608

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iST215..4FC199608-199808

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010iAT212,CT210,211..4FC199608

35159GASKET, BRAKE DRUM

main35159-20010iST215..4FC..TI;AT21#,CT210,211,216..4FC199608

main35159-32011iST215..4FC199608-199808

35165PLATE, TRANSMISSION CASE, NO.1

main35165-12010iAT21#..4FC199608

main35165-20010iCT210,211,216,ST215..4FC..TI199608

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iST215..4FC..TI;AT21#,CT210,211,216..4FC199608

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12010iAT212,CT210..4FC199608-199705

main35166-12020iST215..4FC..TI;AT210,211,CT210,211,216..4FC199608-199705

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049iST215..4FC..TI;AT21#,CT210,211,216..4FC199608

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iAT212,CT210,211,216,ST215..4FC..TI199608

main35168-12030iAT210,211..4FC199608

main35168-32020iST215..4FC199608-199611

sub35168-33020

main35168-33020iST215..4FC199611-199808

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAT21#,CT210,211,216,ST215..4FC199608

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iST215..4FC..TI;AT21#,CT210,211,216..4FC199608-199808

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-16040iCT216,ST215..4FC199808

main35519-20020iAT211..4FC199608-199708

sub35519-30010

main35519-20030iAT211..4FC199906

main35519-30010iAT211..4FC199708-199906

main35519-42010iST215..4FC199608-199808

4301

4302

9161160814

main91611-60814

9161160825

main91611-60825

9613230400

main96132-30400

39 parts on this diagram · 5 diagrams in section
