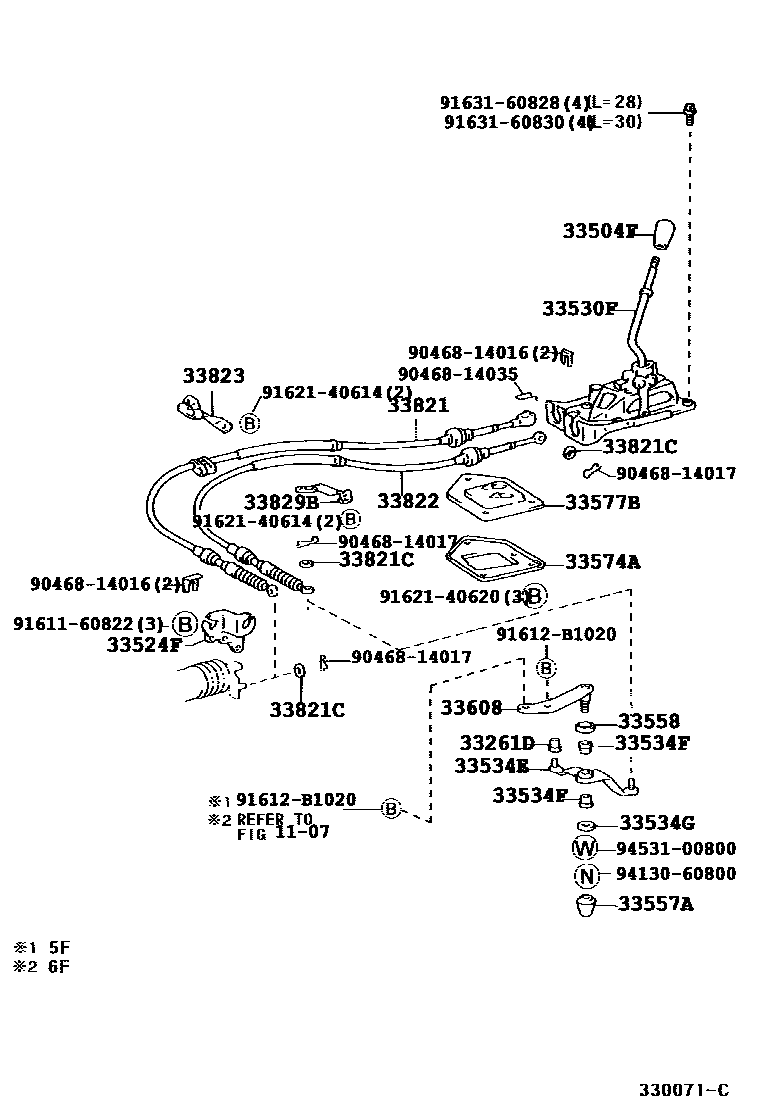

SHIFT LEVER & RETAINER

0001 1C51,C56,C57,C160 0002 1S51 0003 1E56F,E57F 0004 1S55F 0005 1 0006 1 0007 1 0008 1

1107MOUNTING

→ Go to FIG 11-07

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iAT211,212..5F199907-200112

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-C0iAT211,212,CT211,ST215..5F199808

BLACK,TRIM12,13

main33504-12220-C0iAT210..6F199808

BLACK,TRIM1#

main33504-22140-C0iAT210..5F199608-199808

BLACK,TRIM1#

main33542-20180-C0iAT210..4FC199608

BLACK,TRIM1#

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-12011iAT21#..MTM199608-200112

main33524-20010iCT215,ST215..5F199608-199808

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-20720iAT21#,CT210..5F199608-199701

main33530-20721iST215..5F..TI;AT21#,CT210,211..5F199701

main33530-20730iCT215,ST215..5F199608-199701

main33530-20731iCT215,ST215..5F199701-199808

main33530-20750iAT210..6F199808

33534ECRANK, SELECTING BELL, NO.2

main33534-10060iAT211,212..5F200111-200112

main33534-12091iCT215,ST215..5F199608-199808

main33534-12100iAT210..6F199808-199907

main33534-16051iAT21#..5F199608-200111

main33534-33010iCT210,211,ST215..5F..TI199608-200112

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022×2iAT21#,CT210,211,215,ST215..MTM199608-199907

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iAT21#,CT210,211,215,ST215..MTM199608-199907

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-32010iAT21#,CT210,211,215,ST215..MTM199608-199907

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iST215..5F..SI;AT21#,CT215..MTM199608-199907

main33558-32010iCT210,211,ST215..5F..TI199608-200112

33574ARETAINER, SHIFT CABLE GROMMET, NO.1

main33574-20380iAT21#,CT21#,ST215199608

33577BCOVER, CONTROL SHAFT HOLE

main33577-20010iAT21#,CT210,211,215,ST215..5F199608

main33577-20020iAT21#,CT210,211,216,ST215..4FC199608

main33577-20030iAT210..6F199808

33608SUPPORT SUB-ASSY, SELECTING BELLCRANK

main33608-12031iCT215,ST215..5F199608-199808

main33608-12040iAT210..6F199808-199907

main33608-16021iAT21#..5F199608-200112

main33608-33010iCT210,211,ST215..5F..TI199608-200112

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-21090iST215..5F199808

main33821-2B310iAT211,212..5F199808

main33821-2B330iCT210,211..5F199608

main33821-2B340iCT215,ST215..5F199608-199808

main33821-2B380iAT21#..5F199608-199808

main33821-2B510iAT210..6F199808

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08077×2iAT21#,CT210,211,215,ST215..MTM199608

main90201-10042iAT21#,CT210,211,215,ST215..MTM199608

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-20610iAT211,212..5F199808

main33822-20630iCT210,211..5F199608

main33822-20660iCT215,ST215..5F199608-199808

main33822-20680iAT21#..5F199608-199808

main33822-20710iAT210..6F199808

main33822-21050iST215..5F199808

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-20110iCT215,ST215..5F199608-199808

main33823-20150iAT210,211..4FC199608

main33823-20190iAT21#,CT210,211..MTM199608

main33823-20200iCT210,211,216,ST215..4FC..TI199608

main33823-20210iAT212..4FC199608

main33823-21020iST215..5F199808

main33823-32031iST215..4FC199608-199808

33829BCLAMP, TRANSMISSION CONTROL CABLE

main33829-20010iAT211,212,CT210,211..4FC199608-200010

main33829-20020iAT210..4FC; AT211,212,CT210,211..4FC199608

main33829-20030iST215..4FC199608-199808

main33829-20040iST215..4FC199608-199808

main33829-20050iST215..4FC199608-199808

main33829-20060iST215..5F..SI;AT21#,CT210,211,215..MTM199608

main33829-21040iCT216,ST215..4FC199808

main33829-21050iCT216,ST215..4FC199808

main33829-21060iCT216,ST215..4FC199808

main33829-21070iST215..5F199808

main33829-21081iST215..5F199808

main33829-21090iAT211,212,CT211..4FC200010

9046814016

main90468-14016

9046814017

main90468-14017

9046814035

main90468-14035

9161160822

main91611-60822

91612B1020

main91612-B1020

9162140614

main91621-40614

9162140620

main91621-40620

9163160828

main91631-60828

9163160830

main91631-60830

9413060800

main94130-60800

9453100800

main94531-00800

29 parts on this diagram · 8 diagrams in section
