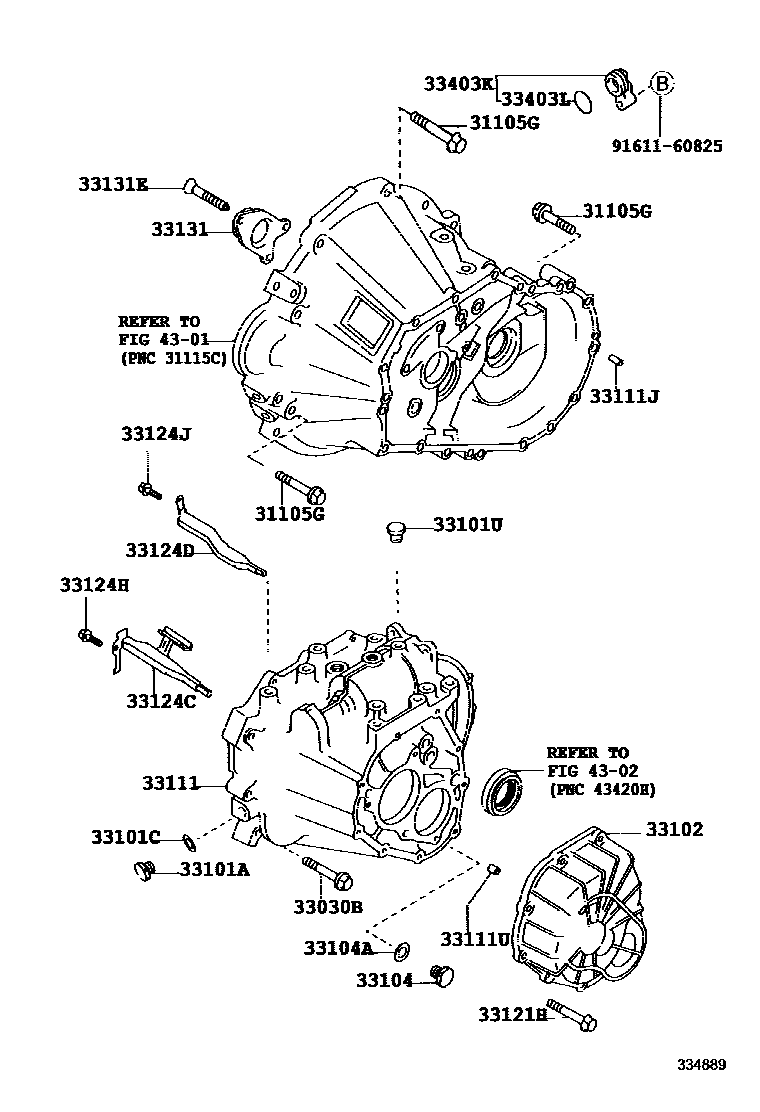

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C51,C56,C57 0002 1C160 0003 1S51 0004 1S55F 0005 1E56F,E57F

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iST215..5F200009

sub91641-H0820

main90105-10077iAT21#,CT210,211,215,ST215..MTM199608

main90119-12042iAT21#..MTM199608

main90119-12168×2iCT210,211,215,ST215..5F199608

main91651-41022iCT215,ST215..5F199608-199808

main91651-61025iST215..5F199808-199910

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042×17iCT210,211,ST215..5F..TI199608-200112

sub90105-08430

main90105-08064×13iAT21#..5F199608-200112

sub90105-08353

main90105-08086×3iAT21#..5F199608-200112

main90105-08126×17iCT215,ST215..5F199608-199808

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAT21#,CT210,211..5F199608-200112

main90341-18033iCT215,ST215..5F199608-199808

main90341-18038iAT210..6F199808-200112

main90341-18054iST215..5F199808-200112

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAT21#,CT210,211,215,ST215..MTM199608-200112

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03133iST215..5F..TI;AT21#,CT210,211..5F199608-200112

main90930-03148iCT215,ST215..5F199608-199808

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iAT21#..5F199608-200112

main33102-12041iCT215,ST215..5F199608-199808

sub33102-12042

main33102-12050iAT210..6F199808-200006

main33102-20050iAT210..6F200006-200112

main33102-33020iCT210,211,ST215..5F..TI199608-200112

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAT21#,CT210,211,215,ST215..MTM199608-200112

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAT21#,CT210,211,215,ST215..MTM199608-200112

33111CASE, MANUAL TRANSMISSION

main33101-12170iCT215,ST215..5F199608-199808

sub33101-12171

main33111-12220iAT210..6F199808-200112

main33111-16061iAT21#..5F199608-199704

sub90109-12073

main33111-16062iAT21#..5F199704-199908

sub90109-18005

main33111-16063iAT211,212..5F199908-200112

sub33111-16064

sub90101-08166

sub90201-08049

main33111-32030iCT210,211,ST215..5F..TI199704-200112

main33111-33031iCT210..5F199608-199704

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4iCT210,211,ST215..5F..TI199608-200112

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iAT21#..MTM199608-200112

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08273×8iCT210,211,ST215..5F..TI199608-200112

main90119-08630×10iCT215,ST215..5F199608-199808

main91611-60835×9iAT21#..MTM199608-200112

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10012iAT210..6F199808-200112

main33124-12012iAT21#..5F199608-199908

main33124-12030iCT215,ST215..5F199608-199808

main33124-20050iAT211,212..5F199908-200112

main33124-33010iCT210,211,ST215..5F..TI199608-200112

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iAT21#..5F199608-200112

main33124-12041iCT215,ST215..5F199608-199808

main33124-12050iAT210..6F199808-200112

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iCT215,ST215..5F199608-199808

sub90119-08830

main91611-G0820iAT21#..MTM199608-200112

main91651-60618iCT210,211,ST215..5F..TI199608-200112

33124JBOLT, W/WASHER

main91611-G0820iAT21#..MTM199608-200112

33131RETAINER, BEARING, FRONT(MTM)

main33131-12080iAT21#..MTM199608-200112

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028×3iAT21#..MTM199608-200112

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230iCT210,211,ST215..5F..TI199608

main33403-20240iCT215,ST215..5F199608-199808

main33403-35230iAT210..6F;AT211,212..5F199608

33403LRING, O

main96711-24018iCT210,211,ST215..5F..TI199608

main96711-24030iAT210..6F;ST215..5F..SI;AT211,212,CT215..5F199608

4301

4302

9161160825

main91611-60825

23 parts on this diagram · 5 diagrams in section
