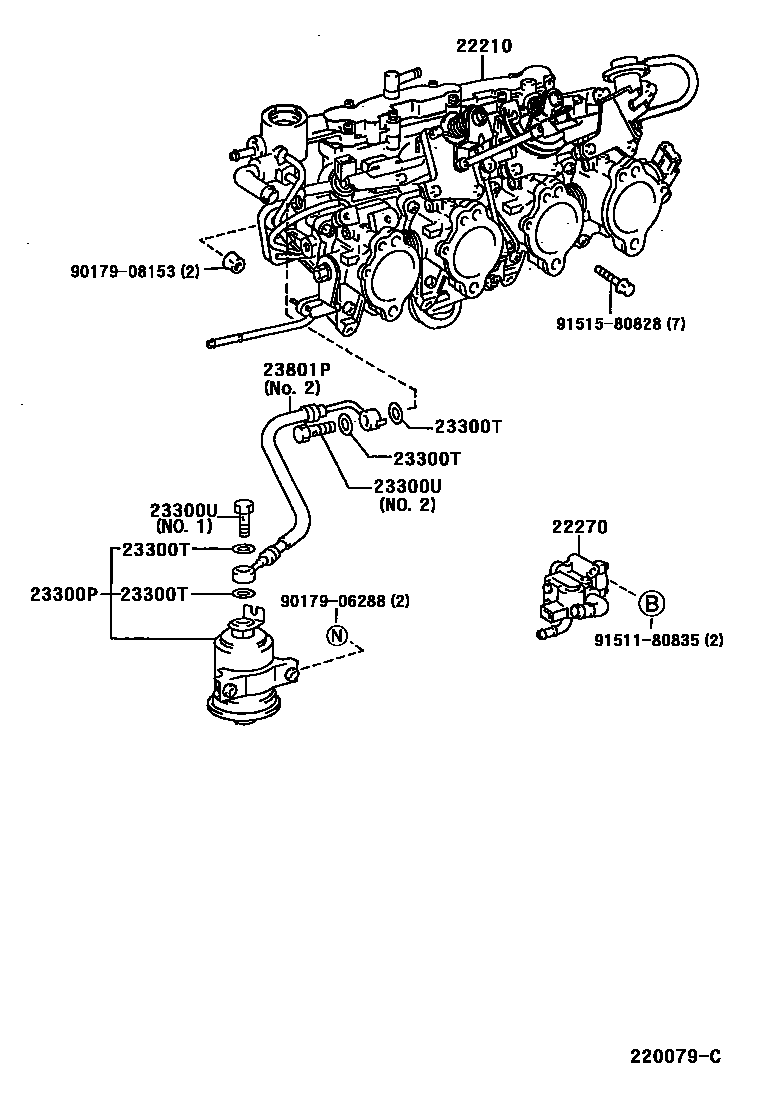

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

22210BODY ASSY, THROTTLE

main22210-15090i5AFE..AT212199608-200112

main22210-16761i4AGE..AT210199608-199808

main22210-16762i4AGE..AT210199808-199810

sub22210-16763

main22210-16763i4AGE..AT210199810-200112

main22210-16870i7AFE..AT211199608-200112

main22210-7A610i3SFE..ST215199608

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-16060i5AFE,7AFE..AT211,212199608

main22270-16070i4AGE..AT210199608

main22270-74350i3SFE..ST215199608

23300PFILTER, FUEL(FOR EFI)

main23300-19465i3SFE..ST215199608

23300TGASKET(FOR FUEL FILTER)

main90430-12026i5AFE,7AFE..AT211,212199608-199808

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i4AGE..AT210199709

main96341-11200i4AGE..AT210199608-199808

main96341-11200i4AGE..AT210199709-199808

23801PPIPE SUB-ASSY, FUEL, NO.1

main23271-16230i4AGE..AT210199608

main23801-16070i4AGE..AT210199608

9017906288

main90179-06288

9017908153

main90179-08153

9151180835

main91511-80835

9151580828

main91515-80828

10 parts on this diagram · 6 diagrams in section
